Overview

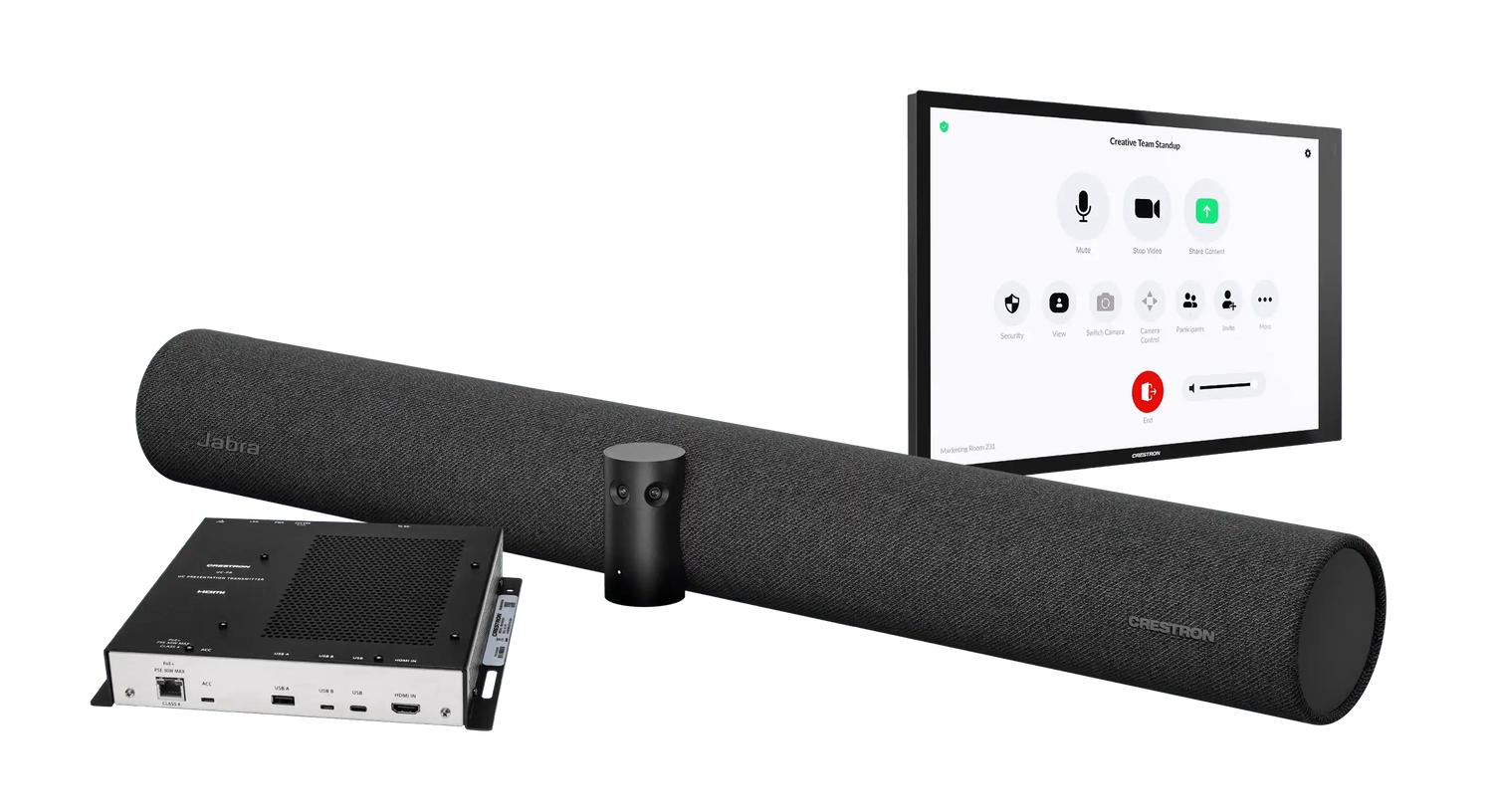

The Crestron Flex UC-BX31-Z is an advanced tabletop conferencing system designed for small room video conferencing using Zoom Rooms™ software. It allows for a single or dual video display setup (displays not included) and comes with a convenient tabletop touch screen, Jabra® PanaCast 50 video bar, UC bracket assembly, UC presentation transmitter, PoE injector, and cables.
Native Zoom Rooms™ Software Experience
The UC-BX31-Z system comes equipped with Zoom Rooms conferencing software, allowing users to effortlessly connect through audio and video for seamless collaboration and content sharing.
Intuitive User Interface
The Crestron® tabletop touch screen (TS-1070) is an excellent conferencing control device for meeting rooms, huddle spaces, and executive offices. It boasts a large 10.1 in. (257 mm) capacitive touch screen display, providing a superior user experience. Additionally, the touch screen gives you the option to control room lighting, shades, thermostats, and other equipment for added convenience.
Simplified Deployment

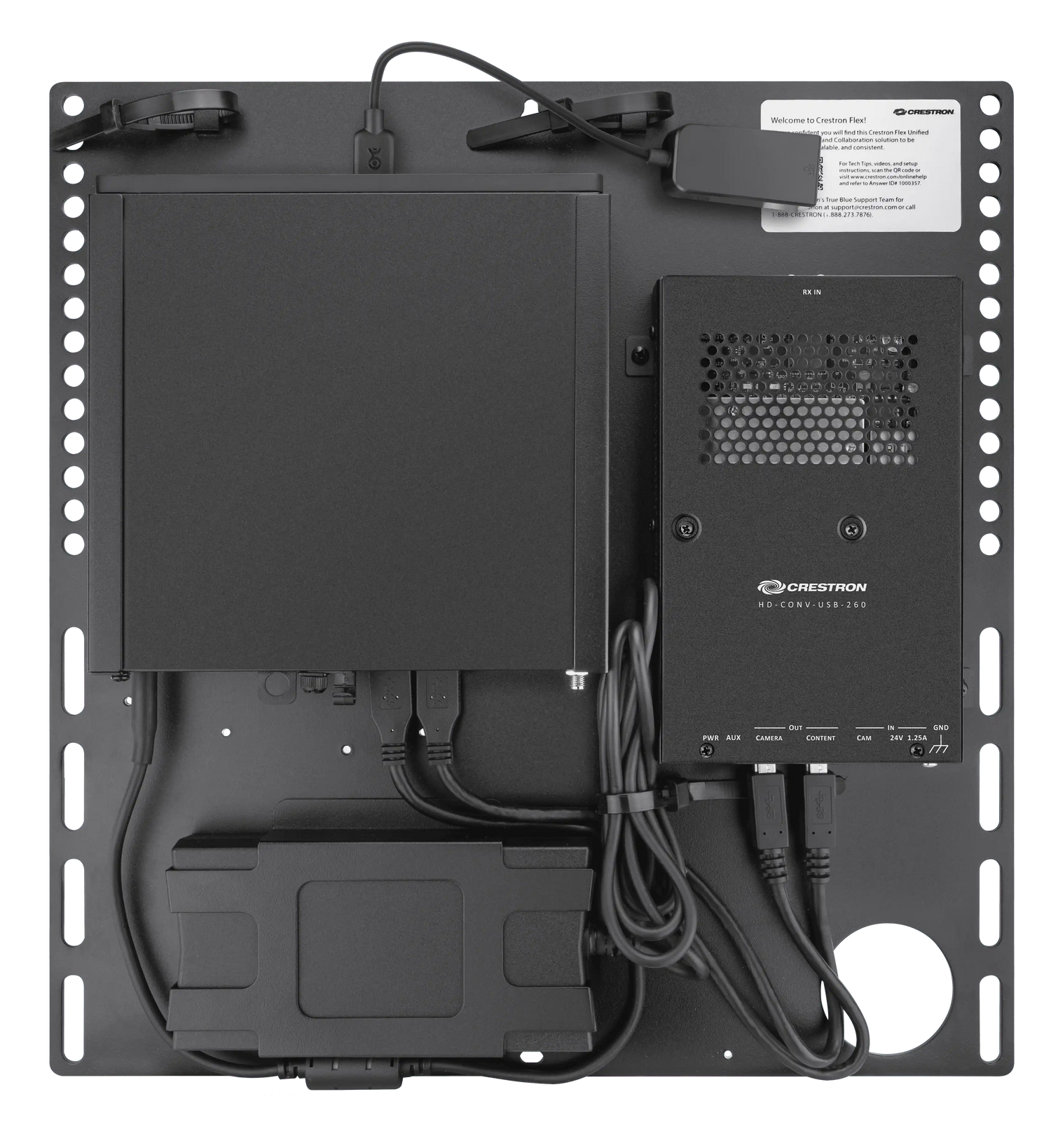

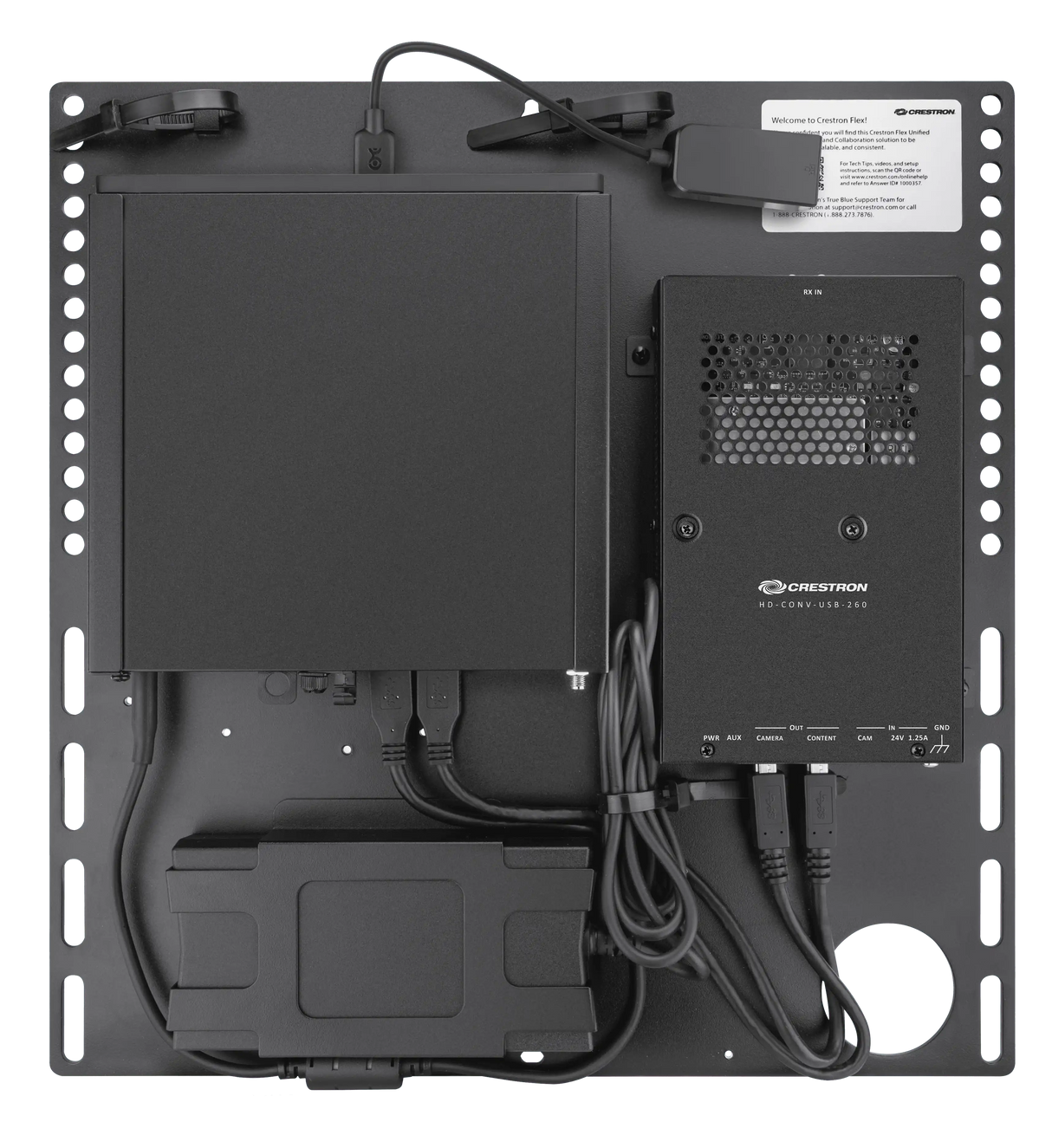

The UC Bracket Assembly provides preassembled components on one ready-to-mount bracket to simplify installation. The assembly can be mounted on a wall, or it can be attached to the rear of the display device.
High‑Definition Video Conferencing with Impressive Audio

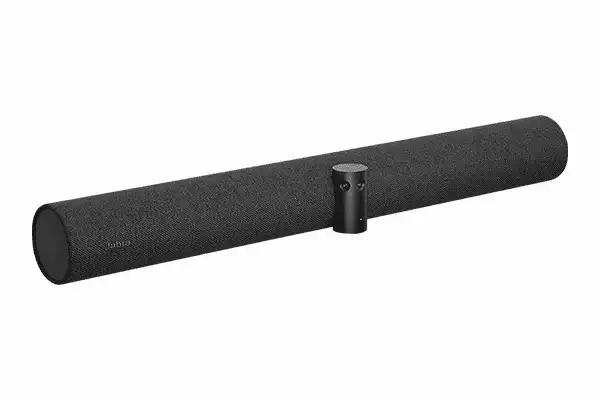

High-quality speakers and microphones deliver exceptional full-duplex performance from the Jabra PanaCast 50 intelligent video bar (UC‑SB‑P50). Three built-in conferencing cameras capture the room in panoramic 4K resolution with a seamless 180° horizontal field of view.
Bring Your Own Device (BYOD)
Conference room visitors can connect their laptop to the Crestron Flex system to use their own UC conference platform. The UC Presentation Transmitter (UC‑PR) switches to the connected laptop's UC platform and returns to the native platform when disconnected.3 For a list of BYOD tested devices on the UC‑PR, refer to OLH Article 1000889.
Enterprise‑Grade Security
Crestron Flex is an enterprise‑grade solution that is ideally equipped for mass deployment throughout any sized corporate, university, medical, military, or government facility.
Easy Provisioning and Device Management

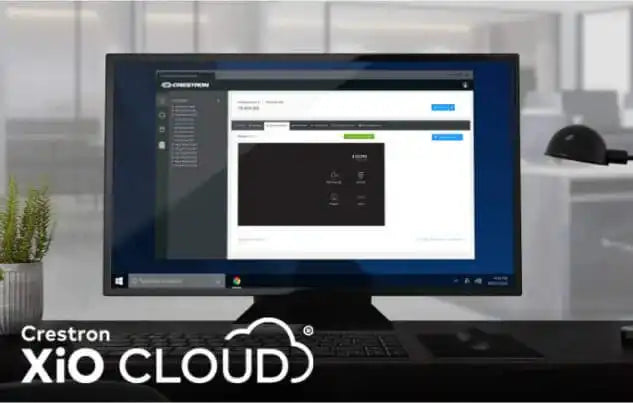

The XiO Cloud service is an IoT cloud based provisioning service (available separately) that enables installers and IT managers to easily deploy and manage thousands of devices. The XiO Cloud service provides system alerts, network management and provisioning, and the pairing of a control device to the system’s UC Engine. System updates are controlled by Windows® software update.
Key Features
- Front‑of‑room video conferencing solution for Zoom Rooms™ software
- Present, call, conference, and collaborate using your own device's UC conference platform (BYOD) or the native Zoom Rooms™ platform
- Native Zoom Rooms™ touch screen UI provides a consistent, simple user experience with one‑touch meeting joins
- Complete kit contains a 10.1 in. wall mount touch screen, Jabra® PanaCast 50 video bar, UC bracket assembly, UC presentation transmitter, and PoE injector— just add a display and mount
- Easy to specify and install — no custom design, programming, or software installation required
- Network management and provisioning and system alerts through the XiO Cloud® service
- Premium‑level support with Crestron Flex Care (optional)
- Enterprise-grade security - connects and communicates securely over any enterprise or SMB network
- Supports single or dual video displays (not included)
Specifications
| Included Components | |
| TSW‑1070‑B‑S | 10.1 in. (257 mm) wall mount touch screen, black |
| UC‑BRKT‑250‑P‑Z‑ASSY | UC Bracket Assembly comprised of:
|
| UC‑PR | UC Presentation Transmitter |
| UC‑SB‑P50 | Jabra® PanaCast 50 Video Bar |
| Wall Mount Touch Screen | |
| Touch Screen | 10.1 in. (257 mm) diagonal capacitive multi-touch TFT active matrix color LCD, 1920 x 1200 pixels |
| UI | Zoom Rooms UI plus optional Crestron Smart Graphics® room control UI2 |
| Ethernet | 100 Mbps, auto switching, auto negotiating, auto discovery, full/half duplex, TCP/IP, UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), IEEE 802.1X, SNMP, IPv4 or IPv6, Active Directory® service authentication, HTTPS web browser setup, XiO Cloud® client, IEEE 802.3at compliant |
| Power over Ethernet | IEEE 802.3at Type 2 compliant PoE+ PD (Powered Device); Normally requests 15 W from an 802.3at Type 2 PSE with LLDP advanced power management; With room scheduling and USB enabled, requests 18 W from an 802.3at Type 2 PSE with LLDP; Requests 30 W (PoE+ Class 4) from an 802.3at Type 2 PSE without LLDP; Requests 15.4 W (PoE Class 0) from an 802.3af (or 802.3at Type 1) PSE |
| Power | Powered via PoE passthrough on the UC-PR |
| Construction | Plastic, smooth black finish, edge-to-edge glass with black surround |
| Dimensions | Height: 5.87 in. (149 mm) Width: 9.46 in. (240 mm) Depth: 2.01 in. (51 mm) Dimensions do not include mounting bracket or add-on accessories |
| Weight | 1.61 lb (730 g) |
| Jabra® PanaCast 50 Video Bar | |
| Speakers | (4) speakers, stereo; 2 in. (50 mm) woofers; 2 x 3/4 in. (50 x 20 mm) tweeters; 80 Hz to 20 kHz frequency response; Automatic speaker detection |
| Microphone | (8) microphone beamforming array; -37 dBFS microphone sensitivity; 100 Hz to 8 kHz microphone frequency range; Suitable for rooms up to 15 x 15 ft (4.5 x 4.5 m) |
|
NOTE: Microphone pickup range may vary in rooms with highly reflective infrastructure (e.g., glass walls, metal furniture, open ceilings, etc.) or above average ambient noise. |
|
| Camera Optics | (3) cameras; 13 Megapixels |
| Camera Field of View | 180º horizontal, 54º vertical |
| Autozoom | Automatic digital zoom dynamically frames people within 11 ft (3.5 m) |
| Camera Resolution | 3840 x 1080 @ 30 fps |
| Power | From external power pack; Input: 100‑240VAC, 50/60 Hz; Output: 5A @ 12V |
| Enclosure | Black speaker and camera housing, rear air vents, integrated adjustable mounting bracket |
| Mounting | Wall mount using integrated mounting bracket; Optional table mount or VESA® compliant screen mount (both sold separately) |
| Dimensions | Height: 3.1 in. (90 mm) Width: 25.60 in. (650 mm) Depth: 4.90 in. (125 mm) |
| Weight | 4.85 lb (2.2 kg) |
| For more information on the Jabra PanaCast 50 video bar, refer to jabra.com/panacast50. | |
| UC Bracket Assembly | |
| UC Engine | Mini PC, Intel Core® processor with Windows® 10 IoT Edition OS and 100/1000 Mbps Ethernet connectivity |
| UC Client | Zoom Rooms software |
| Management Client | XiO Cloud Service |
| Content Ingest | HDMI input via CAT5 to USB 3.0 converter (model HD‑CONV‑USB‑250) |
|
NOTE: Use only DigitalMedia™ Ultra cable between the conference and content ingest devices. The maximum supported cable length is 300 ft. |
|
| Display Output | Single or dual display support1 |
| Display Output Resolution | 1080p |
| Power | UC Engine: 65 W via external 100‑240VAC, 50/60 Hz adapter (included); HD‑CONV‑USB‑250: 24VDC via external 100‑240VAC, 50/60 Hz power pack (included) |
| Construction | Metal mounting bracket, black, preassembled with UC Engine and CAT5 to USB 3.0 content ingest device (HD‑CONV‑USB‑250) |
| Mounting | Surface wall mount behind the display device, or attach to the rear of the display device via the bolts attaching the display to a VESA® compliant display mount; Bracket includes mounting holes on both side edges, spaced 100, 200, and 300 mm vertically, to allow for attachment to either side of the display mounting plate |
| Weight | 6.64 lb (3 kg) |
| UC Presentation Transmitter (UC‑PR)3 | |
| Video Input Signal Types | HDMI, DisplayPort™ 1.2 via USB-C® port |
| Video Output Signal Types | HDMI over CAT5 |
| Resolution | 1080p |
| Video Content Protection | HDCP 1.4 and HDCP 2.2 |
| Audio Input Signal Types | HDMI, DisplayPort 1.2 via USB-C port |
| Audio Output Signal Types | HDMI over CAT5 |
| Communications | Ethernet: 100 Mbps, auto-switching, auto negotiating, auto-discovery HDMI over CAT5: HDCP, Ethernet HDMI: HDCP USB: USB 2.0 and USB 3.0 |
| Connectors |
LAN PoE: (1) 8-pin RJ-45 connector; |
| Indicators | PWR: (1) Green LED, indicates operating power supplied via power supply Ethernet: (2) LEDs on To RX port; Green indicates Ethernet link status; Amber indicates Ethernet activity |
| Power Supply | 24VDC, 6A, 100‑240VAC |
| Device Charging | Up to 60 W charging for devices connected via USB-C port |
| Construction | Metal, black finish, integral mounting flanges; Vented top, front, bottom, and sides |
| Mounting | Surface mount for mounting under table; Attaches to a single rack rail |
| Dimensions | Height: 1.58 in. (40 mm) Width: 9.25 in. (235 mm) Depth: 8.20 in. (208 mm) |
