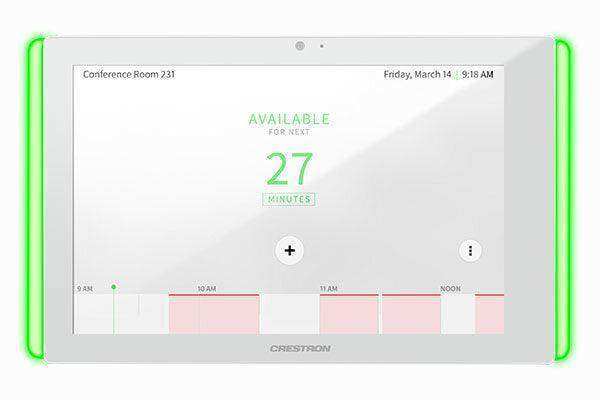

Crestron TSS-1070-W-S-LB KIT 10.1 in. Room Scheduling Touch Screen, White Smooth, includes one TSW-1070-LB-W-S light bar

Product Overview

The Crestron TSS-1070-W-S-LB KIT is a complete enterprise room scheduling solution that bundles the TSS-1070-W-S 10.1 in. touch screen with one TSW-1070-LB-W-S room availability light bar in a single procurement SKU. Finished in white smooth to match light-colored wall plates and surrounds, the panel mounts at the entrance to a meeting room or huddle space and integrates directly with popular calendaring services. The included light bar provides a 180-degree visual indication of room status, while the panel itself is powered over Ethernet and managed through the XiO Cloud service.

Product Description

The TSS-1070-W-S-LB KIT pairs a purpose-built scheduling touch screen with its matching white smooth light bar so installers receive both the door-mount panel and the hallway-visible status indicator as one line item. The 10.1 in. TFT active matrix display runs at 1920 x 1200 WUXGA resolution with 400 nits brightness and projected capacitive five-point multitouch. Running the Crestron Scheduling app, the panel integrates with Crestron Fusion software, Microsoft Exchange Server and Office 365, Google Calendar and G Suite, CollegeNET 25Live, and Ad Astra software. The included TSW-1070-LB-W-S light bar illuminates green when a room is available and red when reserved, with custom color mixing available. Connectivity is provided through a single Ethernet connection with PoE+ power, plus Wi-Fi for deployments without structured cabling, and dual USB 2.0 host ports for the light bar or hallway sign accessory. Enterprise-grade security features include 802.1X authentication, TLS encryption, HTTPS, and Active Directory service integration. A built-in Bluetooth beacon and proximity sensor support touchless interactions, and the panel checks nightly for app updates. For specifications not listed here, refer to the Crestron data sheet.

Key Features

• Complete Scheduling Kit — Bundles the TSS-1070-W-S touch screen with one TSW-1070-LB-W-S white smooth room availability light bar in a single SKU.
• 10.1 in. Capacitive Display — 1920 x 1200 WUXGA resolution, 400 nits brightness, 1000:1 contrast, and five-point projected capacitive multitouch.
• 180-Degree Availability Light Bar — The included light bar shows green for available and red for reserved, visible across a hallway from a wide viewing angle.
• Broad Scheduling Integration — Works with Crestron Fusion, Microsoft Exchange and Office 365, Google Calendar and G Suite, CollegeNET 25Live, and Ad Astra software.
• PoE+ Powered — IEEE 802.3at Type 2 PoE+ powers the panel and the USB-connected light bar over a single Ethernet run.
• Wi-Fi Option — IEEE 802.11a/b/g/n/ac wireless connectivity for spaces without available Ethernet cabling.
• Enterprise Security — 802.1X authentication, TLS, HTTPS, SNMP, and Active Directory service integration.
• XiO Cloud Management — Cloud-based provisioning, monitoring, and firmware management across an entire enterprise.
• Proximity and Bluetooth — Built-in proximity sensor wakes the screen and a Bluetooth beacon supports the Crestron mobile apps.

Typical Applications

• Corporate conference rooms and huddle spaces requiring door-mounted scheduling.
• Higher education classrooms and lecture halls using CollegeNET 25Live or Ad Astra.
• Enterprise campuses standardizing on Microsoft Exchange or Google Calendar room booking.
• Facilities needing hallway-visible room availability indication via the included light bar.

Technical Specifications

Frequently Asked Questions

What does the kit include?
The TSS-1070-W-S-LB KIT includes the TSS-1070-W-S 10.1 in. scheduling touch screen and one TSW-1070-LB-W-S white smooth room availability light bar.

What power does it require?
The panel is powered over Ethernet, and an IEEE 802.3at Type 2 PoE+ source is required because the light bar is connected via USB.

Which scheduling platforms are supported?
The Crestron Scheduling app integrates with Crestron Fusion, Microsoft Exchange and Office 365, Google Calendar and G Suite, CollegeNET 25Live, and Ad Astra software.

Can it connect over Wi-Fi?
Yes. The panel supports IEEE 802.11a/b/g/n/ac Wi-Fi for installations without available Ethernet cabling.

What is the warranty?
Crestron provides a 3-year limited warranty. For assistance with specification, integration, or ordering, Contact Creation Networks.
