Crestron TS-770R-B 7 in. Tabletop Touch Screen, Crestron Home™ OS Version, Black

Product Overview

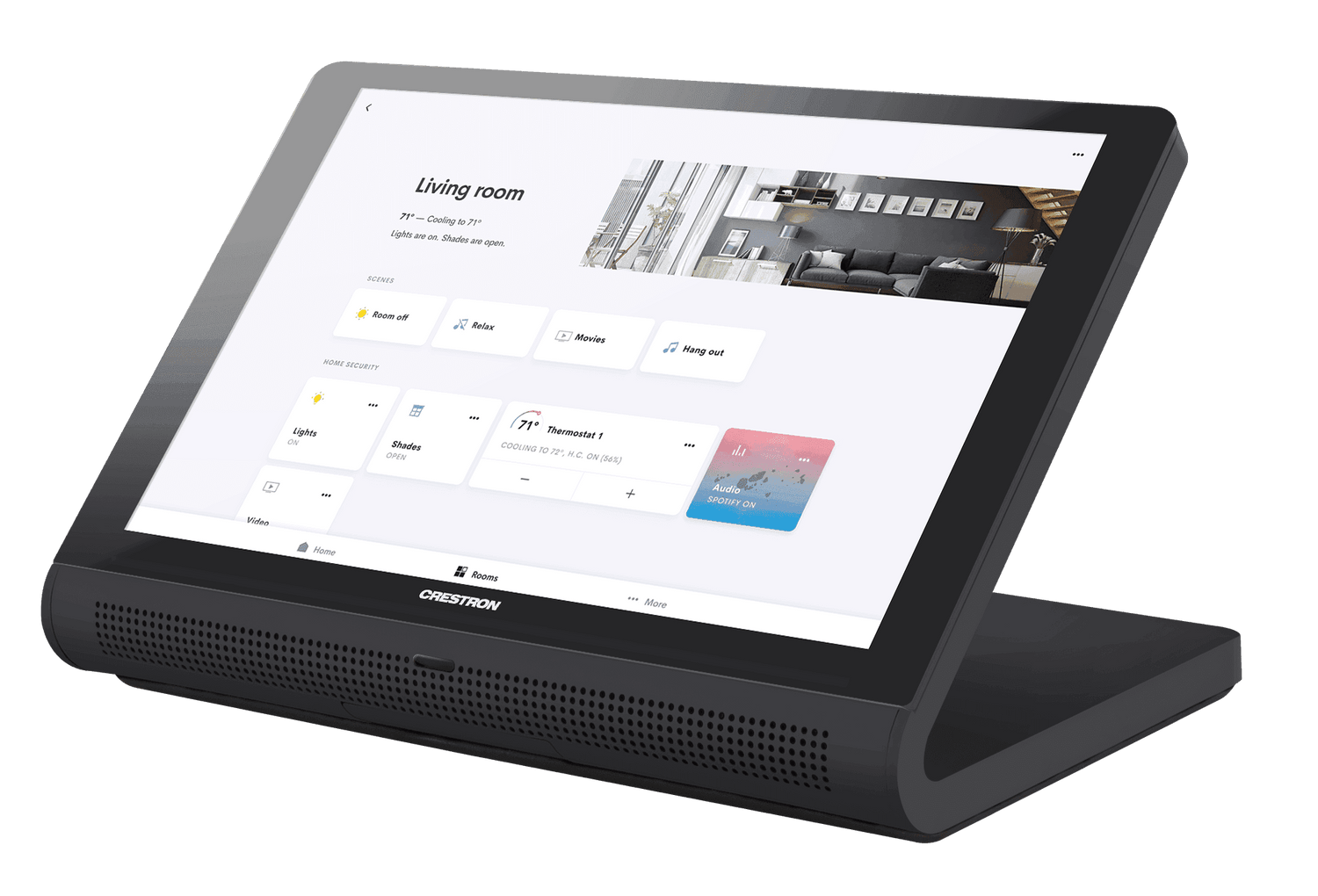

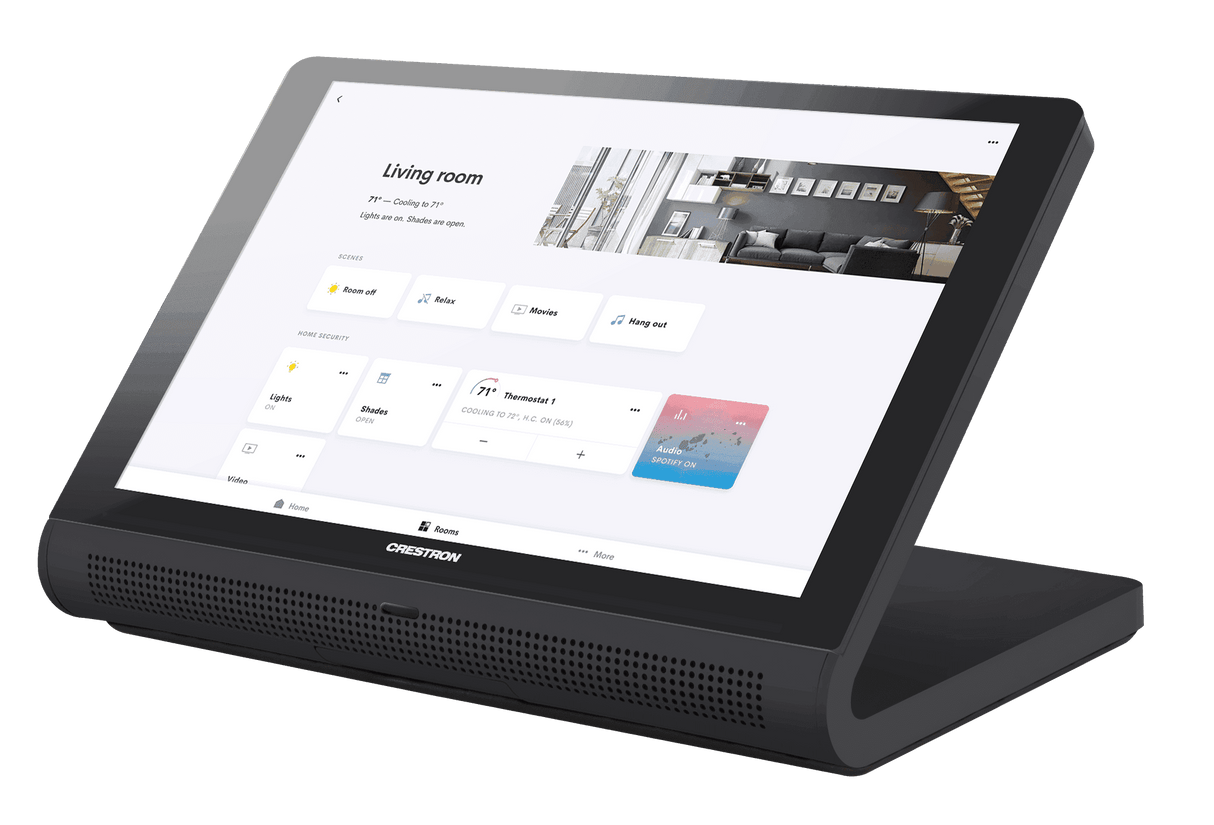

The Crestron TS-770R-B is the Crestron Home OS version of the TS-770 7 in. tabletop touch screen, finished in black. It runs the native Crestron Home app to control lighting, climate, shades, audio, video, and security from a single tabletop interface. The 7 in. capacitive display, voice recognition, Wi-Fi, and PoE+ power make it a flexible controller for connected homes. The TS-770R-B is designed for residential installations built on the Crestron Home platform.

Product Description

The TS-770R-B provides a 7 in. (178 mm) 1280x800 WXGA active-matrix display with projected capacitive 5-point multitouch and automatic brightness control. As the Crestron Home OS version, it runs the native Crestron Home app, giving homeowners direct control over scenes, lighting, shades, climate, multiroom audio and video, and security. Built-in voice recognition allows spoken commands, and the integrated microphone, speakers, and Rava SIP intercom add two-way audio and communication. The panel includes 802.11a/b/g/n/ac Wi-Fi, a Crestron Bluetooth beacon for the Crestron ONE mobile app, and a wired 100BASE-TX PoE+ Ethernet connection, so a single network cable supplies both power and data. A built-in H.265/H.264 streaming decoder displays a single scalable video window for viewing camera feeds and other sources. The panel shares the TS-770 hardware platform; the standard control-system Crestron TS-770-B-S tabletop touch screen is available for programmed commercial systems.

Key Features

• Crestron Home OS version — Runs the native Crestron Home app for residential automation.
• 7 in. capacitive display — 1280x800 WXGA active-matrix LCD with 5-point multitouch and auto brightness.
• Whole-home control — Manages lighting, climate, shades, audio, video, and security from one screen.
• Voice recognition — Lets users issue spoken commands to control devices and scenes.
• Built-in audio and intercom — Includes a microphone, speakers, and Rava SIP intercom for two-way communication.
• Wi-Fi and Bluetooth — Provides 802.11ac Wi-Fi and a Crestron Bluetooth beacon for the Crestron ONE mobile app.
• Single-cable PoE+ power — Draws operating power and network over one IEEE 802.3at Type 2 Ethernet connection.
• Streaming video — Built-in H.265/H.264 decoder displays a single scalable streaming video window.
• Black smooth finish — Edge-to-edge glass with a black surround for a clean tabletop appearance.

Typical Applications

• Crestron Home residential automation systems.
• Living rooms, kitchens, and home offices.
• Primary suites and media rooms.
• Smart home control of lighting, climate, and shades.
• Home intercom and camera monitoring.

Technical Specifications

Competitor Comparison

Frequently Asked Questions

What is the difference between the TS-770R-B and the standard TS-770? The TS-770R-B is the Crestron Home OS version, running the native Crestron Home app for residential automation rather than a custom-programmed control-system project.

Does it require a Crestron Home processor? Yes. It is designed to operate as part of a Crestron Home system with a compatible Crestron Home processor.

How is it powered? It is powered over the network using IEEE 802.3at Type 2 PoE+, so no local power supply is required.

Does it support voice control? Yes. Built-in voice recognition lets users issue spoken commands (internet connection required).

Is a white version available? Yes. The TS-770R-W offers the same Crestron Home OS configuration in a white finish.

What warranty applies? The TS-770R-B is covered by the Crestron 3-year limited warranty. For Crestron Home design support, Contact Creation Networks.
