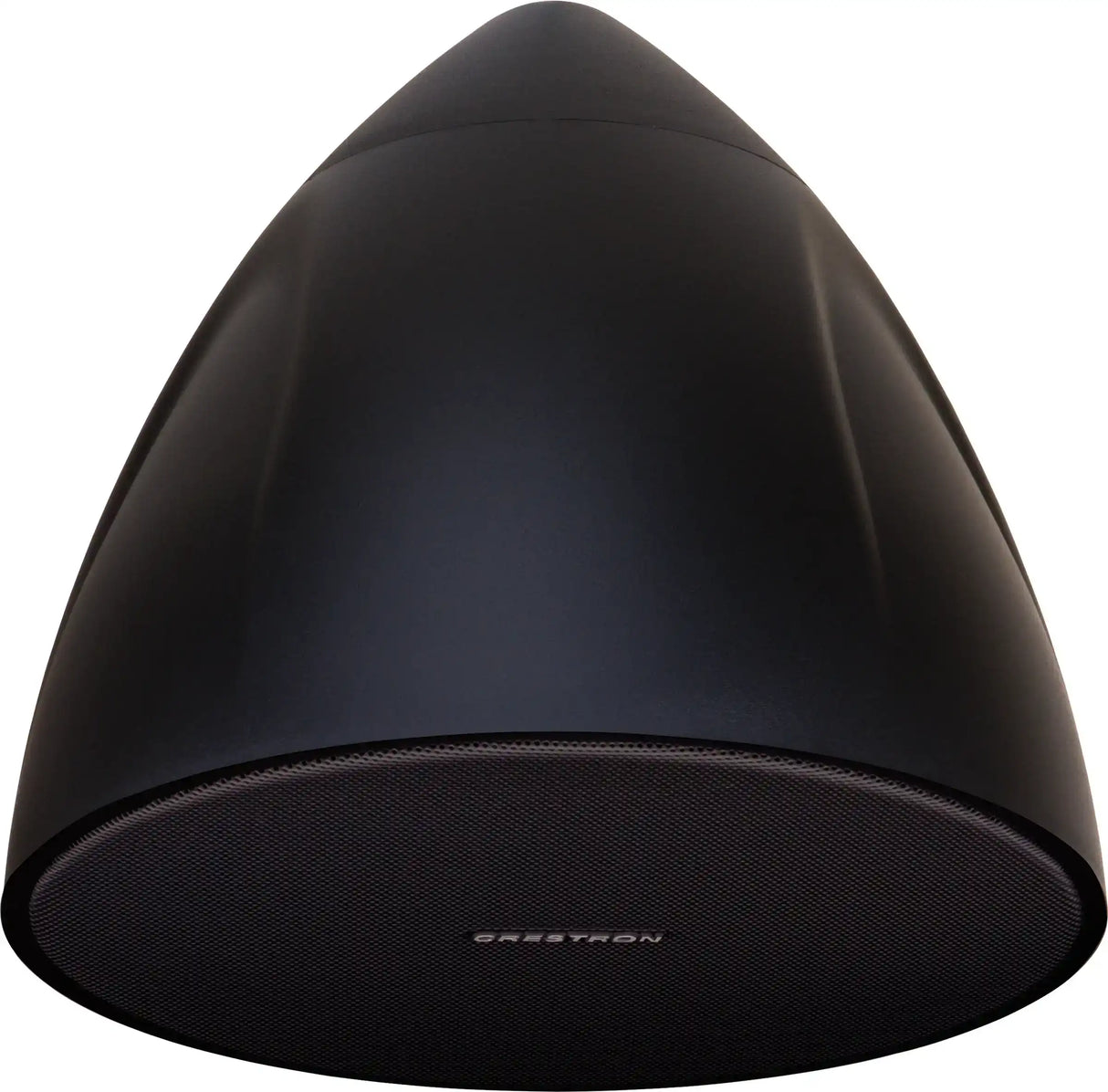

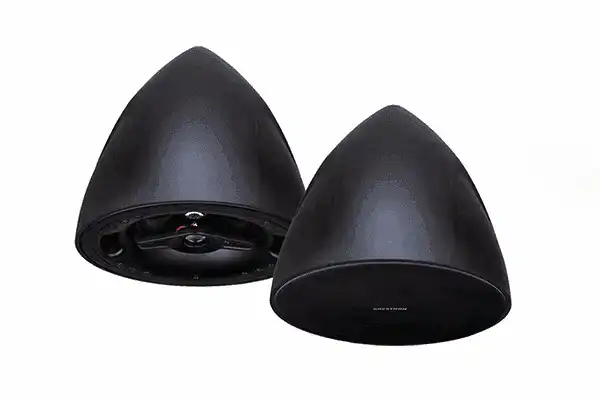

Crestron SAROS PD4T-B-T – Saros 4-Inch 2-Way Pendant Speaker, Black Textured

Product Overview

The Crestron Saros PD4T-B-T is a compact 2-way commercial pendant speaker featuring a 4-inch polypropylene woofer and a horn-loaded 3/4-inch titanium dome tweeter, designed for suspension in open-ceiling commercial environments requiring smaller speaker coverage zones or tighter speaker spacing than the 6.5-inch Saros PD6T. A built-in 30W multi-tap transformer supports 70V and 100V constant-voltage distributed audio systems; 8Ω Lo-Z operation handles up to 100W program power. Weather-resistant construction, magnetically attached grille with safety tether, and included wire rope hanger assembly make it a complete commercial pendant speaker solution for restaurants, retail environments, open offices, houses of worship, and covered outdoor entertainment spaces. Sold individually.

Product Description

Pendant speaker selection in commercial distributed audio design depends on room geometry, ceiling height, required coverage radius per speaker, and SPL requirements. The Saros PD4T-B-T addresses the smaller end of this range: its 4-inch woofer and 100° coverage pattern suit tighter speaker spacing requirements in lower-ceiling open areas, retail corridors, restaurant sections, and breakout spaces where a 6.5-inch pendant would be over-specified and over-spaced for the coverage zone. The horn-loaded titanium dome tweeter delivers the controlled high-frequency dispersion and extended frequency range — down to 65Hz — needed for full-range background music and voice paging in commercial constant-voltage distributed audio systems. At 30W transformer capacity, the PD4T-B-T draws a smaller fraction of the amplifier’s output per speaker than the PD6T, enabling more speakers per amplifier zone in high-density coverage applications. Weather-resistant construction with a weather boot on the wiring connection extends the application to covered outdoor patios, entertainment venues, and pool areas where indoor-only pendant speakers would fail. The 10-foot wire rope with Gripple self-locking grip enables tool-free suspension height adjustment during installation.

Key Features

• 4-Inch 2-Way Design: Polypropylene woofer with horn-loaded titanium dome tweeter delivers full-range frequency response from 65Hz to 20kHz — suited for commercial background music, voice paging, and light foreground music applications in tighter-spaced pendant coverage configurations.
• Built-In 30W 70V/100V Multi-Tap Transformer: Integrated constant-voltage transformer enables direct wiring into 70V or 100V distributed speaker systems — no external tap boxes required. Tap selection via screwdriver-accessible control behind the magnetic grille.
• 100W Program Power at 8Ω Lo-Z: Handles Lo-Z direct-drive amplification for single-zone or small multi-speaker installations where a constant-voltage system is not used.
• 100° Coverage Pattern: Wide 100° nominal coverage angle provides even horizontal dispersion suited to open-ceiling commercial spaces with varied ceiling heights and room geometries.
• Weather-Resistant Construction: Glass fiber reinforced ABS housing with weather boot on wiring connections suitable for semi-enclosed outdoor environments including covered patios and entertainment venues.
• Frameless Magnetic Grille with Safety Tether: Magnetically attached steel grille eliminates visible screws; included safety tether prevents grille from becoming a falling hazard in occupied commercial spaces.
• Wire Rope Hanger Assembly Included: 10 ft (3m) wire rope with snap hook and Gripple self-locking grip for tool-free suspension height adjustment from ceiling trusses and structural framing.
• Sold Individually: Priced per speaker for precise zone quantity specification without pair or package minimums.

Typical Applications

• Restaurant sections and dining areas with open truss ceilings requiring tighter pendant speaker spacing for even background music coverage
• Retail corridors and point-of-sale areas with lower open ceilings requiring compact pendant speaker distribution
• Open-plan office breakout areas and collaboration zones with exposed structural ceilings and 70V/100V background music systems
• Houses of worship lobby, narthex, and overflow areas with open ceilings requiring pendant fill speakers in distributed audio systems
• Covered outdoor patios, entertainment terraces, and pool decks requiring weather-resistant pendant audio coverage
• Healthcare waiting areas and corridors with open ceiling structures and distributed background music systems
• Convention center pre-function areas and exhibition halls with truss-hung pendant arrays for broad-area audio coverage

Technical Specifications

Competitor comparison: not applicable for this product.

Frequently Asked Questions

What is the difference between the Saros PD4T-B-T and PD6T-B-T?
The PD4T uses a 4-inch woofer with a 30W transformer and handles 100W program at 8Ω — suited for smaller coverage zones, tighter speaker spacing, and lower-ceiling open areas. The PD6T uses a 6.5-inch woofer with a 60W transformer and handles 125W program — suited for larger coverage zones and higher-output applications. Contact Creation Networks for speaker selection guidance based on your room geometry and SPL requirements.

How is the 70V/100V tap wattage selected?

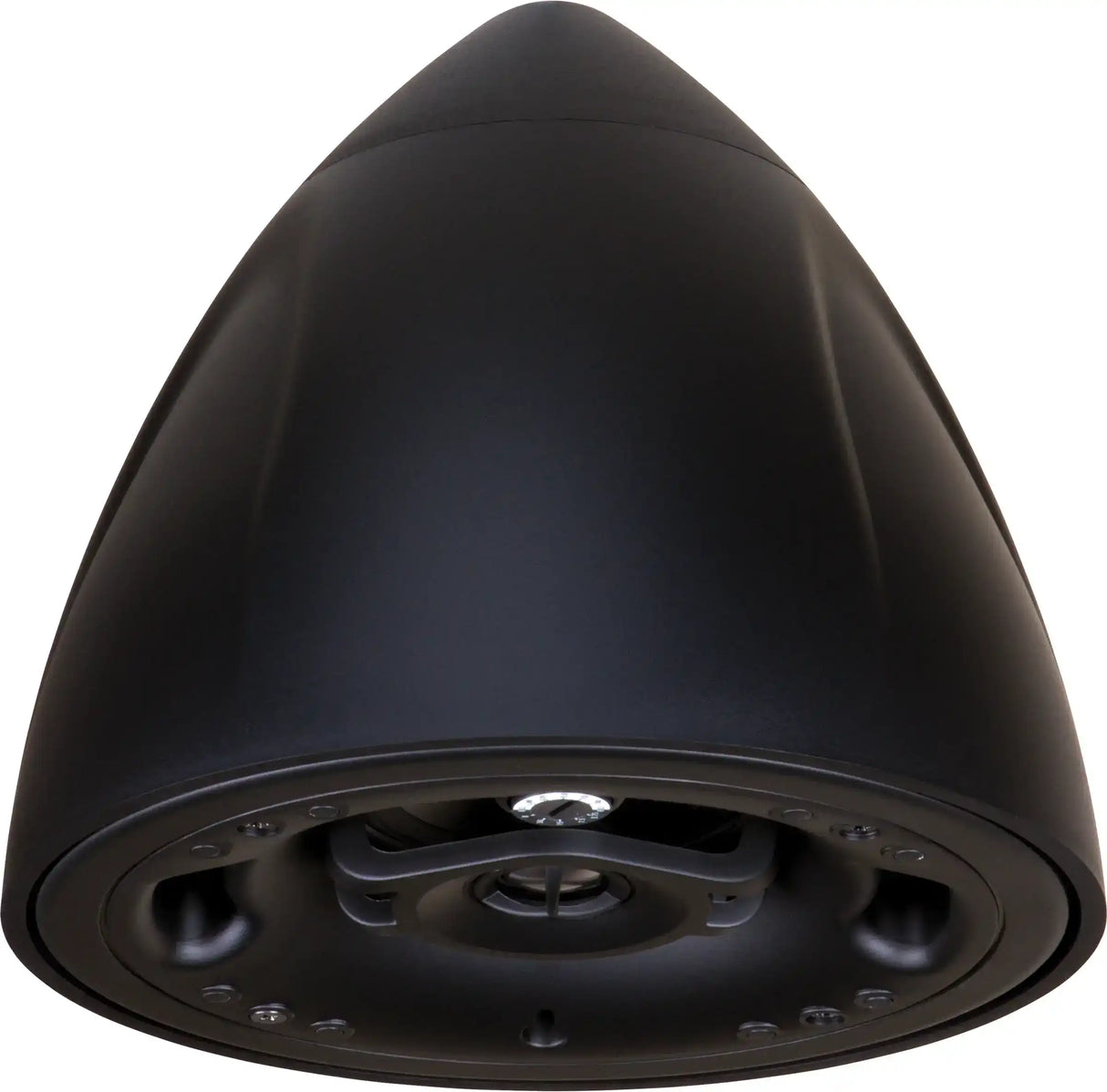

The transformer tap is set via a screwdriver-accessible control located on the speaker baffle behind the magnetic grille. Setting the tap at installation controls how much power the speaker draws from the amplifier output, enabling per-speaker volume balancing within the distributed zone.

Is the PD4T-B-T suitable for outdoor use?
The Saros PD4T-B-T is weather-resistant and suitable for semi-enclosed outdoor environments such as covered patios, entertainment venues, and pool areas. It is not rated for direct rain exposure or fully exposed outdoor installation.

What amplifier is recommended for a 70V zone using PD4T-B-T speakers?
For 70V/100V distributed audio systems, the PD4T-B-T is compatible with Crestron AMP-8150, AMP-X300, and AMP-X50MP amplifiers in Hi-Z mode. Contact Creation Networks for amplifier load calculations and complete distributed audio system design.

What is the warranty on the Crestron Saros PD4T-B-T?
Crestron provides a standard 3-year limited warranty on Saros speakers. Contact Creation Networks for warranty service details.
