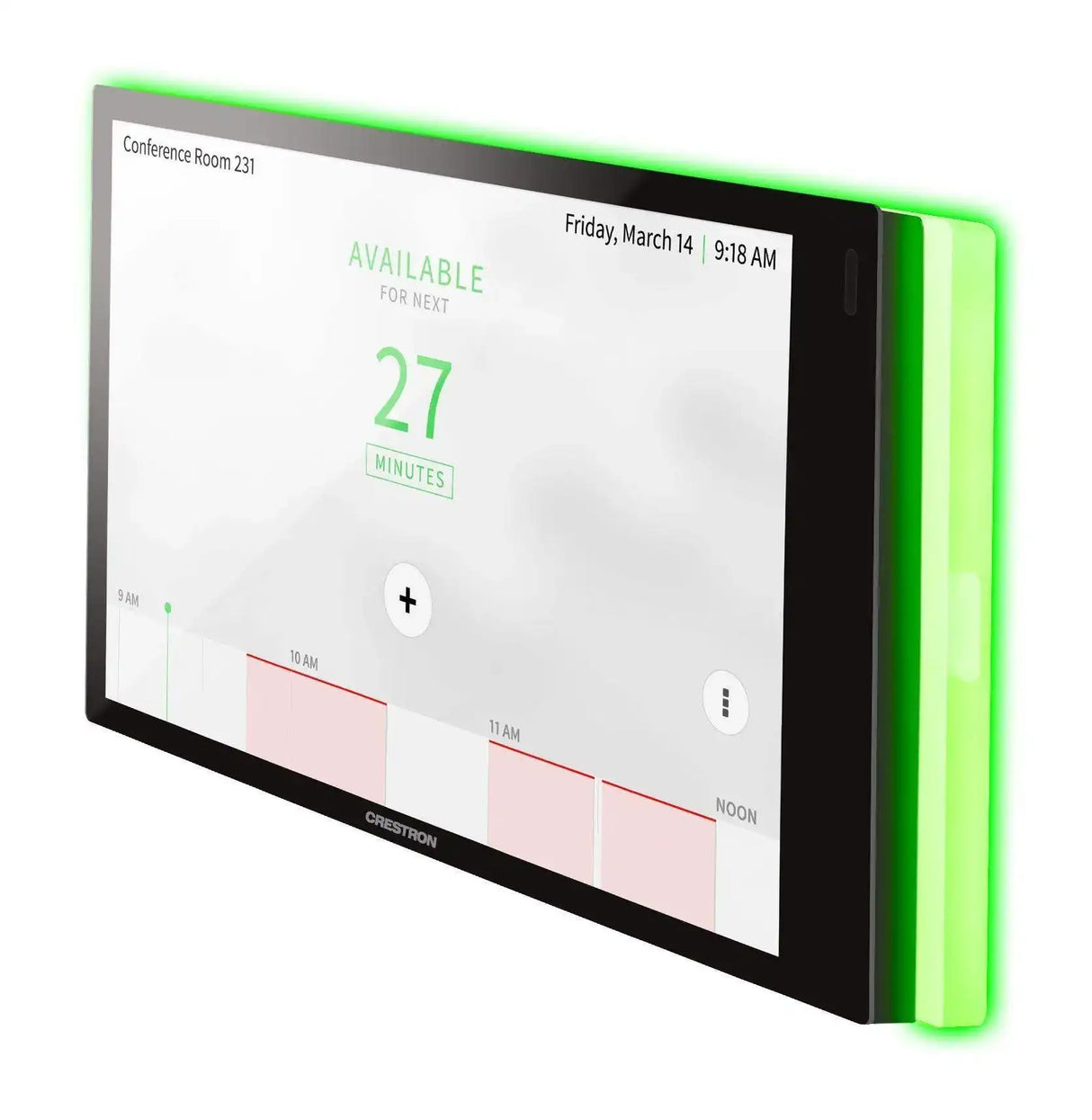

Crestron TSW-770-LB-B-S – Room Availability Light Bar for TSW-770 Series, Black Smooth

Product Overview

The Crestron TSW-770-LB-B-S is a room availability light bar attachment for the TSW-770 and TSS-770 series 7-inch touch screens that integrates an LED room availability status indicator directly onto the side of the scheduling touch screen panel — providing occupied (red) and available (green) status indication alongside the touch screen without requiring a separate sign unit at the room entry. The black smooth finish matches the TSW-770-B-S and TSS-770-B-S touch screen finish. The combination of TSW/TSS-770 scheduling panel plus TSW-770-LB-B-S light bar provides both a full touch screen room booking interface and visible corridor availability indication in a single combined mounting footprint.

Product Description

Room scheduling deployments outside conference rooms typically require two things: a touch screen panel for meeting room booking, joining, and extension, and a visible availability indicator that can be read at corridor distances without approaching the panel. Traditionally these require two separate products installed side by side at the room entry. The TSW-770-LB-B-S integrates the availability light bar directly onto the TSW-770 or TSS-770 panel as an attachment, providing the corridor-visible red/green availability indication in the same unit as the touch screen interface — reducing the installation footprint and eliminating the need to mount, wire, and configure a separate sign unit. The light bar status is coordinated with the room scheduling software integration of the paired TSW/TSS-770, displaying the same availability state as the touch screen in a large, easily visible format on the side of the panel visible from approaching corridor traffic.

Key Features

• Integrated Light Bar for TSW/TSS-770: Attaches directly to the TSW-770 or TSS-770 series touch screen — no separate sign mounting, wiring, or configuration required for room availability indication alongside the scheduling touch screen.
• Corridor-Visible Red/Green Status: LED availability indicator visible from hallway approaches — red (occupied) and green (available) indication legible at corridor distances without reading the touch screen display.
• Combined Panel + Sign Footprint: Single installation position serves both the touch screen booking interface and the corridor availability sign — reduces hardware count and installation complexity at room entries with limited wall space.
• Black Smooth Finish: Matches TSW-770-B-S and TSS-770-B-S black smooth touch screen panels for a unified appearance at the room entry.
• Scheduling Software Coordination: Status synchronized with the paired panel’s room scheduling software integration — no separate scheduling configuration required for the light bar.

Technical Specifications

Competitor comparison: not applicable for this product.

Frequently Asked Questions

Does the TSW-770-LB-B-S require a separate power connection?
The light bar receives power from the paired TSW/TSS-770 panel — refer to the Crestron data sheet for power draw impact on the panel’s PoE+ budget. Contact Creation Networks for installation and power guidance.

Is a white smooth version available?
Contact Creation Networks for available light bar finish options to match your TSW-770 or TSS-770 panel color specification.

What is the warranty?
Crestron provides a standard 3-year limited warranty. Contact Creation Networks for warranty details.
