Crestron Multisurface Mount Kit for TSW-770 Series (White, Smooth) - TSW-770-MSMK-W-S

Availability: Call for Availability
Crestron SKU: TSW-770-MSMK-W-S
No reviews
Price:
$72.00 $120.00

Description

Spec Sheet

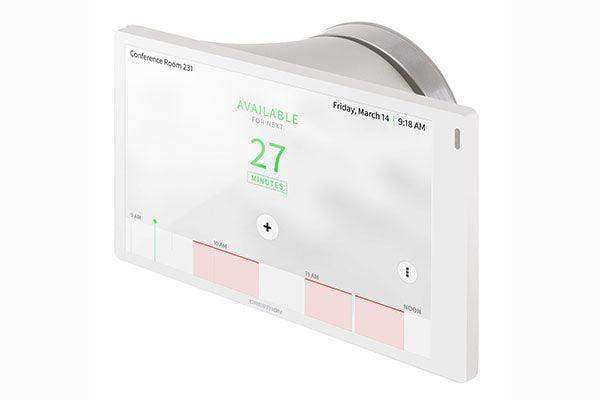

The Crestron TSW-770-MSMK-W-S in white is a multisurface mount kit provides a versatile smooth surface mounting solution for a TSW‑770 or TSS‑770 series touch screen. Using the multisurface mount kit, the touch screen can be mounted directly to glass, granite, marble, wood paneling, plaster, smooth masonry, or virtually any other flat surface. With its compatibility with the TSW770LB light bar, this device can be installed at the meeting space entrance for room scheduling applications; it can also be mounted at the entrance to a meeting space for room scheduling purposes.

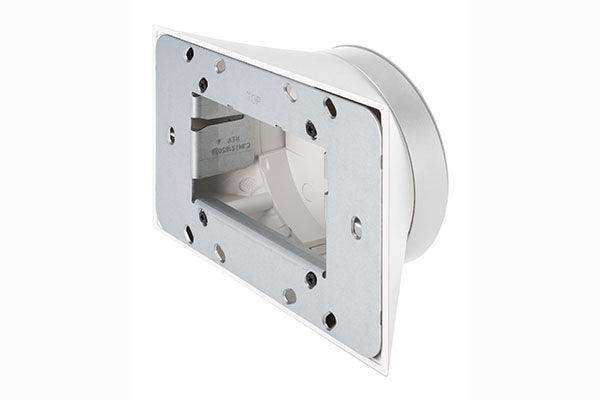

The TSW-770-MSMK attaches securely to a flat, smooth surface without screws using the included peel‑and‑stick adhesive rear housing. For a finished appearance when mounted to a transparent glass wall, an adhesive molded plastic cap is provided, which simply affixes to the opposite side of the glass behind the unit. Templates are provided for the MSMK and the plastic cap to help ensure that both are level and properly aligned with the surface.

  • Permits flush mounting a TSW‑770 or TSS‑770 series touch screen to virtually any flat, smooth surface
  • Ideal for mounting at the entrance to a meeting space for room scheduling applications
  • Supports glass surface and partition mounting
  • Compatible with the TSW‑770‑LB light bar for a clear indication of the room availability status
  • Secure, screwless installation using the peel‑and‑stick adhesive rear housing
  • Provides an assortment of raceway to conceal wiring
  • Includes a rotatable plastic cover to conceal unused cutouts
  • Available in smooth black or white finish
Construction
Housing Plastic, black or white finish
Surface Mounting Peel-and-stick adhesive mounting to glass or other flat, smooth surface
Raceway Peel-and-stick adhesive mount plastic raceway, white (paintable), 0.77 in. W x 0.46 in. D (19.6 mm W x 11.7 mm D) profile; includes (3) 3 ft (0.91 m) straight sections, (2) straight couplers, (2) 90° flat elbows, (1) inside elbow, and (1) outside elbow
Dimensions
Without touch screen Height: 3.93 in. (100 mm)
Width: 5.97 in. (152 mm)
Depth: 2.01 in. (51 mm)
With touch screen installed Height: 4.17 in. (106 mm)
Width: 6.80 in. (173 mm)
Depth: 2.57 in. (65 mm)
Weight
3.6 oz (102 g) without touch screen, light bar, or raceway
