Overview

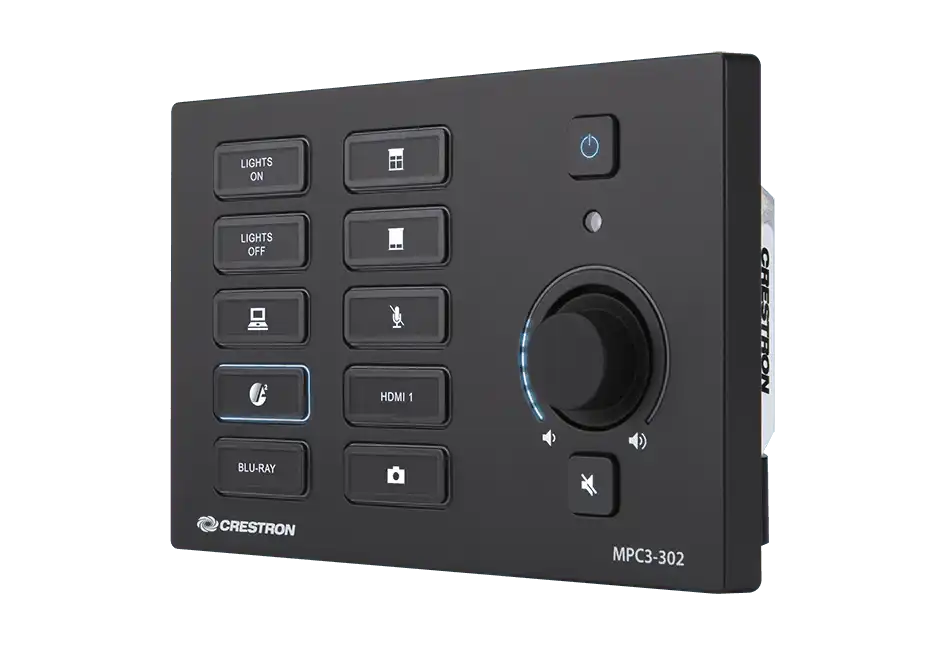

The 3-Series® Media Presentation Controller 302 (MPC3-302) is a wall-mounted, PoE+ powered 3-Series Control System® automated processor and control panel in one. Its modern appearance and customizable backlit buttons provide an ideal user interface for controlling AV and other functions. The controller offers fully‑programmable functionality, supports web and cloud‑based configuration and management, and integrates with Crestron Fusion® software as part of a complete managed enterprise solution.
Crestron® MPC3 series controllers are perfect for classrooms, meeting rooms, lecture halls, and training facilities. Use the MPC3-302 to control a video display or AV system, adjust lighting and window shades, or any other custom application. The MPC3-302 is designed for flush‑mount installation in a wall using a 3‑gang U.S. electrical box (not included). It can also be installed in a podium with no back box or placed on a table using the optional tabletop kit.
NOTE: The MPC3-302 series fits all the same mounting options as previous generation MPC‑M10, MPC‑M20, MPC‑M25, and MPC‑M50 series products, providing an easy retrofit upgrade for older systems.

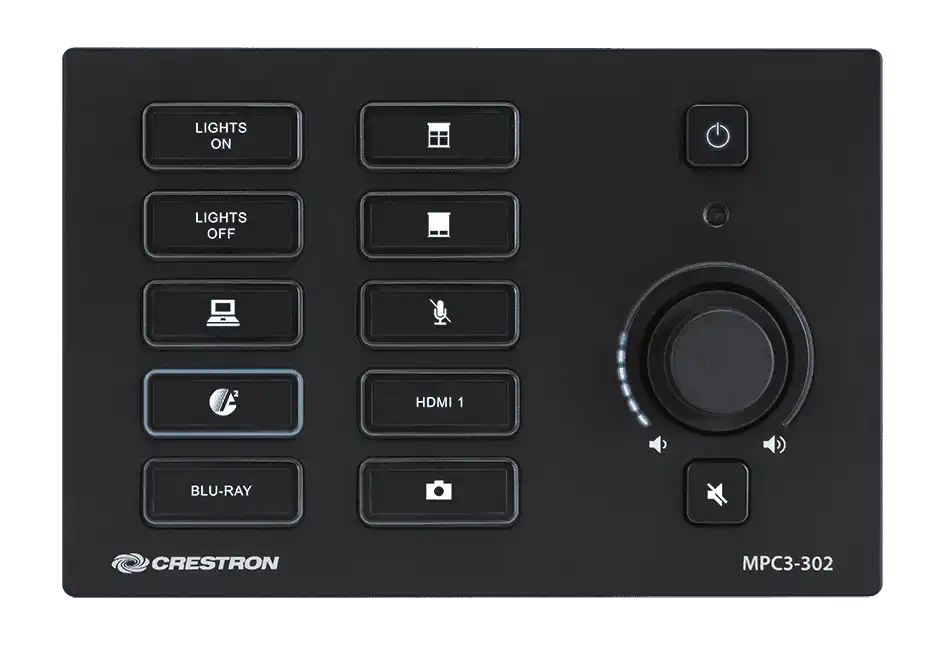

Customizable Backlit Buttons
The MPC3-302 features ten backlit buttons, which can each be labeled using the peel‑off labels provided, or custom labeled using laser‑engravable labels (sold separately). Elegant backlighting surrounds each button and illuminates the labels. Each button is backlit blue when active and white when inactive to provide clear indication of what media source or lighting scene is currently selected. A volume knob is included, encircled by a blue volume gauge to indicate the audio volume setting. Additional buttons are provided for power and mute control.
All buttons and controls on the MPC3-302 are custom programmable to control any device or function. Autobrightness control of the backlighting ensures optimal visibility under varying lighting conditions.
Expanded connectivity is available using a C2N‑IO control port expansion module, CEN‑GWEXER or CENI‑GWEXER infiNET EX® network wireless gateway, DIN‑CENCN-2 or DIN‑CENCN‑2‑POE Ethernet to Cresnet Bridge, CEN‑CI3‑1 or CEN‑CI3‑3 control card interface, or CEN‑IO‑COM‑102, CEN‑IO‑DIGIN‑104, CEN‑IO‑IR‑104, or CEN‑IO‑RY‑104 wired Ethernet module.
3-Series Control Engine
The MPC3-302 features an integrated, enterprise‑grade 3‑Series control processor. Built-in Modular Programming Architecture (optional 1) allows the MPC3-302 to run multiple programs simultaneously for increased efficiency and flexibility. Rock solid networking and IP control afford seamless integration with other systems and devices, with add‑on control capability using Crestron touch screens, keypads, wireless remotes, and mobile device apps with remote management through Crestron Fusion and the XiO Cloud® service.
No Programming Required!
Built-in .AV Framework™ technology delivers a fully functional AV presentation system with simplified web‑based configuration and a choice of control options and add‑ons. For complete details on the capabilities supported by .AV Framework, visit www.crestron.com/avframework.
Key Features
- Crestron® 3-Series Control System® automated processor and control panel
- Mounts flush on a wall or lectern and fits in a 3‑gang U.S. electrical box
- Ten buttons customizable with replaceable labels, plus rotary volume control with circular volume gauge and additional power and mute buttons
- Built-in .AV Framework™ software
- Ethernet LAN port and Cresnet® network port
- Onboard RS‑232, IR, relay, and Versiport control ports
- iPhone®, iPad®, and Android™ device control app support
- XPanel computer and web‑based control
- Native BACnet™ network and IP support
- Installer setup via software, web browser, or cloud
- Drag-and-drop, C#, and symbol based programming environments with full Unicode (multilanguage) support
- Enterprise-grade security and authentication
- IPv6 ready
- PoE+ network powered
- Upgrade for legacy 2‑Series MPC controllers (fits same mounting options as MPC‑M10, MPC‑M20, MPC‑M25, and MPC‑M50)
Specs
| Control Engine | ||
| Crestron® 3-Series® processor; real-time, preemptive multithreaded/multitasking kernel; transaction-safe extended FAT file system; battery-backed nonvolatile real-time clock; supports up to 10 simultaneously running programs (license required 1); preloaded .AV Framework™ base program | ||
| Communications | ||
| Ethernet | 100 Mbps, autoswitching, autonegotiating, autodiscovery, full/half duplex, TCP/IP, UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), FIPS 140-2 compliant encryption, IEEE 802.1X, SNMP, BACnet and IP 2, IPv4 or IPv6, Active Directory® service authentication, SMTP email client, HTTPS web server, HTTPS web browser setup and XiO Cloud® client, IEEE 802.3at Type 2 PoE+ compliant | |
| Cresnet® Network | Cresnet master mode | |
| RS-232 | For 2-way device control and monitoring, supports RS-232 up to 115.2k baud with hardware and software handshaking | |
| IR/Serial | Supports 1-way device control via infrared up to 1.2 MHz or serial TTL/RS-232 (0–5 V) up to 115.2k baud | |

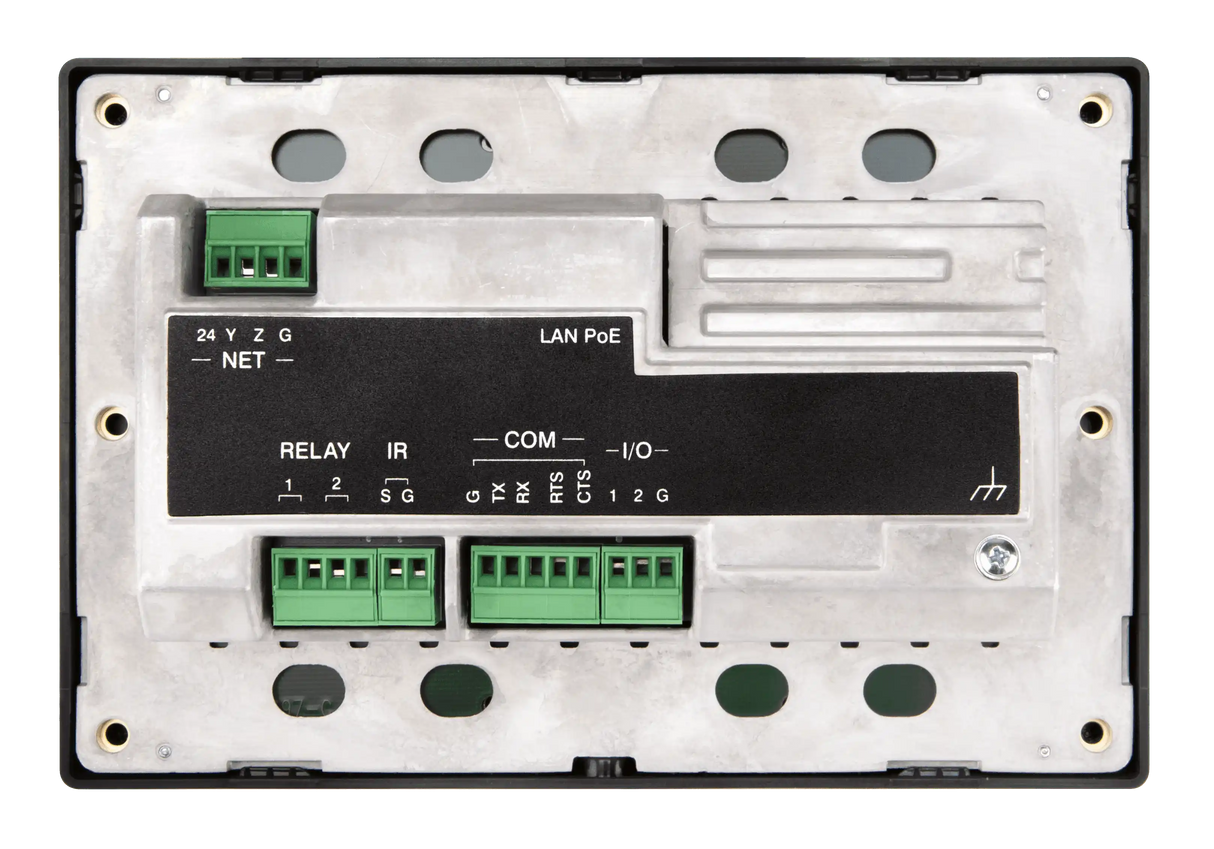

| Connectors | ||
| NET | (1) 4-pin 3.5 mm detachable terminal block; Cresnet master port |
|
| LAN PoE | (1) 8-pin RJ45 connector, female; 100Base-TX Ethernet port; PoE+ (Power over Ethernet Plus) PD (Powered Device) port |
|
| RELAY 1 – 2 | (1) 4-pin 3.5 mm detachable terminal block; Comprises (2) normally open, isolated relays; Rated 1 A, 30 V AC/DC; MOV arc suppression across contacts |
|
| IR | (1) 2-pin 3.5 mm detachable terminal block; IR/Serial output port; IR output up to 1.2 MHz; 1-way serial TTL/RS-232 (0–5 V) up to 115.2k baud; (IRP2 emitter sold separately) |
|
| COM | (1) 5-pin 3.5 mm detachable terminal block; Bidirectional RS-232 port; Up to 115.2k baud; hardware and software handshaking support |
|
| I/O | (1) 3-pin 3.5 mm detachable terminal block; Comprises (2) Versiport digital input/output or analog input ports (referenced to GND); Digital Input: Rated for 0–24 VDC, input impedance 20k Ω, logic threshold >3.125 V low/0 and <1.875 V high/1; Digital Output: 250 mA sink from maximum 24 VDC, catch diodes for use with real world loads; Analog Input: Rated for 0–10 VDC, protected to 24 VDC maximum, input impedance 21k Ω with pull-up resistor disabled; Programmable 5 V, 2k Ω pull-up resistor per pin |
|
| Ground | (1) 6-32 screw; Chassis ground lug |
|
| Controls and Indicators | ||
| Assignable Buttons | (10) Push buttons, each may be labeled using one of 25 predesignated labels or five blank labels (included), custom laser-etched labels are available using optional MPB3/MPC3-BTN10-B ENGRAVED or MPB3/MPC3-BTN10-W ENGRAVED engravable labels (sold separately) | |
| Power | (1) Push button labeled with power icon | |
| Volume | (1) Knob (continuous turn rotary encoder) for volume control | |
| Volume Gauge | (1) Blue LED multisegment circular graph surrounding the volume knob for volume level indication | |
| Mute | (1) Push button with mute icon | |
| HW-R | (1) Push button (behind front panel) for hardware reset (reboots the processor) | |
| SW-R | (1) Push button (behind front panel) for software reset (restarts the software program) | |
| LAN PoE | (2) LEDs (on rear panel LAN port), green LED indicates Ethernet link status, amber LED indicates Ethernet activity | |
| Illumination | Each front panel button is individually backlit white when inactive and blue when active; autobrightness control adjusts all backlighting in three levels according to the ambient light level | |
| NOTE: All front panel buttons and the volume knob are custom programmable. | ||
| Light Sensor | ||
| Photosensor detects the ambient light level to enable autobrightness control | ||
| Power | ||
| Power over Ethernet | IEEE 802.3at Type 2 compliant PoE+ PD (Powered Device); Requests 15 W from an 802.3at Type 2 PSE with LLDP advanced power management; Requests 30 W (PoE+ Class 4) from an 802.3at Type 2 PSE without LLDP |
|
| Available Cresnet Power | 2.5 W (104 mA @ 24 VDC) | |
| Power Consumption | 8.5 W typical | |
| Environmental | ||
| Temperature | 41 to 95 °F (5 to 35 °C) | |
| Humidity | 10% to 90% RH (noncondensing) | |
| Heat Dissipation | 23 BTU/hr | |
| Construction | ||
| Housing | Plastic with metal mounting plate, black or white, removable front panel with security screw | |
| Flush Wall Mount | Mounts in a 3-gang U.S. plaster ring or electrical box, ≥2-1/2 in. (64 mm) deep recommended (not included) | |
| Lectern Mount | Mounts in a 2-11/16 x 5-13/32 in. (69 x 138 mm) cutout using bracket provided | |
| Tabletop Mount | Sits on, or mounts to, a tabletop using optional tabletop kit (TTK-MP/MPC/IPAC series, sold separately) | |
| Dimensions | ||
| Height | 4.50 in. (115 mm) | |
| Width | 6.70 in. (171 mm) | |
| Depth | 2.41 in. (62 mm) | |
| Weight | ||
| 23.2 oz (657 g) | ||
