Product Overview

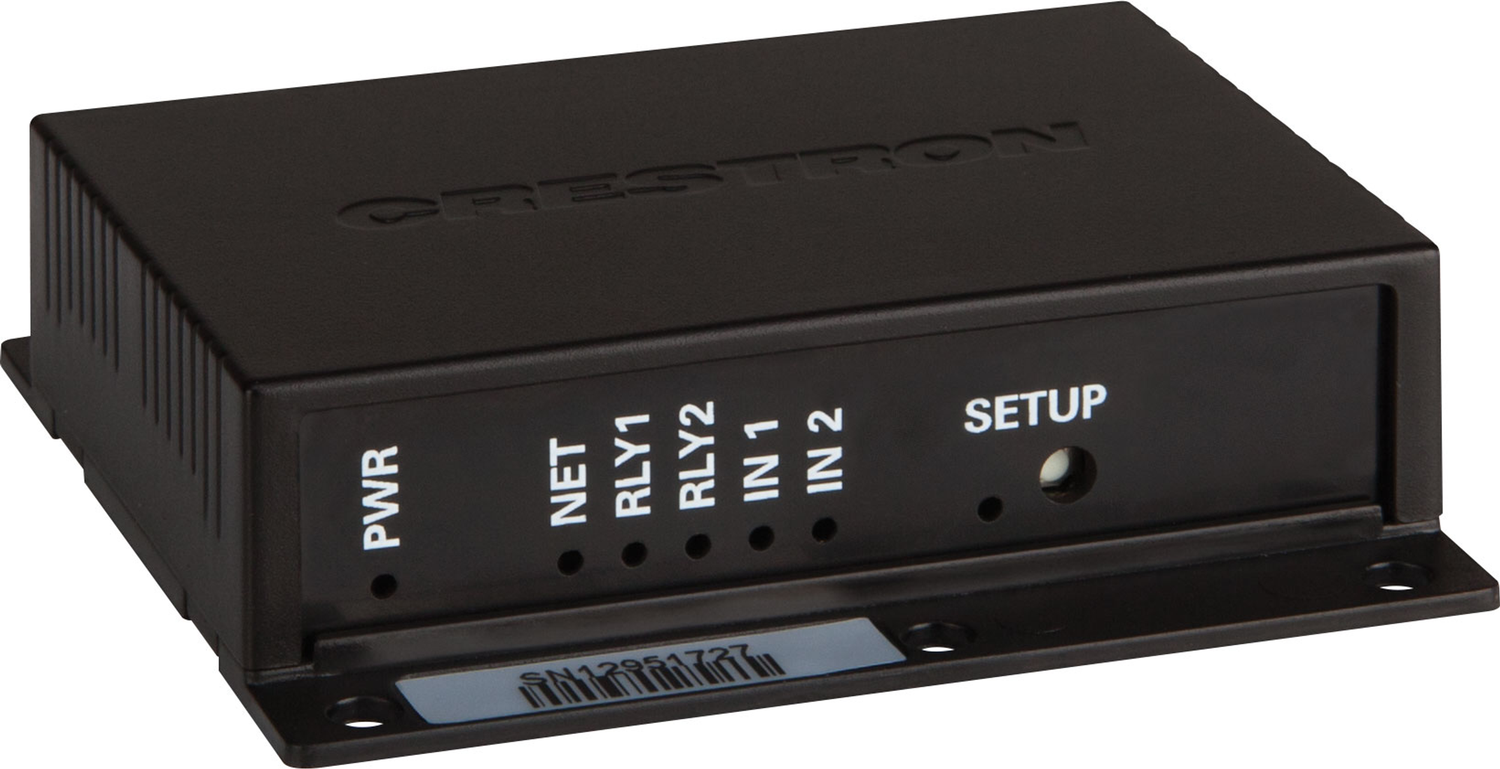

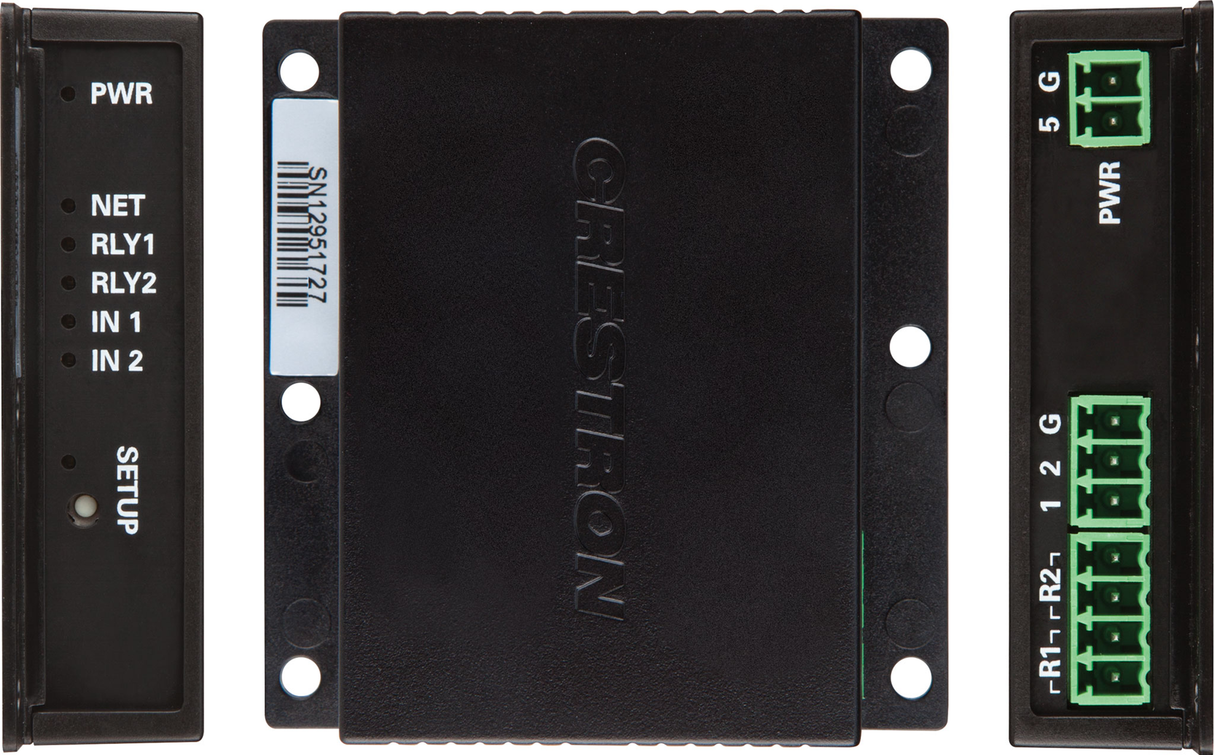

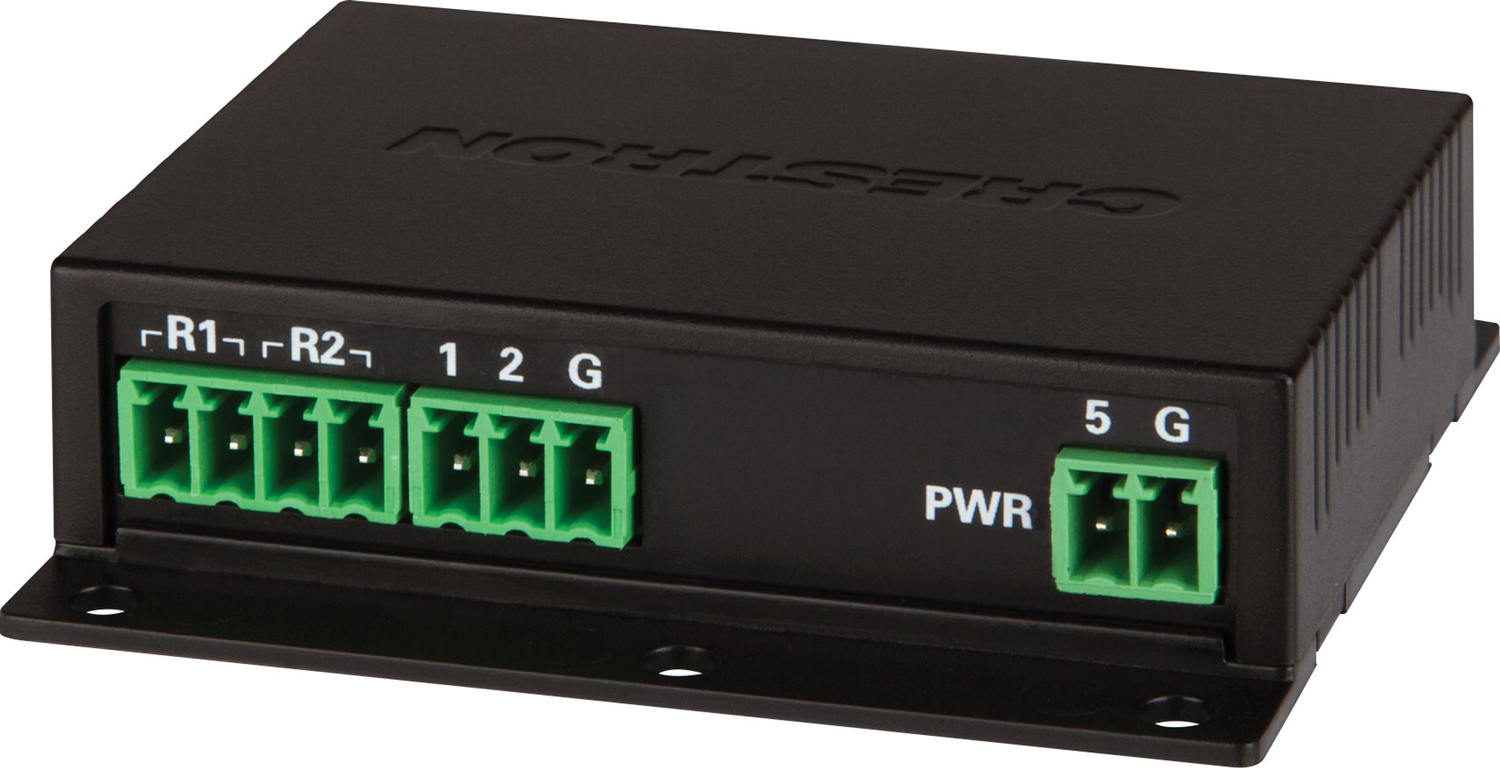

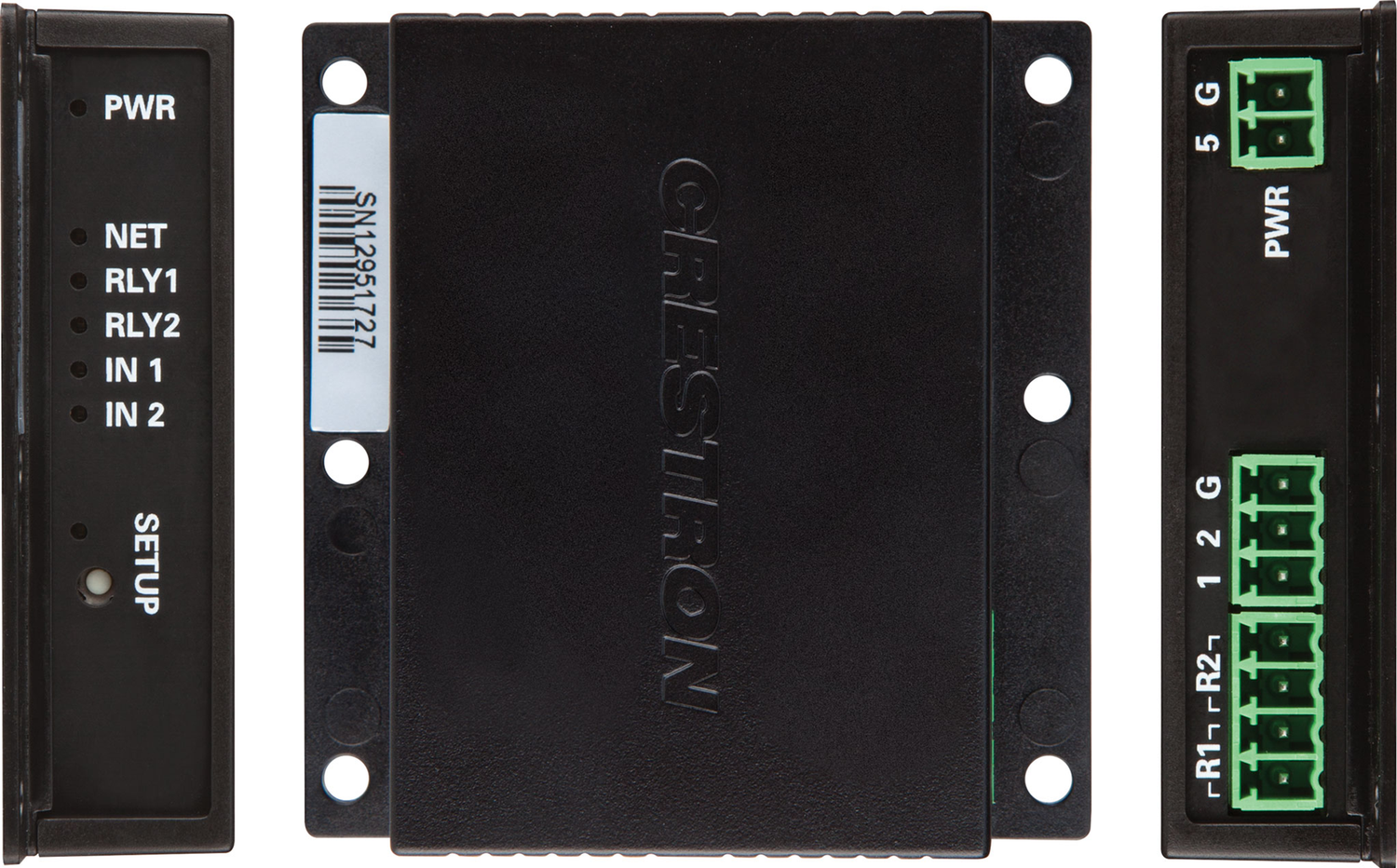

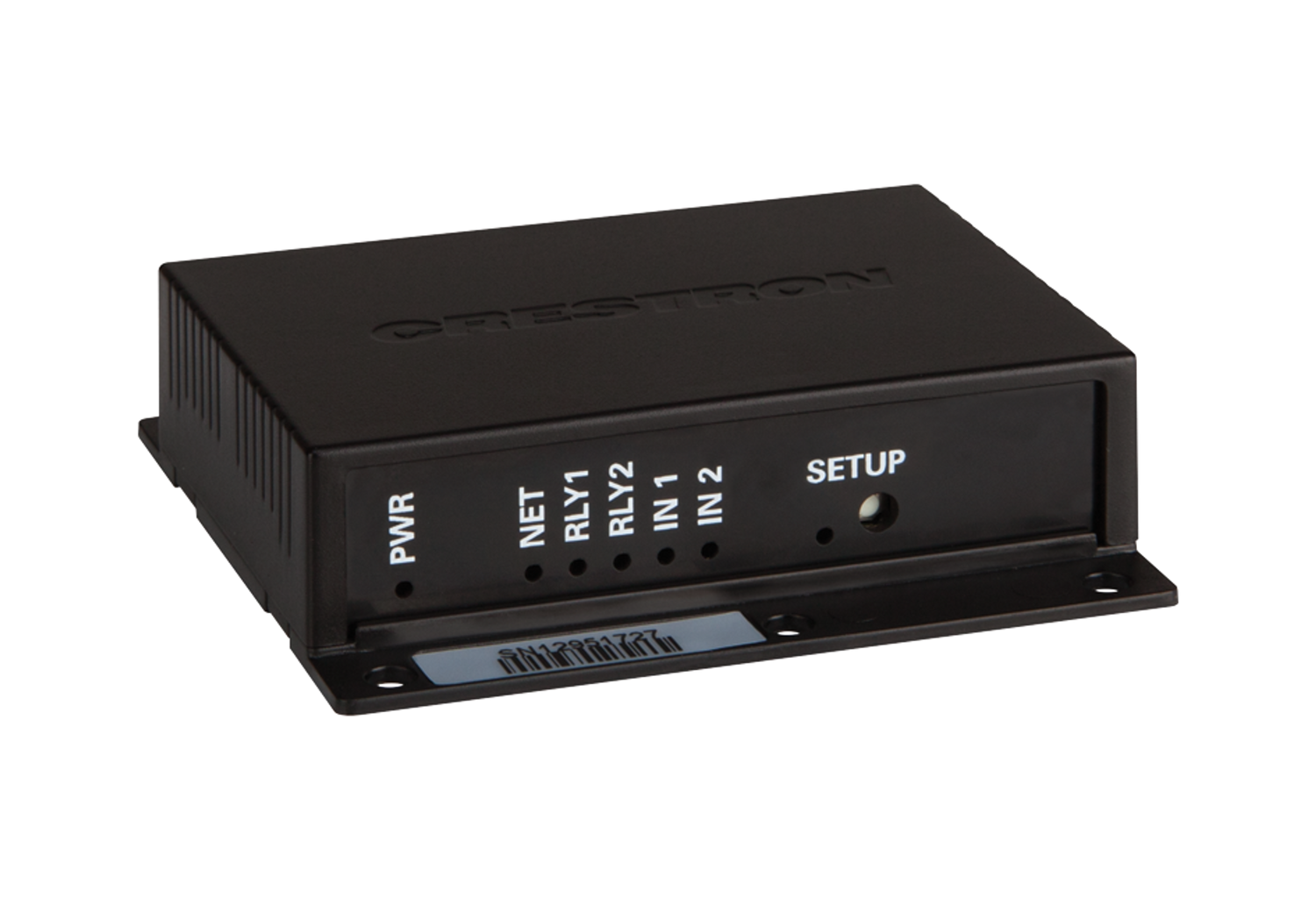

The Crestron INET-IOEX-RYIO is a compact infiNET EX wireless control module providing two isolated relay outputs and two digital inputs. It eliminates control wiring by communicating over the 2.4 GHz infiNET EX mesh RF network, making it ideal for retrofits, historic buildings, and installations where running new wire is impractical.
Product Description
The INET-IOEX-RYIO connects to a Crestron 2-Series or 3-Series control system via infiNET EX mesh RF, supporting networks of up to 100 devices per gateway. The two relay outputs are normally open, isolated, and rated 1 A at 30 V AC/DC with MOV arc suppression. The two digital inputs accept 0–24 VDC signals for connecting dry-contact sensors, door/window detectors, and similar devices. The module ships with the PW-0510WUL power pack (100–240 VAC input). A required infiNET EX gateway (CEN-GWEXER, DIN-AP3MEX, or MC3) is sold separately. For ordering and integration support, visit creationnetworks.net.
Key Features
- 2 normally open, isolated relay outputs rated 1 A / 30 V AC/DC with MOV arc suppression
- 2 programmable digital inputs, 0–24 VDC logic compatible
- infiNET EX 2-way RF mesh, 2.4 GHz ISM, IEEE 802.15.4; up to 100 devices per gateway
- Wireless range: 150 ft (46 m) indoors / 250 ft (76 m) outdoors
- Includes PW-0510WUL power pack (100–240 VAC in, 5 VDC out)
- Dimensions: 0.68 × 2.58 × 2.49 in. (18 × 66 × 64 mm); weight 1.7 oz (46 g)
- Certifications: FCC Part 15 Class B, IC, CE
- Compatible with Crestron 2-Series and 3-Series control systems
Typical Applications
- Wireless control of garage doors, projection screens, and electric locks in retrofit projects
- Dry-contact sensor monitoring (door/window open/close detection) without running new cable
- Historic or architecturally restricted buildings where wire-fishing is not feasible
- Motorized shade and projection screen control in conference rooms or home theaters
Technical Specifications
| Specification | Value |
|---|---|
| Relay Outputs | 2, normally open, isolated |
| Relay Rating | 1 A, 30 V AC/DC; MOV arc suppression |
| Digital Inputs | 2, programmable, 0–24 VDC |
| Input Logic High/Low | ≥1.9 VDC high / ≤0.8 VDC low |
| Input Impedance | 2.2 kΩ (pulled to 5 V) |
| Wireless Protocol | infiNET EX, 2.4 GHz, IEEE 802.15.4, AES-128 |
| RF Range (Indoor) | 150 ft (46 m) |
| RF Range (Outdoor) | 250 ft (76 m) |
| Network Capacity | Up to 100 infiNET EX devices per gateway |
| Power Supply | 5 VDC via included PW-0510WUL (100–240 VAC) |
| Heat Dissipation | 3 BTU/hr |
| Dimensions (H × W × D) | 0.68 × 2.58 × 2.49 in. (18 × 66 × 64 mm) |
| Weight | 1.7 oz (46 g) |
| Operating Temperature | 32°–113°F (0°–45°C) |
| Humidity | 10–90% RH, non-condensing |
| Certifications | FCC Part 15 Class B, IC, CE |
| Required Gateway (sold separately) | CEN-GWEXER, DIN-AP3MEX, or MC3 |
Frequently Asked Questions
- Does the INET-IOEX-RYIO require a wired connection to the control system?
- No. It communicates via infiNET EX wireless mesh RF, eliminating the need for a dedicated control wiring run. A compatible infiNET EX gateway is required and sold separately.
- What is the maximum number of INET-IOEX-RYIO units on one gateway?
- Up to 100 infiNET EX devices can be networked on a single infiNET EX gateway, shared across all infiNET EX devices on that network.
- Is this compatible with Crestron 4-Series processors?
- The INET-IOEX-RYIO is confirmed compatible with Crestron 2-Series and 3-Series control systems. For 4-Series compatibility, verify with current Crestron product documentation before specifying.
