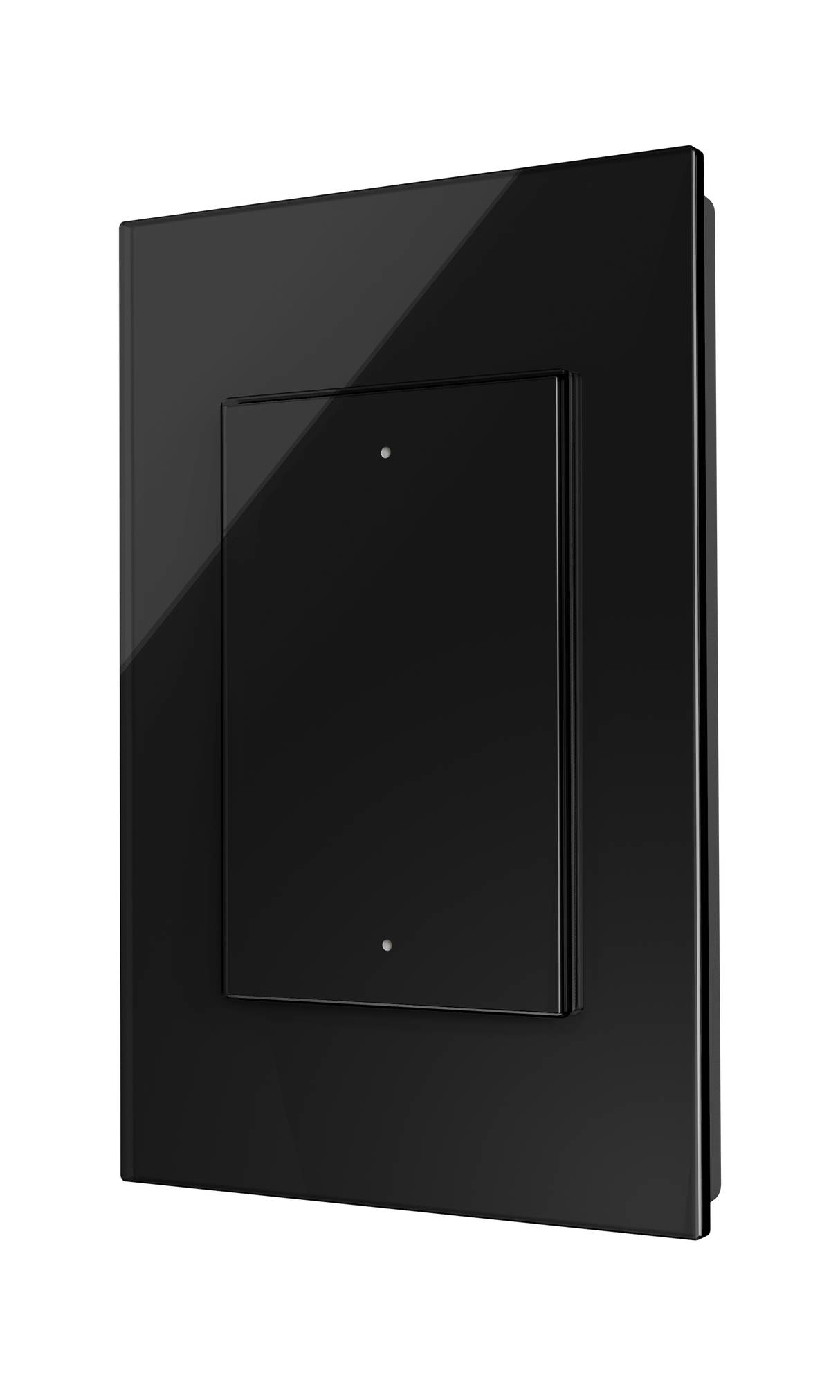

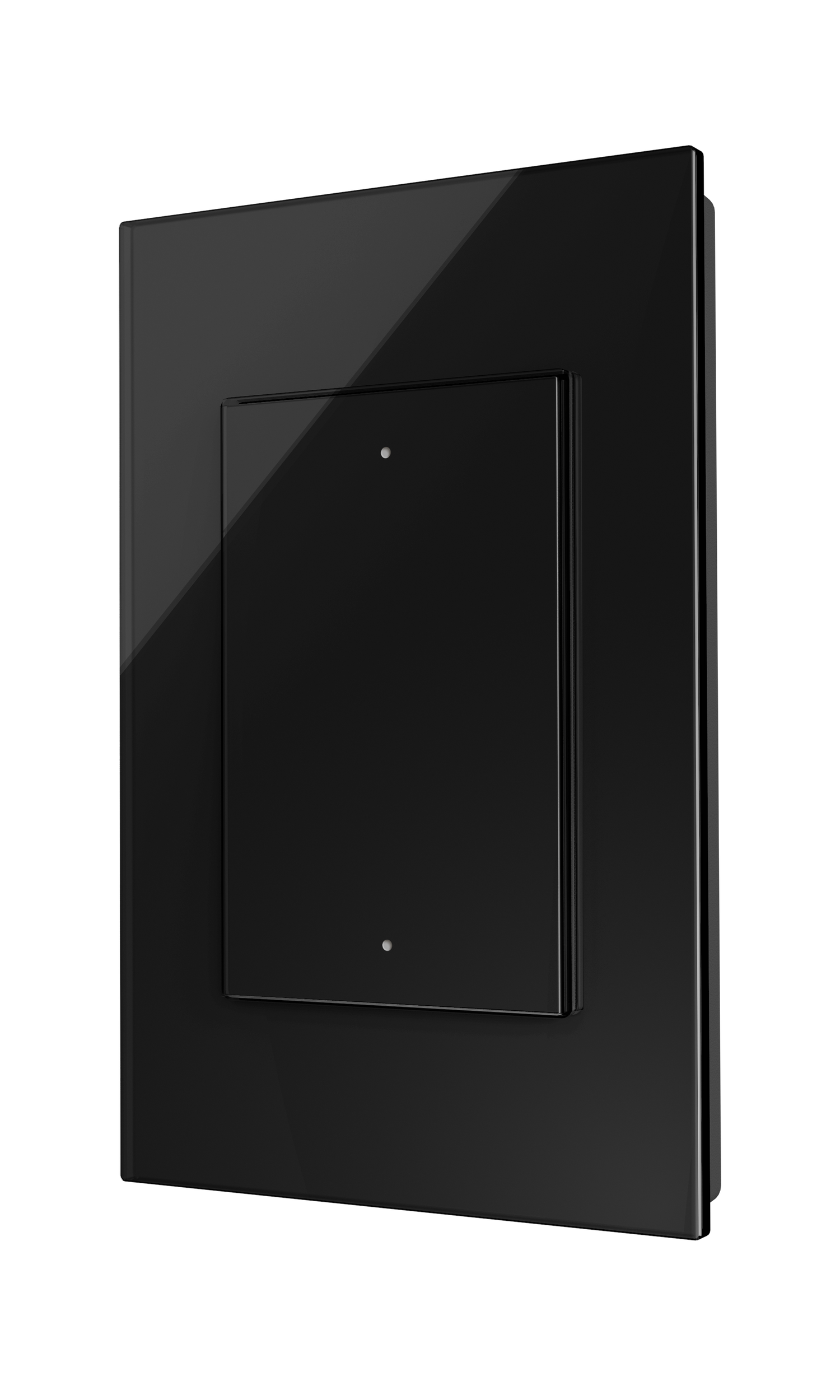

Crestron HZ2-SWEX-GLASS-B – Horizon 2 In-Wall Switch, infiNET EX, Black Glass, Engraved
Crestron HZ2-SWEX-GLASS-B – Horizon 2 In-Wall Switch, infiNET EX, Black Glass, Engraved is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Crestron HZ2-SWEX-GLASS-B – Horizon 2 In-Wall Switch, infiNET EX, B...
Product Overview
The Crestron HZ2-SWEX-GLASS-B is a Horizon 2 in-wall relay-based switch with infiNET EX wireless communication, finished in Black Glass with custom laser engraving. It provides on/off switching for incandescent, magnetic low voltage, tungsten-halogen, electronic ballast, and motor loads up to 10 A over the infiNET EX 2.4 GHz mesh network.
Product Description
The HZ2-SWEX-GLASS-B is electrically identical to the Brushed Brass variant, differing only in its high-gloss Black Glass finish and the engraving process. Custom button artwork in any of Style 1–6 is laser-etched at order; files must be submitted via Impress SW, the Crestron Home app, D3Pro, or Crestron Home OS Configurator. The switch does not include an airgap switch. Neutral wire and HZ2-FP-G faceplate (sold separately) are required. For ordering, visit creationnetworks.net.
Key Features
- Relay-based on/off switch; 10 A maximum load; 1/2 HP motor maximum
- Supports incandescent, MLV, tungsten-halogen, electronic ballasts, and motor loads
- Black Glass finish with custom laser-engraved button artwork (Style 1–6; files required at order)
- infiNET EX wireless, 2.4 GHz, IEEE 802.15.4; Crestron Home OS compatible
- 9 programmable buttons; 5 RGB LEDs; 13 color themes; Tunable White 2000K–8000K
- Remote terminal for up to 4 HZ2-AUX or HZ2-KPEX companion devices; no airgap switch

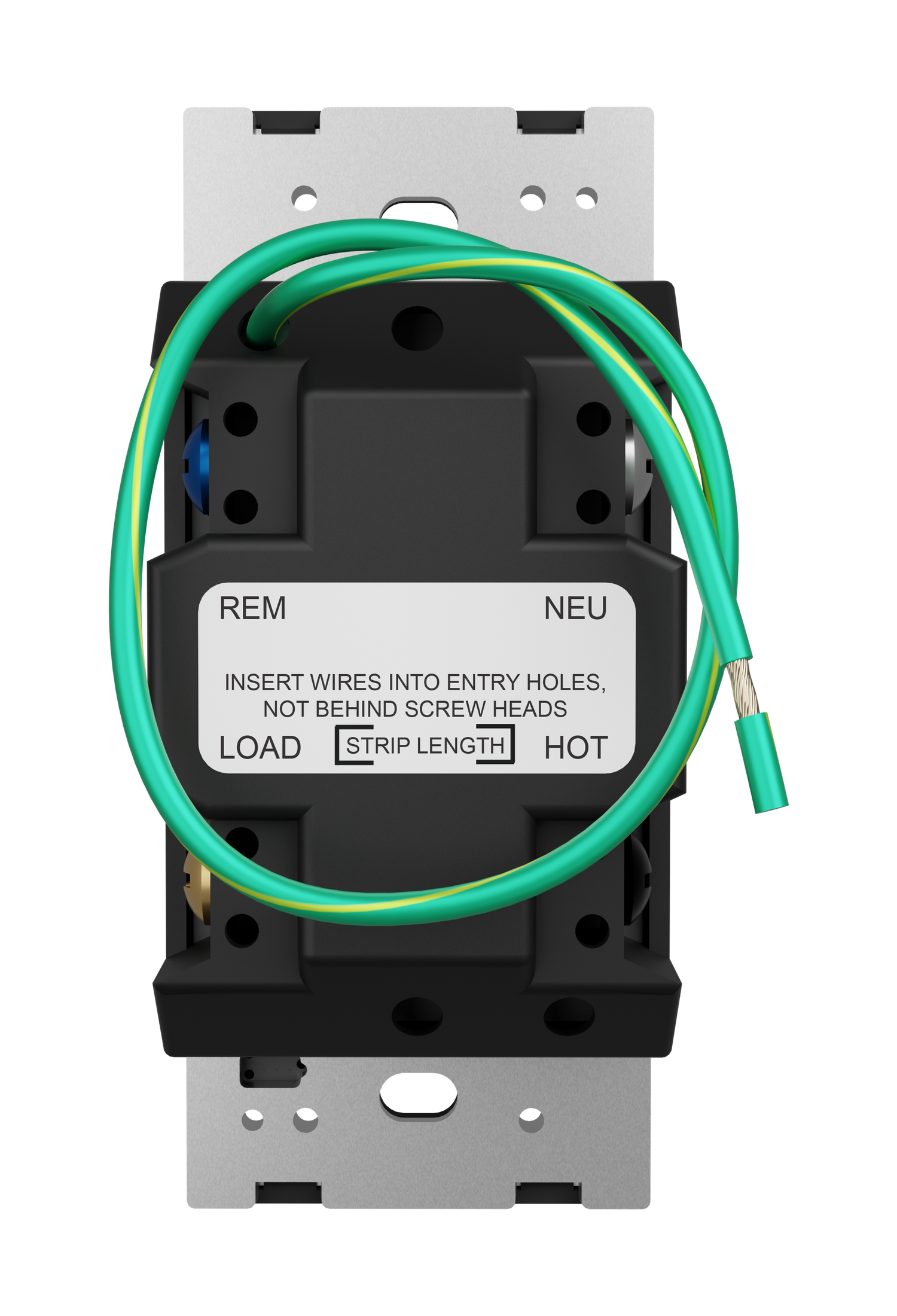

- 120 VAC, neutral required; 14–12 AWG screw clamp terminals
- Dimensions: 4.13 × 1.80 in. (105 × 46 mm); depth 1.89 in. (48 mm); weight 7.4 oz (208 g)
- Certifications: FCC, UL, IC
Typical Applications
- Motor and ballast load switching in premium residential and commercial spaces with Black Glass device specifications
- Installations requiring labeled switch buttons in a high-gloss glass aesthetic
- Crestron Horizon 2 deployments where a uniform Black Glass finish is specified throughout a space
- On/off switching of LED and non-dimmable fixtures in modern interior designs
Technical Specifications
| Specification | Value |
|---|---|
| Switch Type | Relay-based on/off (not a dimmer) |
| Load Types | Incandescent, MLV, Tungsten-Halogen, Electronic Ballasts, 1/2 HP motors |
| Load Rating | 10 A maximum; 1/2 HP motor maximum |
| Airgap Switch | Not included |
| Wireless Protocol | infiNET EX, 2.4 GHz, IEEE 802.15.4 |
| Power Input | 120 VAC, 50/60 Hz; neutral required |
| Finish | Black Glass, custom engraved |
| Engraving | Custom laser-etched; artwork files required at order |
| Dimensions (H × W) | 4.13 × 1.80 in. (105 × 46 mm) |
| Depth | 1.89 in. (48 mm) |
| Weight | 7.4 oz (208 g) |
| Certifications | FCC, UL, IC |
| Required Accessory | HZ2-FP-G faceplate (sold separately) |
Frequently Asked Questions
- Is this functionally identical to the Brushed Brass switch?
- Yes. The HZ2-SWEX-GLASS-B has the same electrical specifications as the HZ2-SWEX-BR-BRASS. The differences are the finish (Black Glass vs. Brushed Brass metal) and the resulting depth measurement (1.89 in. vs. 1.83 in.).
- When must I submit engraving files?
- Engraving artwork must be provided at time of order through Impress SW, Crestron Home app, D3Pro, or CHO Configurator. This is a made-to-order product.
- Can I mix Black Glass switches with Black Glass dimmers in the same installation?
- Yes. The HZ2-SWEX-GLASS-B shares the same Black Glass finish family as the HZ2-DIMEX-GLASS-B, HZ2-DIMUEX Glass, and HZ2-DIMLVEX Glass variants, allowing a consistent look across all device types in a space.
