Crestron HD-TXC-4KZ-101 DM Lite® 4K60 4:4:4 Transmitter for HDMI®, RS‑232, and IR Signal Extension over CATx Cable

Product Overview

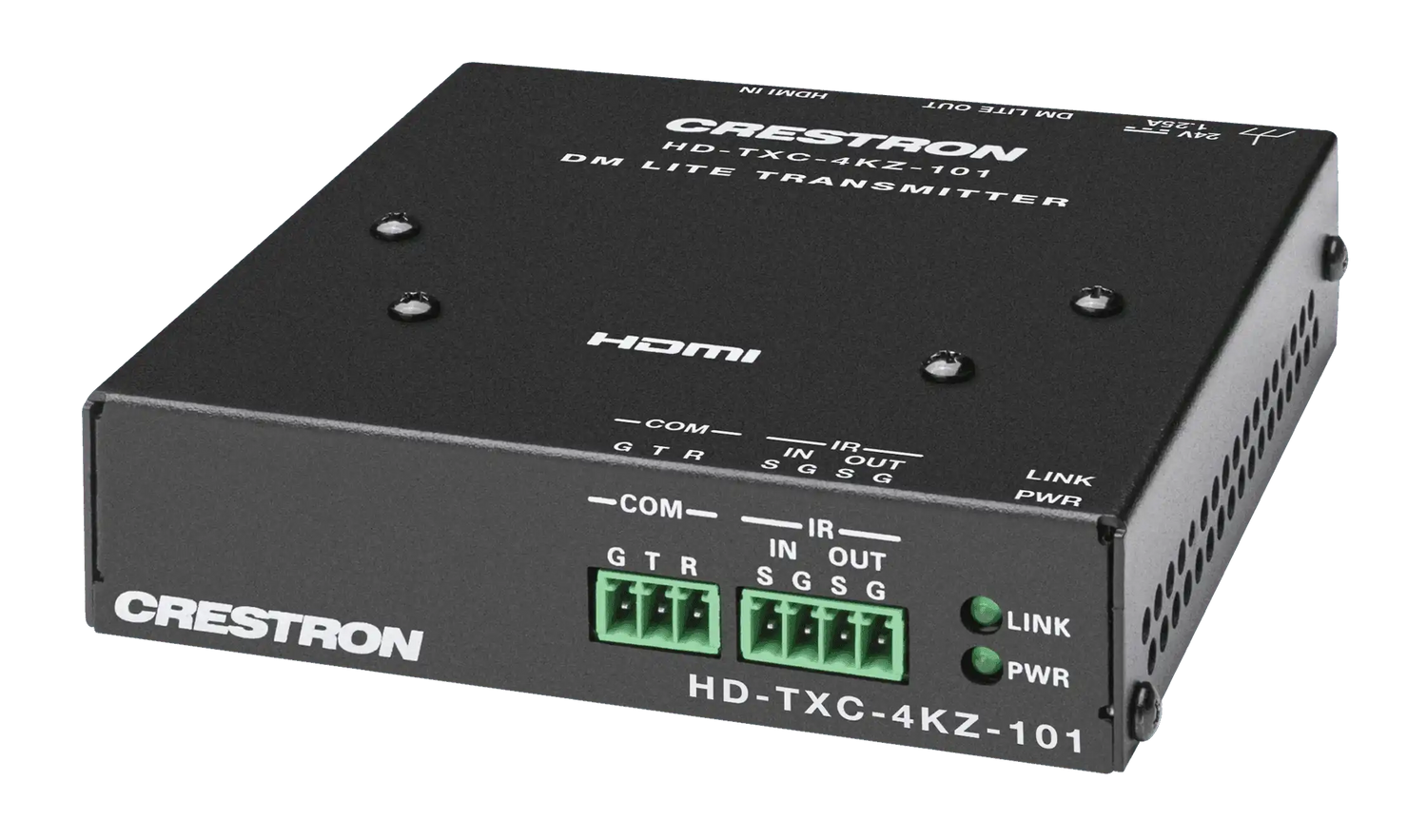

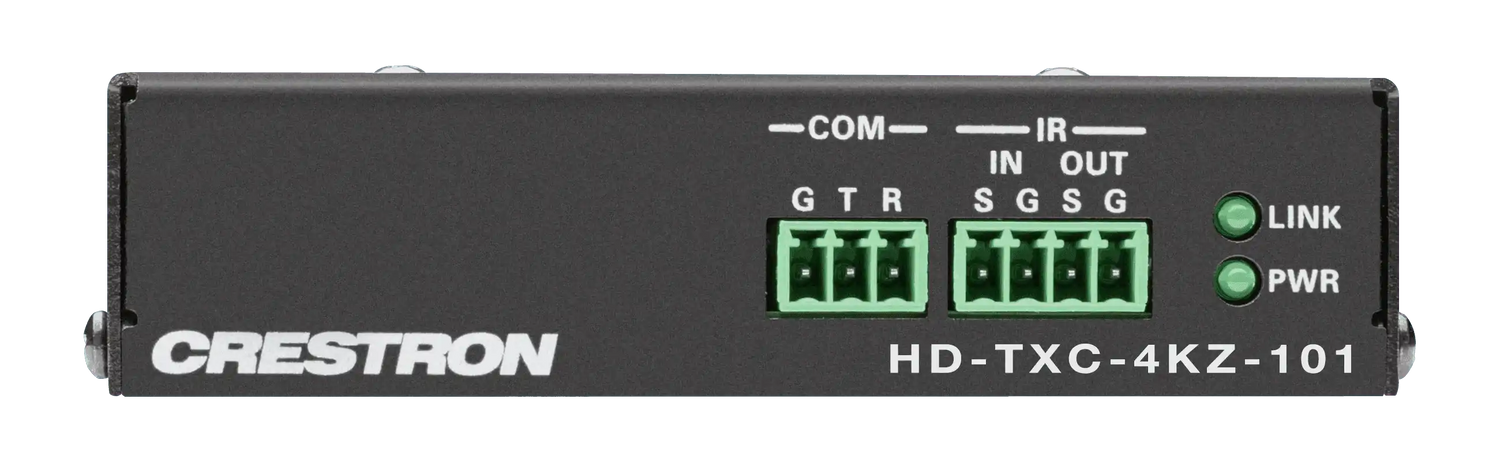

The Crestron HD-TXC-4KZ-101 is a DM Lite 4K60 4:4:4 transmitter that extends HDMI, RS-232, and IR signals over a single CATx cable to a compatible receiver or DMPS Lite switcher. It supports 4K60 with full 4:4:4 color sampling, HDR formats, and HDCP 2.3, plus bidirectional control pass-through for device automation. The transmitter is designed for point-to-point AV distribution in conference rooms, classrooms, and presentation environments. It pairs directly with the matching HD-RXC-4KZ-101 receiver for a complete extension link.

Product Description

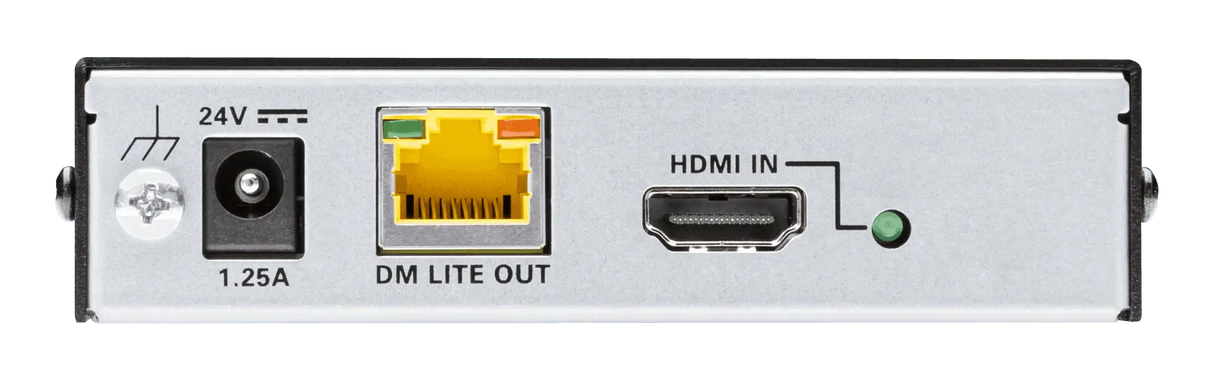

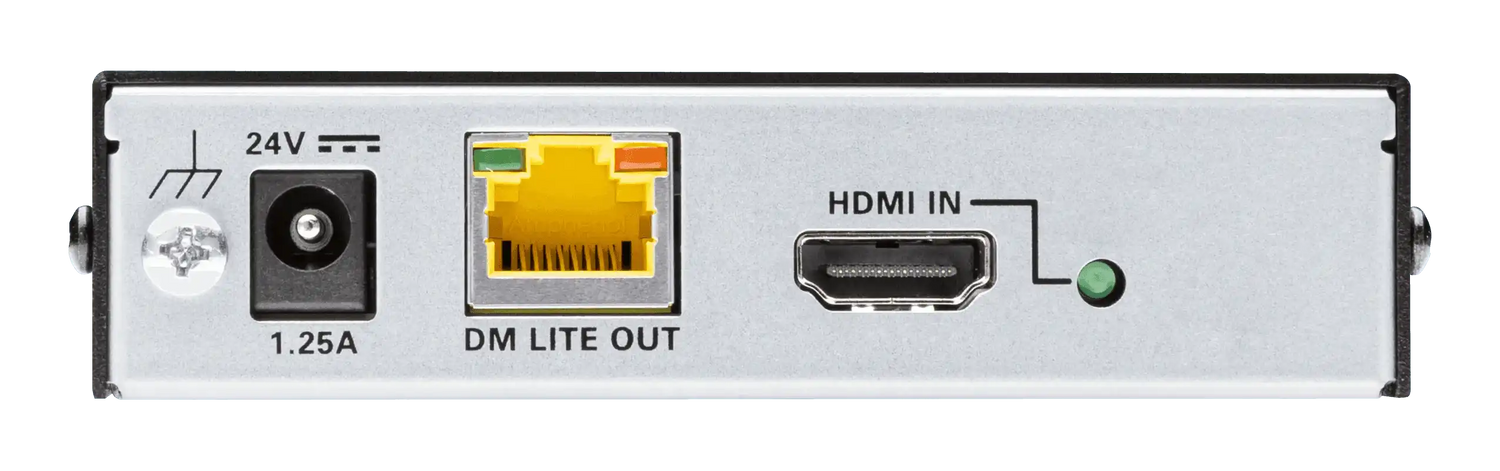

The HD-TXC-4KZ-101 takes an HDMI input and converts it to the DM Lite format for transmission over a CAT5e or higher twisted pair cable. For 1080p, WUXGA, and 2K signals, distances up to 230 ft (70 m) are supported; UHD and 4K signals are supported up to 130 ft (40 m). Beyond video and audio, the transmitter carries bidirectional RS-232 up to 115.2k baud and bidirectional IR up to 60 kHz, allowing a control system to manage a remote display or source device across the same link. HDR10, HDR10+, and Dolby Vision metadata pass through along with CEC and EDID for dependable handshaking. The HDMI input is DVI and Dual-Mode DisplayPort interface compatible with the appropriate adapter. When paired with a DMPS Lite switcher, the transmitter can be configured and controlled through the switcher web interface with control system and .AV Framework support. It draws power from the remote receiver or DMPS Lite switcher over the link. For the complete pairing and power matrix, refer to the Crestron data sheet.

Key Features

• HDMI over CATx — Extends an HDMI source as DM Lite over a single CAT5e or higher cable.
• 4K60 4:4:4 support — Resolutions up to 4K60 with full 4:4:4 color sampling at supported color depths.
• HDR and Dolby Vision — HDR10, HDR10+, and Dolby Vision video formats are supported.
• Bidirectional RS-232 — 2-way serial pass-through up to 115.2k baud for device control.
• Bidirectional IR — IR signal pass-through up to 60 kHz for remote source or display control.
• Long-reach extension — Up to 130 ft (40 m) for UHD/4K and up to 230 ft (70 m) for 1080p, WUXGA, and 2K.
• HDCP 2.3 and CEC/EDID — Protected content support with CEC and EDID pass-through.
• DVI and DisplayPort compatible — HDMI input works with DVI and Dual-Mode DisplayPort sources using the correct adapter.

Typical Applications

• Conference rooms — HDMI source extension with serial and IR control to a remote display.
• Classrooms and lecture halls — Long-distance HDMI delivery from a podium to a projector.
• Digital signage — Reliable HDMI transport with control pass-through to remote screens.
• Boardrooms — Point-to-point AV paired with a DMPS Lite switcher for managed control.

Technical Specifications

Frequently Asked Questions

Which receiver pairs with the HD-TXC-4KZ-101?
It is designed to work with the matching Crestron HD-RXC-4KZ-101 receiver, as well as supported DMPS Lite switchers. Refer to the Crestron data sheet for the full list.

Can it pass control signals to a remote device?
Yes. It carries bidirectional RS-232 up to 115.2k baud and bidirectional IR up to 60 kHz alongside the AV signal.

What cabling should I use?
Use Crestron DM-CBL-8G, DM-CBL-ULTRA, or third-party CAT5e or higher. Shielded cable is recommended above 1080p and required when bundling multiple runs.

Does the HDMI input accept DVI or DisplayPort sources?
Yes, with the appropriate adapter or interface cable for DVI or Dual-Mode DisplayPort sources.

What warranty applies and where can I get support?
The transmitter carries the Crestron 3-year limited warranty. For pairing help or project pricing, Contact Creation Networks.
