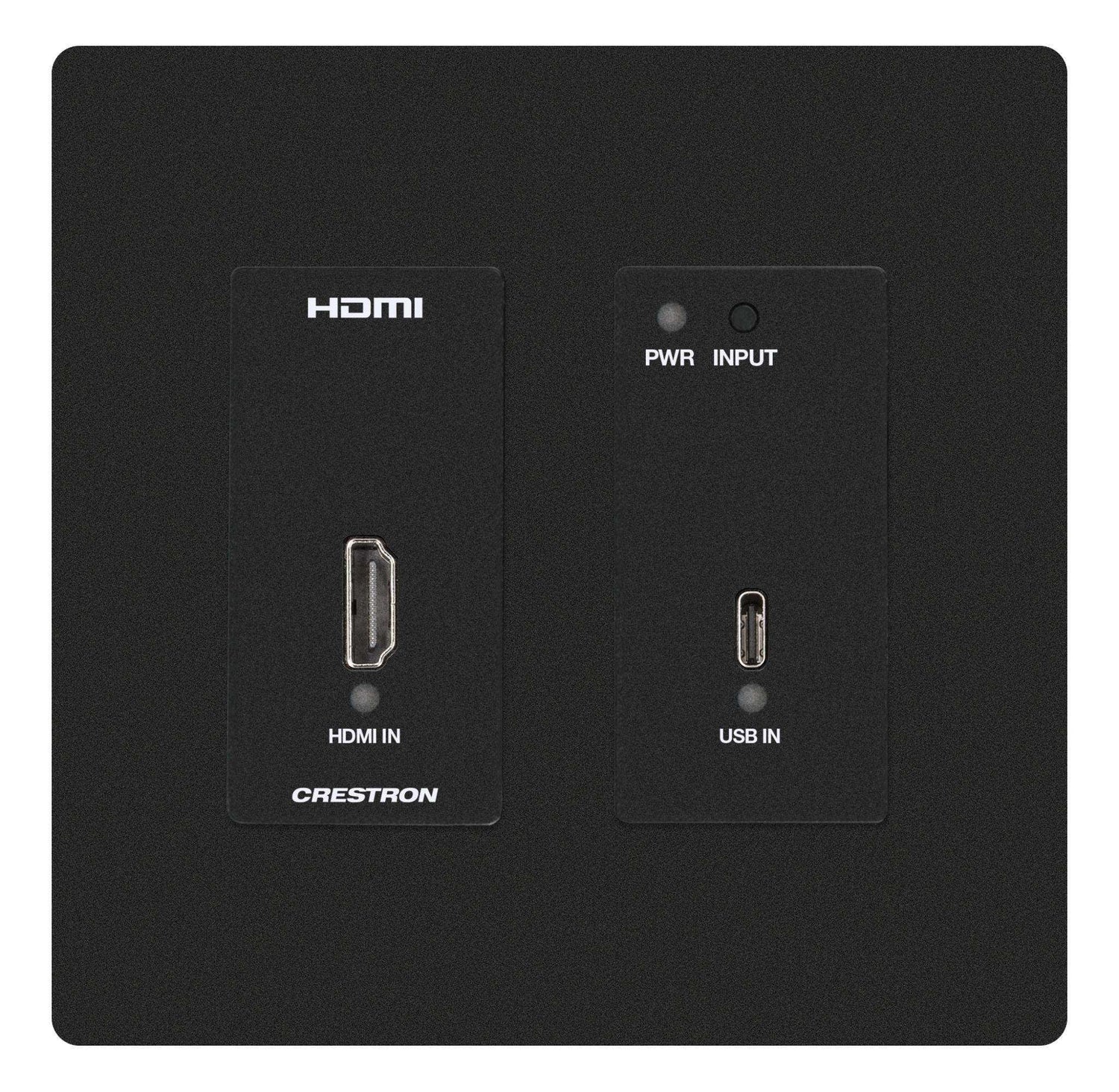

Crestron HD-TX-4KZ-211-2G-B DM Lite® 4K60 4:4:4 Transmitter and 2x1 Auto-Switcher for HDMI® and USB-C® DisplayPort™ Signal Extension over CATx Cable, Wall Plate, Black

Availability: Call for Availability
Crestron SKU: HD-TX-4KZ-211-2G-B
No reviews
Price:
$1,100.00

Description

The HD-TX-4KZ-211-2G is a DM Lite® 4K60 4:4:4 wall plate transmitter designed to interoperate with a DM Lite® receiver or DMPS Lite™ switcher. The HDMI® input of the HD-TX-4KZ-211-2G enables the transmission of an HDMI signal. The USB-C® input with DisplayPort™ Alt Mode capability enables the transmission of a DisplayPort AV signal. A CAT5e or higher twisted pair cable is used to connect the HD-TX-4KZ-211-2G to the DM Lite receiver or DMPS Lite switcher. For 1080p, WUXGA, and 2K signals, a cable length of up to 230 ft (70 m) is supported. For UHD and 4K signals, a cable length of up to 130 ft (40 m) is supported. 1

The HD‑TX‑4KZ‑211‑2G is available in two models: HD‑TX‑4KZ‑211‑2G-B (black) and HD‑TX‑4KZ‑211‑2G-W (white).

Interoperability with a DM Lite Receiver or DMPS Lite Switcher
The DM Lite output port of the HD-TX-4KZ-211-2G must be connected to a DM Lite input port of a DM Lite receiver or DMPS Lite switcher. Examples of supported DM Lite 4K60 4:4:4 receivers are the HD‑RX‑4KZ‑101, HD‑RXA‑4KZ‑101, HD‑RXC‑4KZ‑101, and HD‑RXCA‑4KZ‑101. Supported DM Lite 4K60 4:2:0 receivers are the HD‑RX‑101‑C‑E, HD‑RXC‑101‑C‑E, HD-RX-201-C-E, HD‑RX‑101‑C‑1G‑E, and HD‑RXC‑101‑C‑1G‑E. Supported DMPS Lite switchers are the HD‑PS622, HD‑PS621, HD‑PS402, HD‑PS401, and HD‑RX‑4K‑210‑C‑E(‑POE).

The HD-TX-4KZ-211-2G can be configured and controlled only when it is used with a DMPS Lite switcher. The web interface of the switcher can be used to configure the HD-TX-4KZ-211-2G. In addition, control system programming and .AV Framework™ software support of the HD-TX-4KZ-211-2G is hosted by the switcher.

4K60 4:4:4 and HDR Support
The HD-TX-4KZ-211-2G supports video resolutions up to 4K60 with 4:4:4 color sampling. HDR10, HDR10+, and Dolby Vision® video formats are also supported.2

Automatic Switching of Inputs
When the HD-TX-4KZ-211-2G is used with a DMPS Lite switcher, the web interface of the switcher or control system programming hosted by the switcher can be used to configure the AV switching behavior of the HD-TX-4KZ-211-2G. Switching between the HDMI and USB-C DisplayPort inputs can occur based on the last connected input or on the routing priority assigned to each input. In addition, the input selection push button on the front of the HD-TX-4KZ-211-2G enables the desired input to be selected manually.

Two-Gang Wall Plate Design
The HD‑TX‑4KZ-211-2G is designed to mount into a 2-gang U.S. electrical box or plaster ring (not included). The HD‑TX‑4KZ‑211‑2G can receive power from the remote DM Lite receiver (surface mountable only) or DMPS Lite switcher.3


  • Interoperability with a DM Lite® receiver or DMPS Lite™ switcher
  • Point-to-point extension of an HDMI® or USB-C® DisplayPort™ signal over a CAT5e or higher cable
  • USB-C input with DisplayPort Alt Mode capability
  • DM Lite transmission distance up to 130 ft (40 m) for UHD and 4K signals or up to 230 ft (70 m) for 1080p, WUXGA, and 2K signals
  • 4K60 4:4:4 capability
  • HDR10, HDR10+, and Dolby Vision® video formats
  • Compliance with HDCP 2.3
  • Automatic switching of HDMI and USB-C DisplayPort inputs
  • CEC (Consumer Electronics Control) pass-through capability
  • EDID pass-through capability
  • Two-gang wall plate design with black finish
  • Decorator style faceplate required (FP-G2-DM Series sold separately)
  • Power from the remote DM Lite receiver (surface mountable only) or DMPS Lite switcher
Video
Input Signal Types HDMI® (DVI and Dual-Mode DisplayPort™ interface compatible4) and DisplayPort over USB-C® (DisplayPort Alt Mode) with HDR10, HDR10+, Dolby Vision®, Deep Color, and 4K60 4:4:4 support2
Output Signal Type DM Lite® with HDR10, HDR10+, Dolby Vision, Deep Color, and 4K60 4:4:4 support2
Copy Protection HDCP 2.3
Resolutions Common resolutions are listed in the following table.
Scan Type Resolution Frame Rate Color Sampling Color Depth
Progressive 4096x2160 DCI 4K & 3840x2160 4K UHD 24 Hz 4:4:4 12 bit
30 Hz 4:4:4 12 bit
60 Hz 4:2:2 12 bit
60 Hz 4:4:4 8 bit
2560x1600 WQXGA 60 Hz 4:4:4 8 bit
1920x1080 FHD 1080p 60 Hz 4:4:4 12 bit
Interlaced (HDMI input only) 1920x1080 HD 1080i 30 Hz 4:4:4 12 bit
Note: The maximum supported resolution is 4K60 with 4:4:4 color sampling. Custom resolutions are supported at pixel clock rates up to 600 MHz. The USB-C DisplayPort input does not support interlaced video.
Audio
Input Signal Types HDMI, DisplayPort over USB-C (DisplayPort Alt Mode)
Output Signal Type DM Lite
Digital Formats Dolby Digital®, Dolby Digital EX, Dolby Digital Plus, Dolby® TrueHD, Dolby Atmos®, DTS®, DTS ES, DTS 96/24, DTS HD® High Res, DTS-HD Master Audio, DTS:X®, LPCM up to 8 channels
Communications
HDMI HDCP 2.3, EDID, CEC pass-through
USB‑C HDCP 2.3, EDID, CEC pass-through
DM Lite HDCP 2.3, EDID pass-through
Connectors
HDMI IN (1) HDMI Type A connector, female;
HDMI digital video/audio input;
DVI and Dual-Mode DisplayPort interface compatible4
USB IN (1) USB Type‑C® connector, female;
Digital video/audio input using DisplayPort Alt Mode5
DM LITE OUT (1) 8‑pin RJ‑45 yellow connector, female, shielded;
DM Lite output port for connection to a DM Lite receiver or DMPS Lite™ switcher1, 6
24V 0.7A (1) 2-pin 3.5 mm detachable terminal block;
24VDC power input;
Power pack sold separately, required only if the HD-TX-4KZ-211-2G is used with a wall plate receiver3
Ground (1) Chassis ground lug
Controls and Indicators
PWR (1) LED, indicates that power is being applied to the device. Amber indicates that the device is booting. Green indicates that the device is operational.
AUTO (1) Push button for enabling or disabling automatic switching of inputs;
(1) LED, green indicates that automatic switching of inputs is enabled
SETUP (1) Push button for Ethernet setup (applicable only when used with a DMPS Lite switcher);
(1) LED, red indicates that the SETUP push button is pressed
LINK (1) LED, green indicates that a DM Lite link is established
INPUT (1) Push button for manual input selection
HDMI IN (1) LED, green indicates that the HDMI input is routed to an output, and amber indicates that a source is detected but is not routed to an output
USB IN (1) LED, green indicates that the USB-C DisplayPort input is routed to an output, and amber indicates that a source is detected but is not routed to an output
RESET (1) Push button for restoring the device to factory default settings
DM LITE OUT (2) LEDs on RJ‑45 connector.
Green indicates that a DM Lite link is established;
Flashing amber indicates non‑HDCP video, and solid amber indicates HDCP video.
Power
Power Pack Input: 100-240VAC
Output: 24VDC 0.75A
Model: PW-2407WUL (sold separately, required only if the HD-TX-4KZ-211-2G is used with a wall plate receiver)3
Environmental
Temperature 32° to 104°F (0° to 40°C)
Humidity 20% to 90% RH (non-condensing)
Construction
Composition Metal housing and bracket with black polycarbonate front label overlay
Mounting Mounts in a 2-gang (or larger) 2-inch (51 mm) deep U.S. electrical box or plaster ring (not included)
Faceplate Requires a decorator style faceplate (FP-G2-DM Series, sold separately)
Dimensions
Height 4.12 in. (105 mm)
Width 3.57 in. (91 mm)
Depth 1.66 in. (42 mm)
Weight
7.33 oz (208 g)
Compliance
Regulatory Model: M202046004
Intertek® Listed for US and Canada, CE, IC, FCC Part 15 Class A digital device
Maximum DM Lite Transmission Distance
Resolution Frame Rate (Hz) Color Sampling Color Depth Cable Type1
DM-CBL-ULTRA DM® Ultra Cable DM-CBL-8G DM 8G® Cable or CAT5e (UTP) or Higher
1920x1080 HD 1080i 30 4:4:4 12 bit 230 ft (70 m) 195 ft (60 m)
1920x1080 FHD 1080p 60 4:4:4 8, 12 bit
1600x1200 UXGA 60 4:4:4 8, 12 bit
2048x1080 DCI 2K 60 4:4:4 8, 12 bit
1920x1200 WUXGA 60 4:4:4 8, 12 bit
2048x1152 QWXGA 60 4:4:4 8, 12 bit
2560x1080 UWFHD 60 4:4:4 8 bit
2560x1440 WQHD Reduced Blanking 60 4:4:4 8 bit
2560x1600 WQXGA Reduced Blanking 60 4:4:4 8 bit
2048x1152 QWXGA 60 4:4:4 12 bit
3840x2160 4K UHD and 4096x2160 DCI 4K 30 4:2:2 12 bit
30 4:4:4 8 bit
60 4:2:0 8 bit
3840x2160 4K UHD and 4096x2160 DCI 4K 30 4:4:4 12 bit 130 ft (40 m) 100 ft (30 m)
60 4:2:0 12 bit
60 4:2:2 12 bit
60 4:4:4 8 bit
