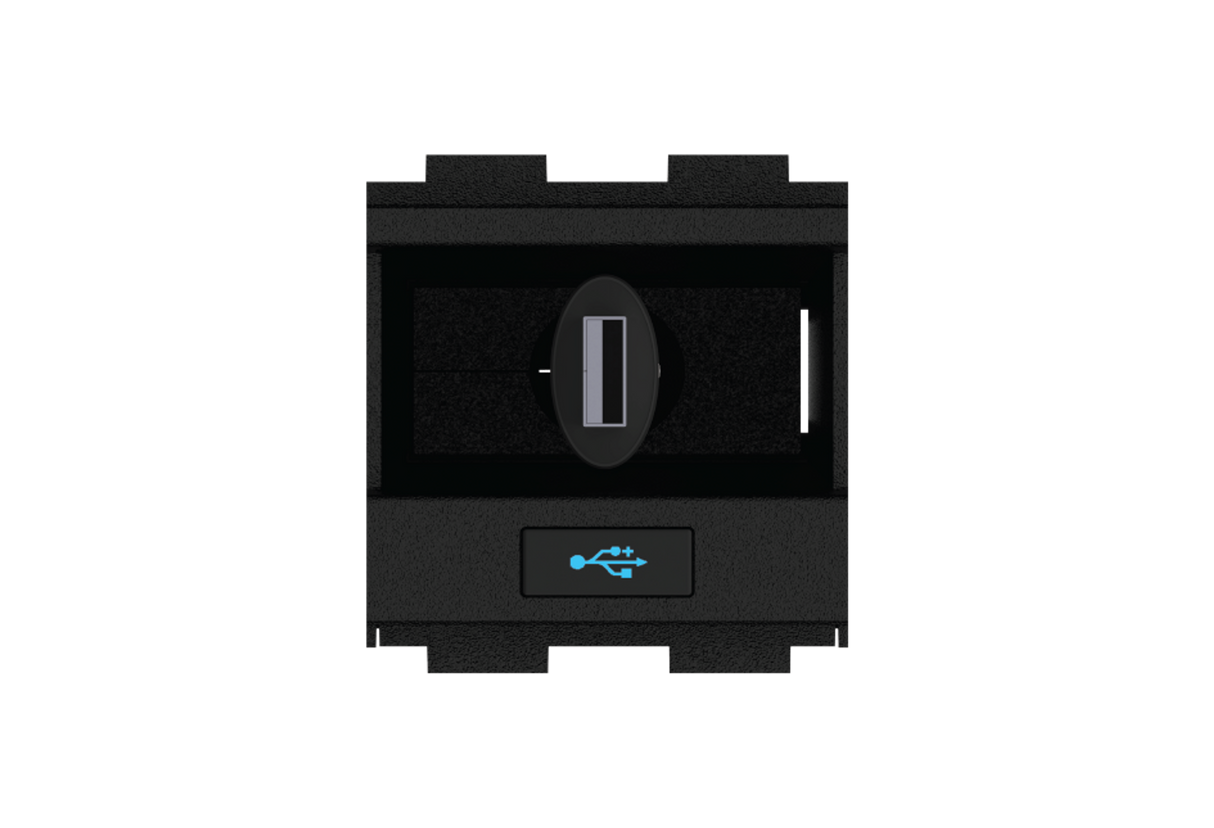

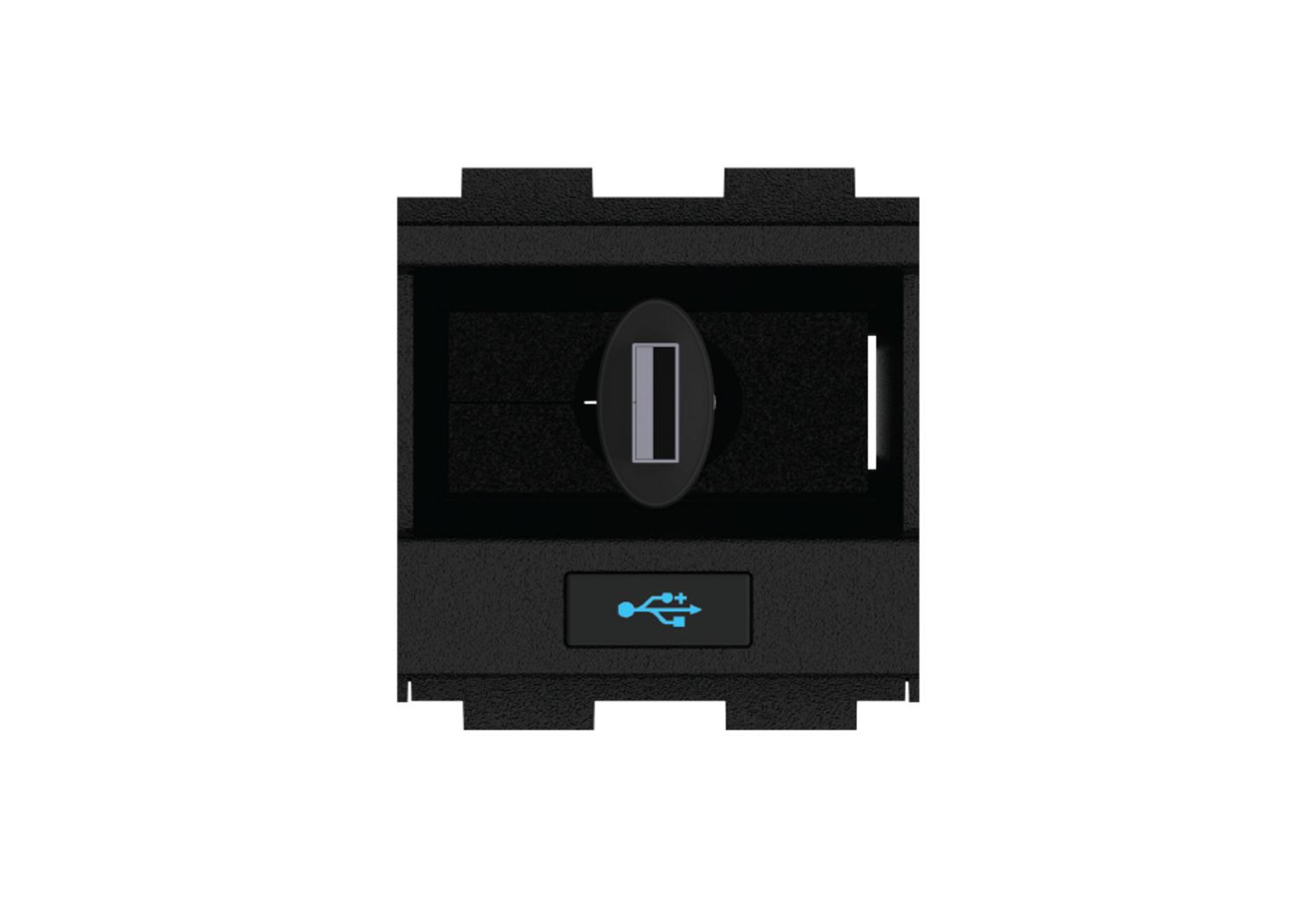

Crestron FT2A-CBLR-GR-USB – Gravity Retractor for FT2 FlipTop, USB 2.0
Product Overview
The Crestron FT2A-CBLR-GR-USB is a gravity-assisted retractable USB 2.0 cable module for Crestron FT2 Series FlipTop cable management systems. It provides a precision track-and-pulley retraction mechanism for a USB Type-A to Type-B cable that extends up to 2.83 ft (0.86 m) above the table and retracts by lifting the cable vertically.
Product Description
Unlike the spring-powered one-touch retractors, the FT2A-CBLR-GR-USB uses a gravity-assisted mechanism: the cable pulls out as needed and retracts smoothly when lifted. The USB Type-A connector at the tabletop end connects to laptops and computers, while the USB Type-B adapter tail beneath the table connects to codecs, extenders, and similar AV equipment. Note that this cable connects a computer to a peripheral device and cannot be used for PC-to-PC connections. The module occupies two consecutive module spaces in any FT2 Series FlipTop chassis. A blue LED icon indicator illuminates when installed in FT2 ELEC Series FlipTops; it remains visible but unlit in FT2 MECH Series. The under-table retractor enclosure requires a minimum 28.4 in. (722 mm) vertical clearance below the table surface. For ordering, visit creationnetworks.net.
Key Features
- USB 2.0 gravity-assisted retractable cable; USB Type-A male (tabletop) to USB Type-B male (tail)
- Pull-out length: up to 2.83 ft (0.86 m) above table; tail length: 4 ft (1.2 m) below table
- Precision track-and-pulley retraction: cable retracts by lifting vertically (no button press required)
- Blue LED backlit connector type icon indicator
- Occupies 2 module spaces in any FT2 Series FlipTop chassis
- Retractor enclosure: 25.80 × 4.07 × 1.85 in. (656 × 104 × 47 mm)
- Minimum under-table clearance: 28.4 in. (722 mm)
- Operating temperature: 32°–113°F (0°–45°C)
- Compatible with both FT2 ELEC and FT2 MECH Series FlipTops
Typical Applications
- Conference room and boardroom tables providing USB connectivity for laptop and computer connections to room AV systems
- Training rooms with FT2 FlipTop systems where USB device connections to codecs or extenders are needed
- Presentation tables requiring cable management with gravity retraction for a simple, pull-and-release operation
- Installations where under-table clearance is sufficient (≥28.4 in.) for the gravity retractor enclosure height
Technical Specifications
| Specification | Value |
|---|---|
| Cable Type | USB 2.0 |
| Connectors | USB Type-A male (tabletop); USB Type-B male (tail) |
| Pull-Out Length | Up to 2.83 ft (0.86 m) above table |
| Tail Length | 4 ft (1.2 m) below table |
| Retraction Mechanism | Gravity-assisted track and pulley (lift to retract) |
| LED Indicator | Blue LED icon (illuminated in ELEC series; visible in MECH series) |
| Module Spaces | 2 consecutive spaces in FT2 FlipTop chassis |
| Retractor Dimensions (H × W × D) | 25.80 × 4.07 × 1.85 in. (656 × 104 × 47 mm) |
| Min. Under-Table Clearance | 28.4 in. (722 mm) |
| Operating Temperature | 32°–113°F (0°–45°C) |
| Humidity | 10–90% RH, non-condensing |
| FlipTop Compatibility | FT2 ELEC and FT2 MECH Series |
Frequently Asked Questions
- What is the difference between the gravity retractor and the one-touch spring retractor?
- The gravity retractor (FT2A-CBLR-GR series) uses a precision track-and-pulley mechanism where the cable retracts by lifting it vertically. The one-touch spring retractor (FT2A-CBLR-1T series) uses an electrically clutched spring mechanism with a pushbutton to retract automatically. The gravity retractor requires significantly more under-table clearance (28.4 in. vs. 11.6 in. for the one-touch variants).
- Can this USB cable be used to connect two computers?
- No. The FT2A-CBLR-GR-USB connects a USB Type-A host (computer) to a USB Type-B peripheral (codec, extender, or similar device). PC-to-PC connections are not supported with a standard USB cable of this type.
- Is this compatible with the FT2 MECH Series FlipTop?
- Yes. The FT2A-CBLR-GR-USB is compatible with both FT2 ELEC and FT2 MECH Series FlipTop systems. The LED indicator illuminates only in ELEC Series installations; in MECH Series it remains visible but unlit.
