Crestron CLK-YL-YRL216-CR2-619 – Yale Assure Lever Lock Push Button, Satin Nickel

Product Overview

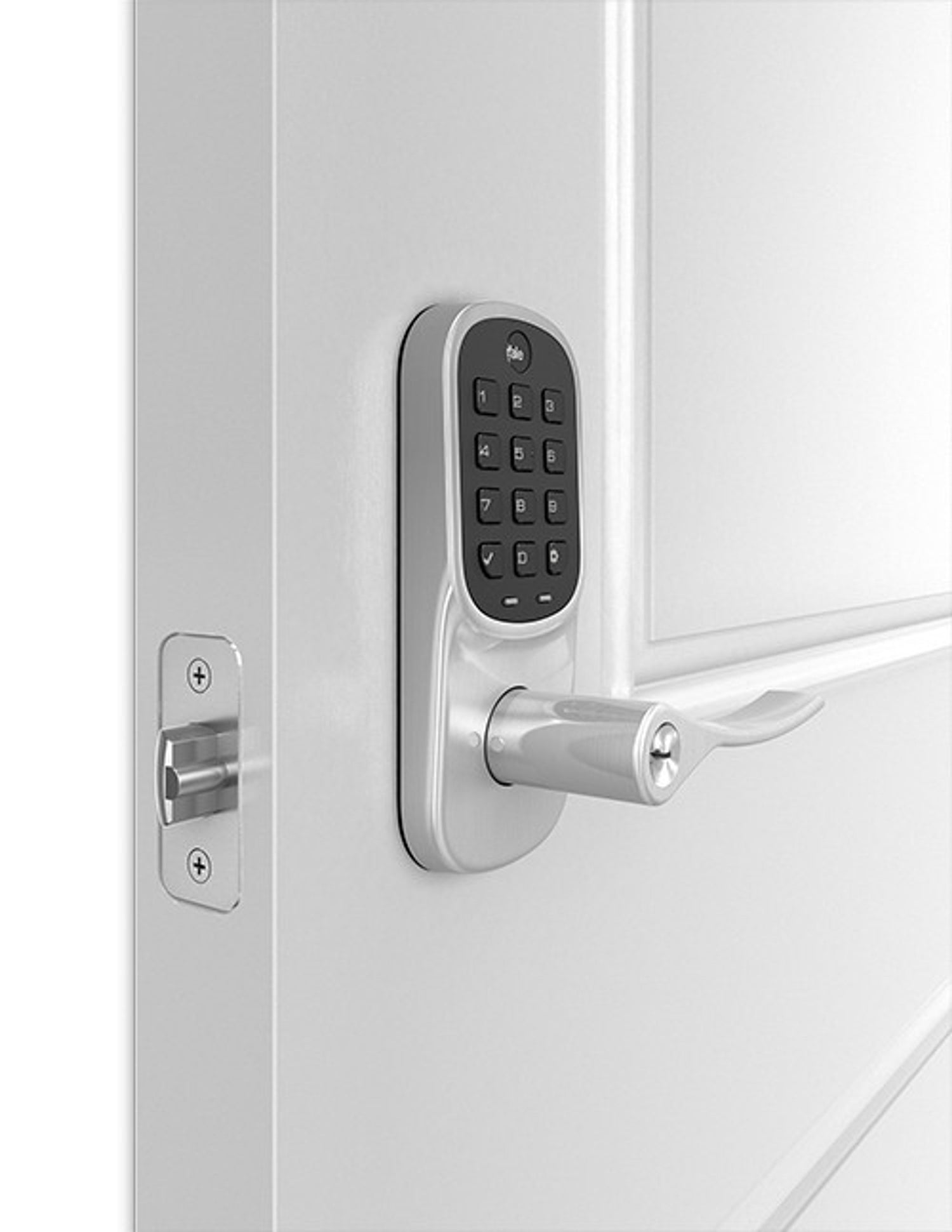

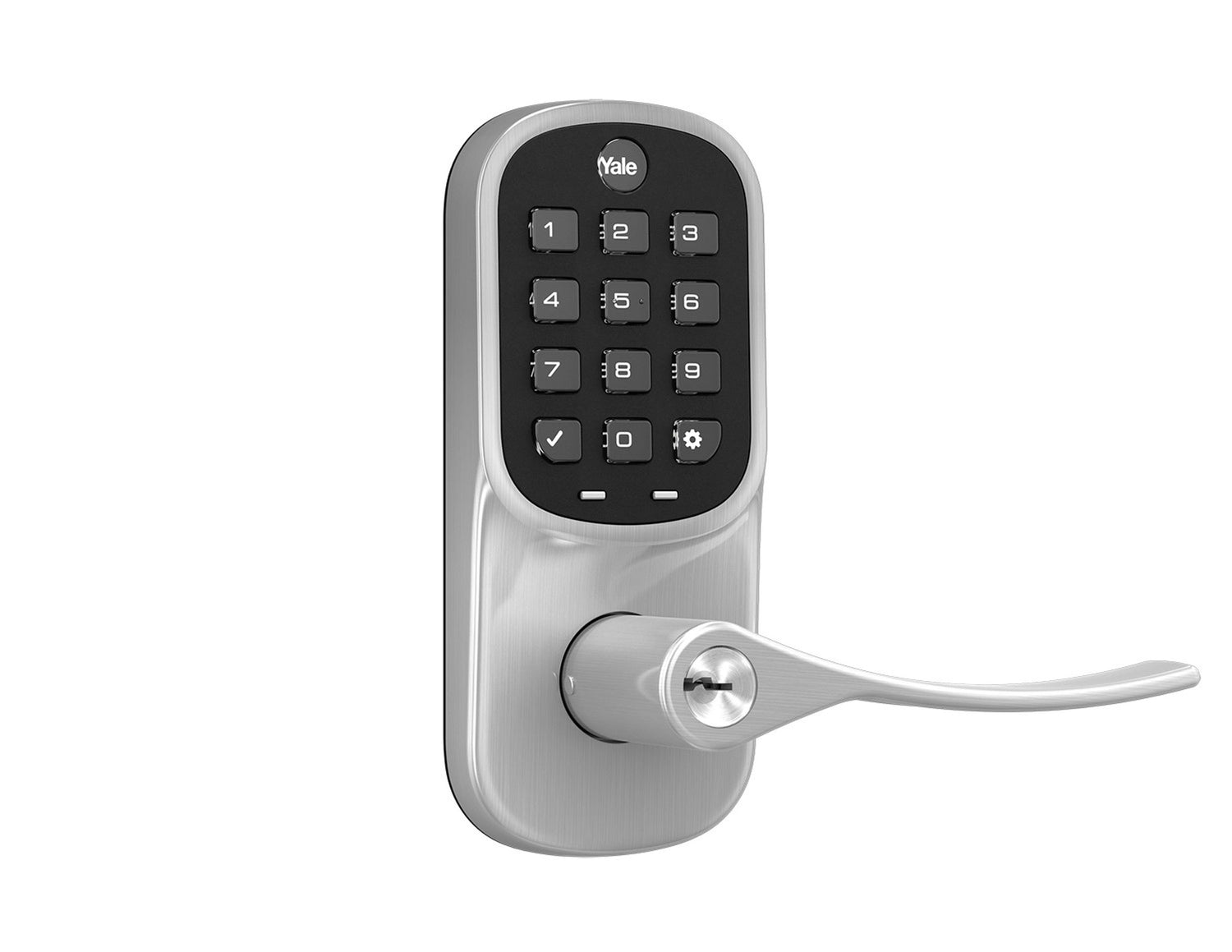

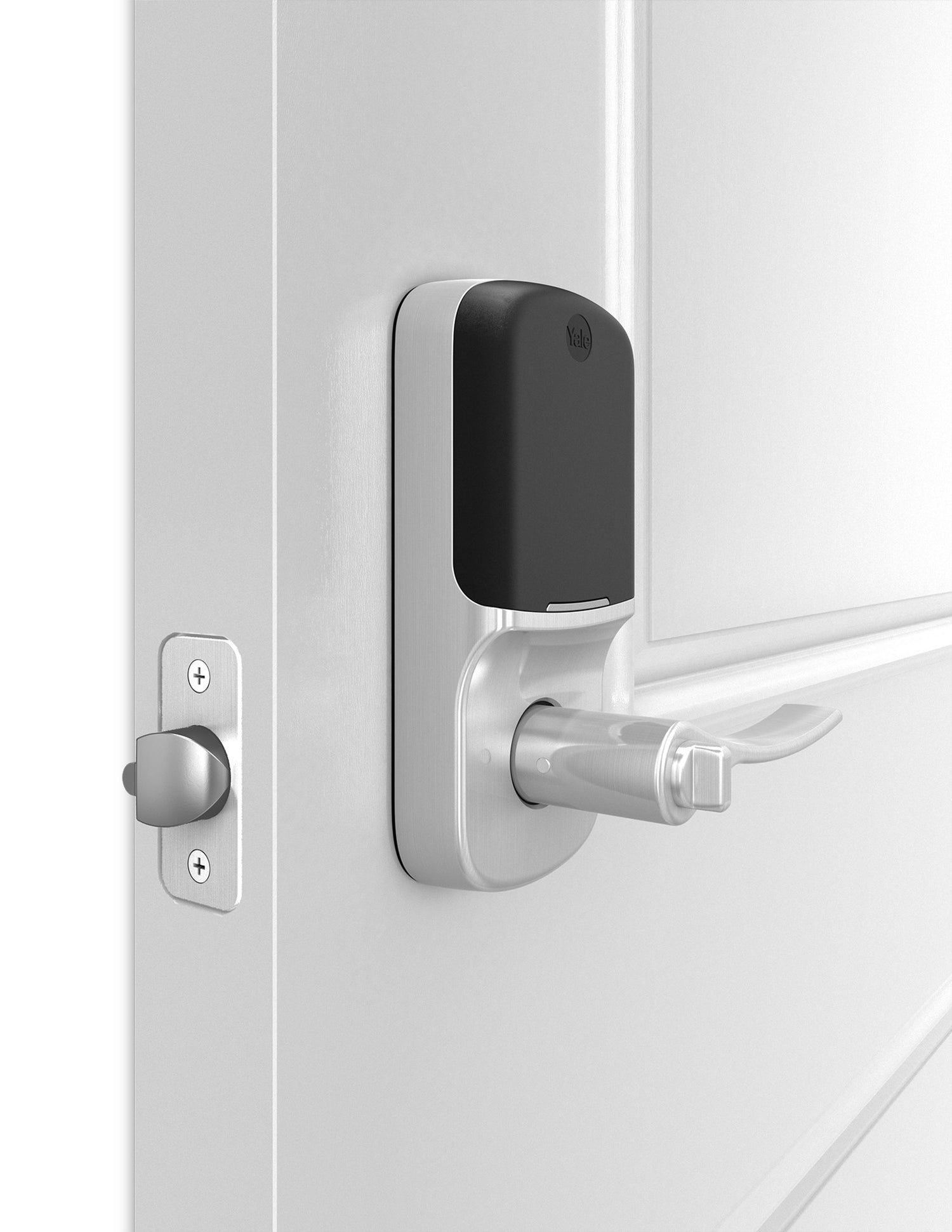

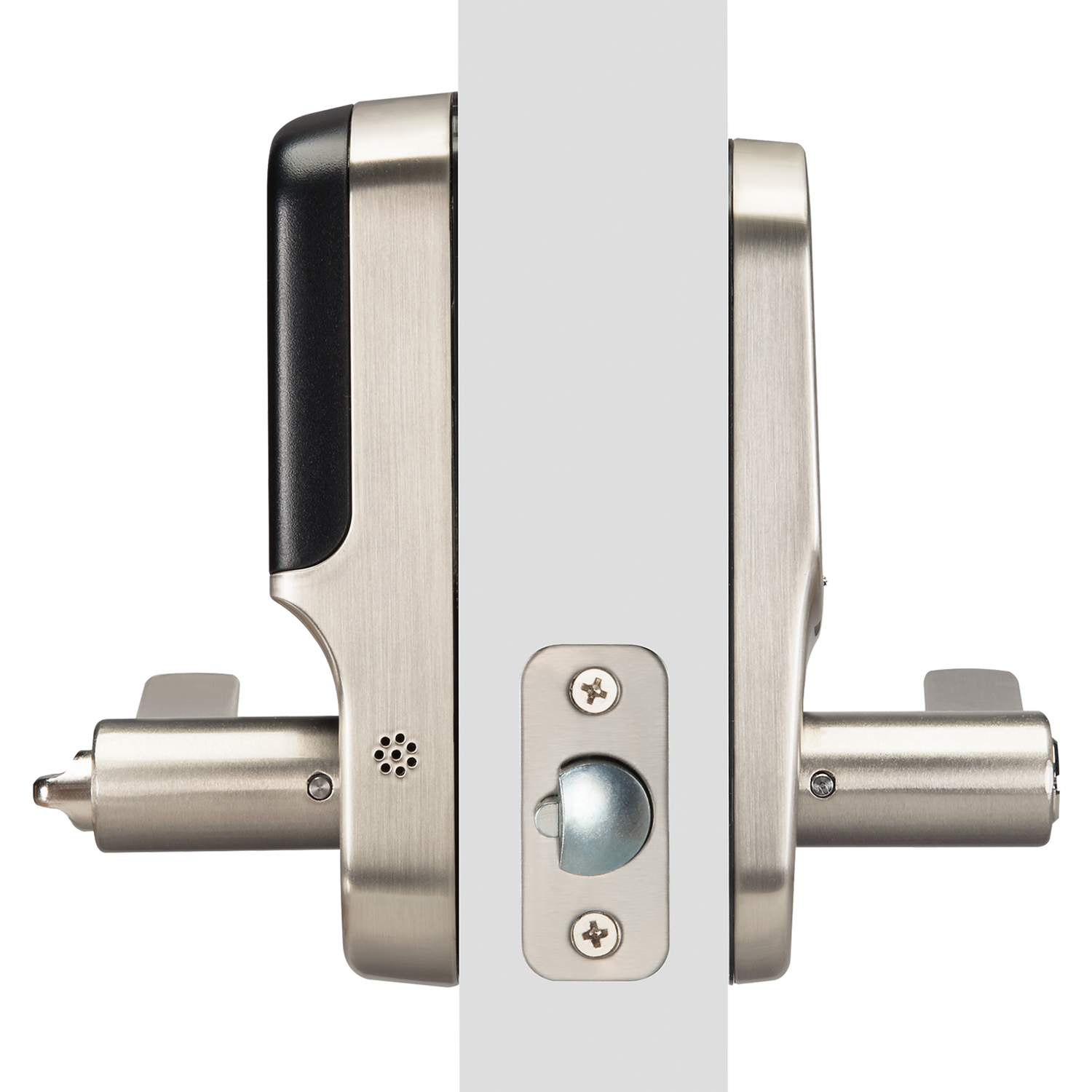

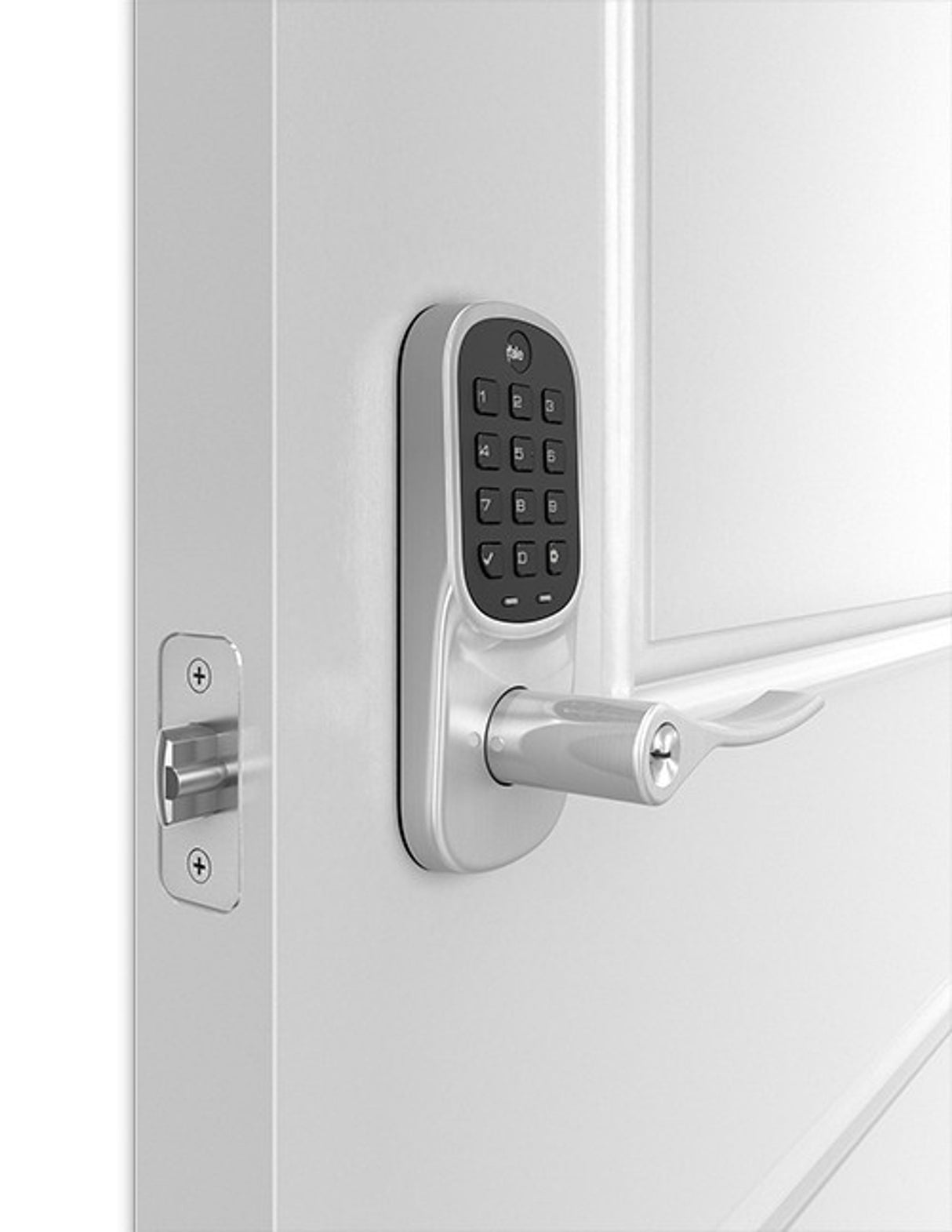

The Crestron CLK-YL-YRL216-CR2-619 is the Yale Assure Lever Lock with a push button keypad, infiNET EX wireless integration, and satin nickel finish. It provides AV integrators and Crestron programmers with a lever-format smart lock that communicates natively with Crestron control systems, enabling door lock control and status reporting within a unified automation program. The lock replaces a standard cylindrical lever lockset without modifications to the door preparation.

Product Description

Operating over the infiNET EX 2.4 GHz encrypted mesh wireless protocol, the CLK-YL-YRL216-CR2-619 delivers real-time two-way communication with Crestron processors and gateways. The backlit push button keypad accepts up to 250 individual user PIN codes, making it suitable for multi-user environments including offices, hospitality spaces, and managed residential properties. The motorized deadlatch retracts automatically on valid credential entry, and interior egress requires no keypad interaction. The satin nickel finish aligns with the ANSI 619 designation used across commercial door hardware specifications.

Key Features

• Yale Assure Lever form factor — drop-in replacement for cylindrical lever lockset, no door modifications needed
• Push button backlit keypad — supports up to 250 user PIN codes
• infiNET EX wireless — encrypted 2.4 GHz mesh, native Crestron protocol, no separate bridge required
• Two-way status reporting — lock/unlock state, tamper alerts, and low battery notifications to Crestron processor
• Motorized deadlatch — auto-retracts on valid credential; free egress from interior
• Battery powered — eliminates door wiring; integrates into infiNET EX wireless infrastructure
• Satin nickel (619) finish — standard ANSI commercial finish, coordinates with widespread hardware specs
• ANSI/BHMA Grade 2 certified — meets commercial security requirements

Typical Applications

• Interior office doors and suite entries in Crestron-automated commercial buildings
• Conference room access control linked to Crestron room scheduling systems
• Hospitality guest room corridors with Crestron property automation
• Managed residential entry doors in Crestron smart home installations
• Retrofit upgrades in buildings with existing infiNET EX wireless infrastructure

Technical Specifications

• Model: CLK-YL-YRL216-CR2-619
• Finish: Satin Nickel (619)
• Lock Type: Motorized deadlatch with lever handle
• Keypad Type: Push button, backlit
• Wireless Protocol: infiNET EX (2.4 GHz encrypted mesh)
• User Codes: Up to 250
• Power: 4 AA batteries
• Standard Backset: 2-3/4 in (adjustable to 2-3/8 in)
• Door Thickness: 1-3/8 in to 1-3/4 in
• Certifications: UL Listed, ANSI/BHMA Grade 2

FAQs

What is the difference between the CLK-YL-YRL216 (push button) and the CLK-YL-YRL226 (touchscreen)?

The YRL216 uses a tactile push button keypad, while the YRL226 uses an illuminated touchscreen keypad. Both support infiNET EX wireless and the same number of user codes. The push button version is generally preferred in applications where tactile feedback is important or where the lock will be used in dim lighting without screen illumination.

Does the CLK-YL-YRL216-CR2-619 require any wiring to the door frame?

No. The lock is entirely battery powered using 4 AA batteries. All communication with the Crestron system occurs over the infiNET EX wireless mesh, requiring only a compatible Crestron infiNET EX gateway on the network.

Can this lever lock be used on fire-rated doors?

Check local code and the door assembly's fire rating certification. This lock must be verified for compatibility with the specific fire-rated door assembly before installation in code-regulated applications.
