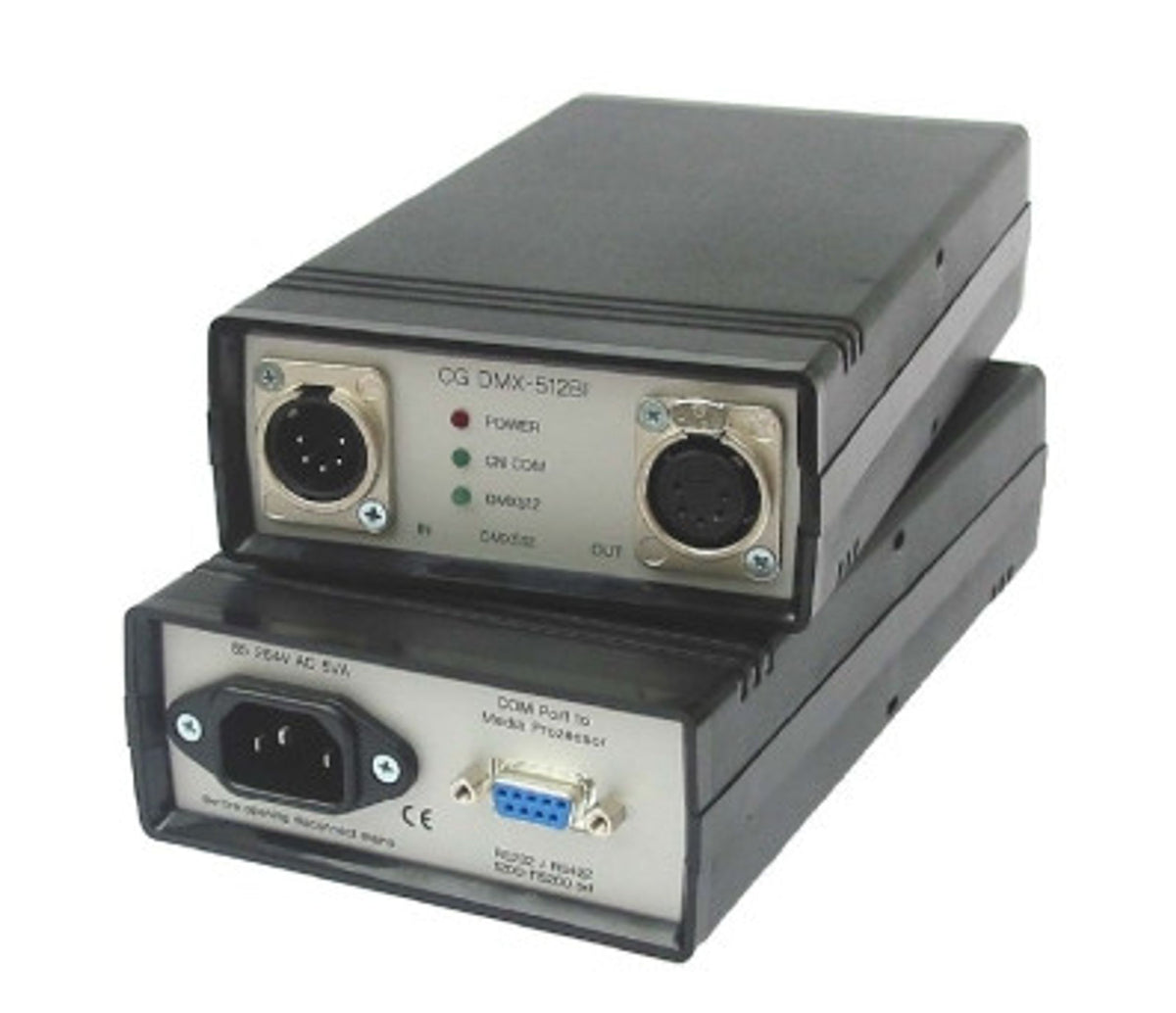

Crestron CGDMX-512BI – Bidirectional DMX-512 Interface
Product Overview
The Crestron CGDMX-512BI is a bidirectional DMX-512 gateway that bridges Crestron lighting control systems with DMX-512 lighting networks. It enables Crestron processors to send and receive DMX-512 data, providing full integration between Crestron-controlled environments and DMX-based fixtures, dimmers, and lighting controllers.
Product Description
The CGDMX-512BI connects to a Crestron control processor via the Cresnet network and provides a standard 5-pin XLR DMX-512 interface for connection to lighting equipment. The bidirectional design allows the Crestron system to not only send DMX commands but also to read DMX data back from the lighting network, enabling feedback and status monitoring. This makes it suitable for installations where lighting state awareness and two-way communication between control and lighting systems is required. The unit supports the full 512-channel DMX universe.
Key Features
- Bidirectional DMX-512 communication (send and receive)
- Connects to Crestron processors via Cresnet
- Supports full 512-channel DMX universe
- Standard 5-pin XLR DMX-512 connector
- Enables lighting state feedback for two-way system awareness
- Compatible with Crestron 2-Series and 3-Series control processors
- Compact form factor for flexible installation placement
Typical Applications
- Integrating Crestron control with theatrical and architectural DMX lighting systems
- Houses of worship requiring unified control of DMX stage and ambient lighting
- Entertainment venues with mixed Crestron/DMX lighting infrastructure
- Broadcast and production studios with DMX-controlled lighting grids
- Conference centers and auditoriums requiring lighting preset integration
Technical Specifications
- Model: CGDMX-512BI
- Interface: DMX-512, bidirectional
- DMX Connector: 5-pin XLR
- Control Interface: Cresnet
- Channels: 512 DMX channels (full universe)
- Communication: Bidirectional (send and receive)
Frequently Asked Questions
Q: What is the difference between the CGDMX-512BI and a standard unidirectional DMX interface?
A: The BI (bidirectional) model can both transmit DMX commands to lighting fixtures and read DMX data back from the network, enabling feedback and status in the Crestron program. A unidirectional interface only sends DMX output.
Q: Does this unit require external power?
A: The CGDMX-512BI receives power from the Cresnet network, so no separate power supply is required.
Q: How many DMX universes does this unit support?
A: The CGDMX-512BI provides a single DMX universe (512 channels). Multiple units can be deployed for multi-universe installations.
