Product Overview

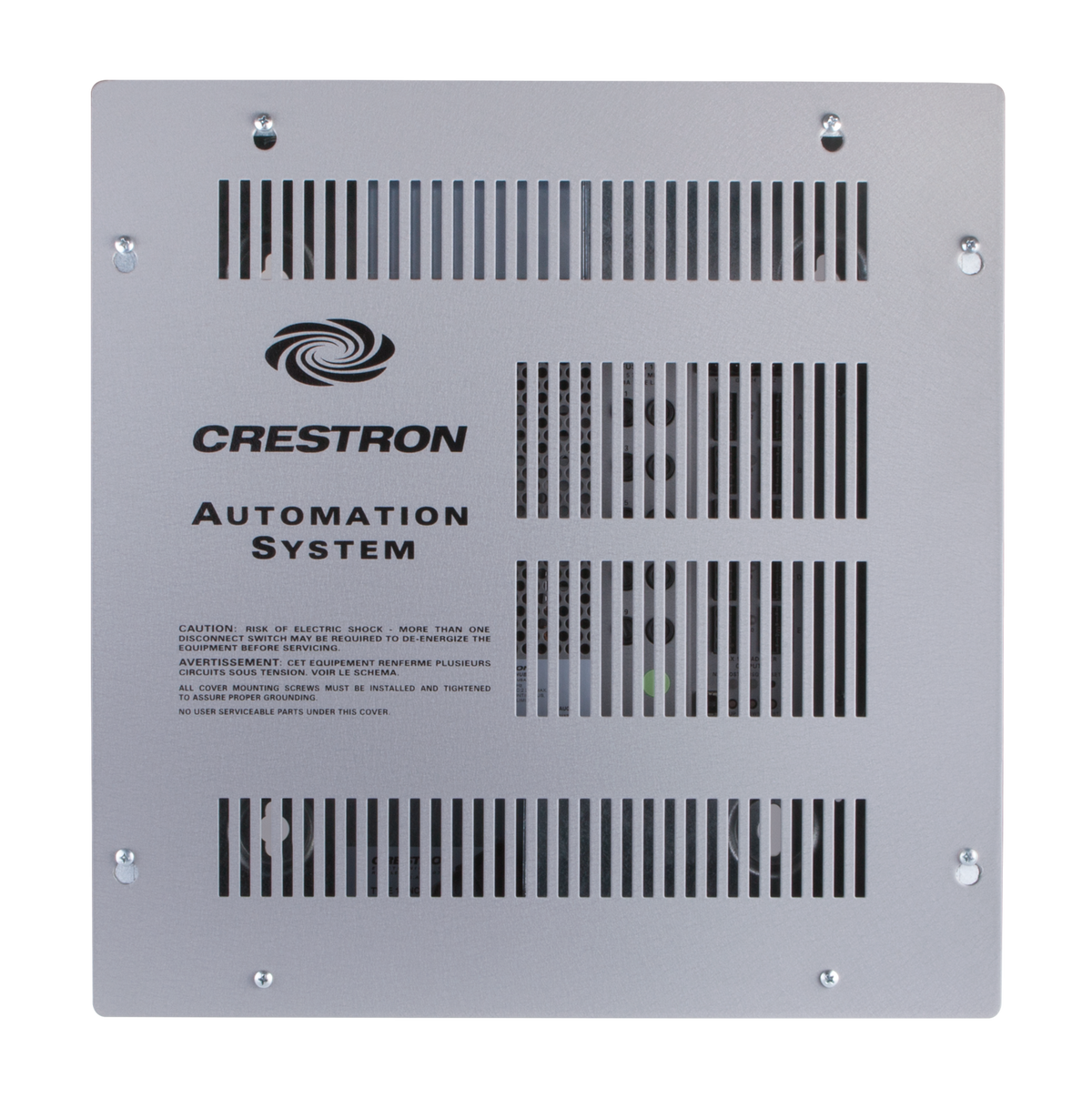

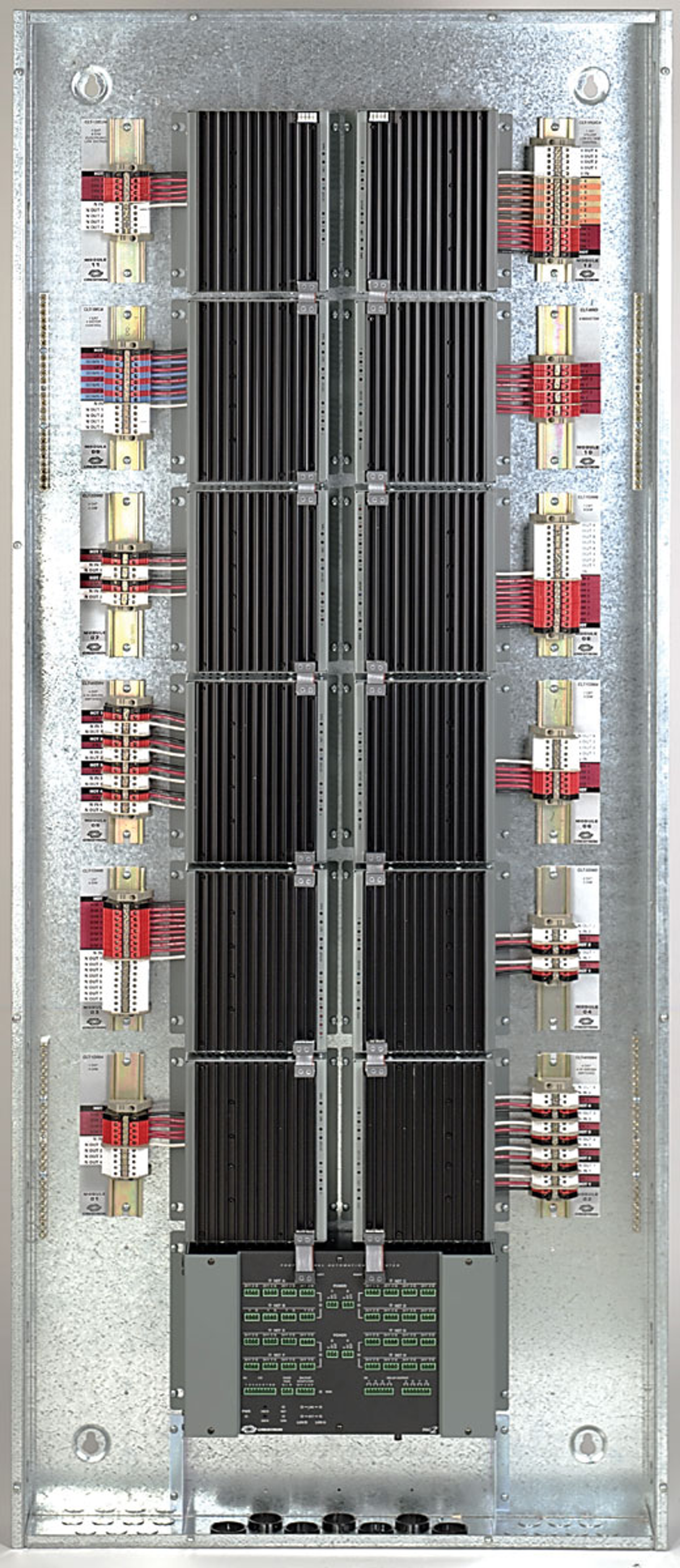

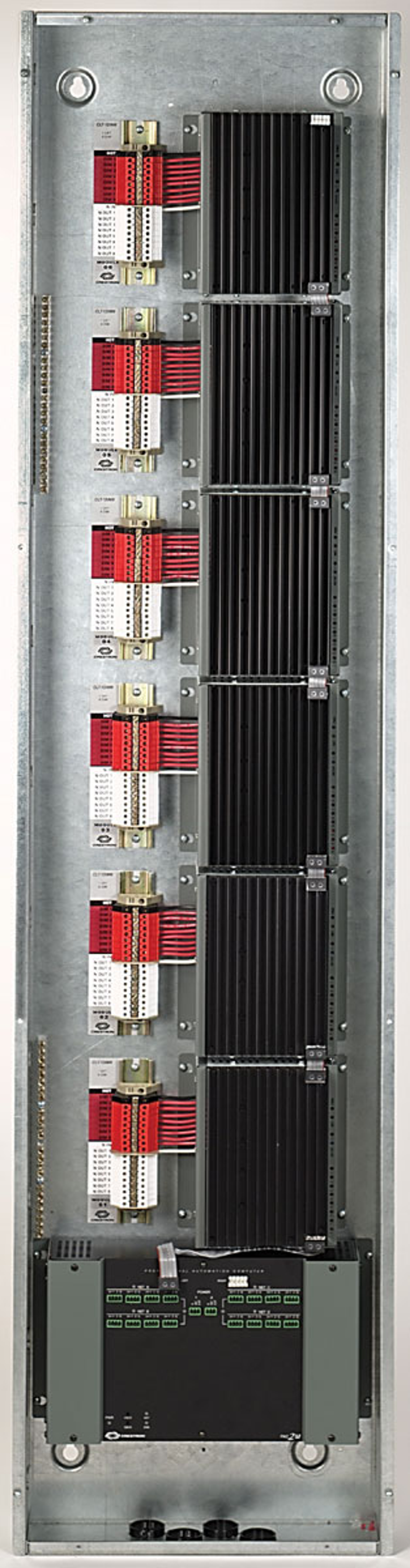

The Crestron CAEN-4X2 is a 4-module high by 2-module wide steel automation enclosure designed to house Crestron CLX Series lighting control modules, DIN-AP4, or DIN-AP4-R control systems. Suitable for surface or flush wall-mount installation, this enclosure supports both centralized and distributed lighting control configurations in residential and commercial facilities.
Product Description
The CAEN-4X2 provides a clean, manageable installation environment with separate high- and low-voltage compartments, pre-drilled mounting positions, and abundant provisions for wire termination. Multiple electrical knockouts accommodate field-installed conduit entries. A single Cresnet cable connects an entire network of distributed enclosures, supporting keypads, touch screens, wall box dimmers, shade controllers, and other peripherals. Convection cooling keeps operation silent and reliable. A vented front cover is included. The 16-gauge galvanized steel backbox is UL and C-UL listed for US and Canada.
Key Features
- Mounts CLX Series lighting modules, DIN-AP4, and DIN-AP4-R control systems
- 4 modules high x 2 modules wide configuration supports dense circuit density
- Surface or flush wall-mount installation options
- Separate high- and low-voltage compartments with included partitions
- Pre-drilled for CLX modules, CLT terminal blocks, CAEN-BLOCK-CENCN-2-POE bridges, and CAEN-UMP mounting kits
- Grounding blocks included; 16-gauge galvanized steel construction
- Convection cooled — no fans required
- UL Listed for US and Canada
Typical Applications
- Centralized lighting control in commercial office buildings and hospitality facilities
- Distributed lighting and shade control in multi-zone residential installations
- Class 2 and Class 3 voice, data, security, and RF structured wiring applications
- Mid-size conference room or floor-level control equipment enclosures
- Satellite extension panels in multi-enclosure Crestron lighting networks
Technical Specifications
| Parameter | Value |
|---|---|
| Configuration | 4 modules high x 2 modules wide |
| Height | 38.25 in (97.16 cm) |
| Width | 25.50 in (64.77 cm) |
| Depth | 4.00 in (10.16 cm) |
| Weight | 43.0 lbs (19.50 kg) |
| Construction | 16-gauge galvanized steel backbox, perforated gray steel cover |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Humidity | 10% to 90% RH (noncondensing) |
| Cooling | Convection (no fans) |
| Compliance | UL Listed for US and Canada |
Frequently Asked Questions
Q: Can the CAEN-4X2 be used with non-CLX modules?
A: Yes. Non-CLX third-party contactors and modules can be mounted using Crestron CAEN-UMP universal mounting plates (sold separately), which fit into the standard module slots.
Q: How many circuits can a CAEN-4X2 support?
A: Circuit capacity depends on the specific CLX modules installed. The CAEN-4X2 accommodates 4 module rows across 2 columns; each module slot can hold a CLX dimmer or relay module supporting multiple circuits per slot.
Q: Is the cover extension kit compatible with this enclosure?
A: Yes. The CAEN-CK-4X2 cover extension kit adds 1.5 inches of depth to accommodate excess wiring and third-party devices that require additional clearance.
