Overview

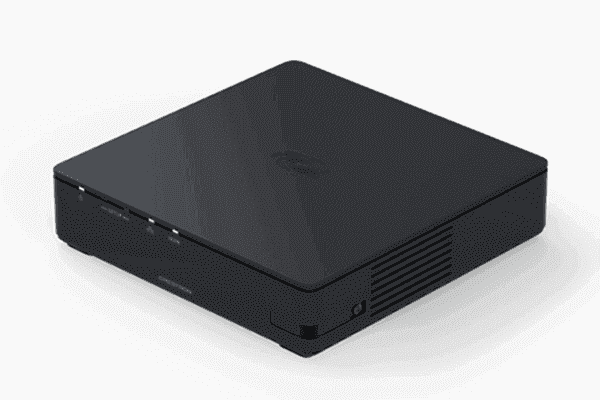

The Crestron AirMedia® Series 3 Receiver 100 (AM‑3100‑WF) enables secure wireless collaboration in the modern digital workspace. Easy to deploy and manage, install the Receiver in conference rooms, huddle rooms, lounges, lobbies, or almost any space to establish a productive meeting environment.
Connect and Present
The Receiver can be placed beneath, mounted beside, or mounted invisibly behind a display to implement a smart room with wireless collaboration. It features AirMedia wireless presentation capability, an HDMI® output to the display (up to 4K), and various USB interfaces for wireless conferencing and touch interactivity. Connect your laptop, smart phone, tablet, AirMedia Connect adapter, or other source type to instantly present the source image on the display.
AirMedia Wireless Presentation
With AirMedia technology, users can wirelessly present content from laptops, smartphones, and tablet devices via built in Wi‑Fi® network capabilities or via an external Wi‑Fi® wireless network. Present content from desktop or laptop computers using downloadable client software, the AirMedia extension for the Google Chrome™ web browser, or Miracast® screen mirroring technology (Windows® 10 computers only). Present content from Android™ and iOS® mobile devices with the AirMedia app.
Add-on Control Options
Enable manual control of the AM‑3100‑WF by adding a 7 in. or 10 in. Crestron® TS- or TSW- 70 series touch screen. The touch screen provides an additional view of the room schedule and meeting details as well as controls for input source selection, display power on/off, and display volume and mute. Add a Power over Ethernet occupancy sensor (CEN‑ODT‑C‑POE) to control display or digital signage on/off based on room occupancy or vacancy.
Hybrid Wireless Connectivity with the AirMedia Adapter (Coming Soon)
As an alternative to software based AirMedia wireless presentation, the AM‑3100‑WF is compatible with the AirMedia Presentation Adapter (AM‑TX3‑100). Simply plug the adapter into a personal device's USB‑C® port to connect to the AM‑3100‑WF. The adapter communicates wirelessly with the system using built‑in Wi‑Fi network capabilities to display content up to a 4K/30 resolution. During presentations, content is scaled to the selected HDMI output resolution.
Features
- Complete room solution enables secure wireless AirMedia® presentation from laptops, smartphones, tablet devices, and AirMedia Connect Adapters
- Enables smart automation via intelligent display control, personal device control, occupancy detection, and integration into a broader connected ecosystem
- Enterprise-grade security and content encryption protects privacy and ensures compliance with IT policies
- XiO Cloud® service support for remote provisioning and management (coming soon)
- AirMedia Canvas enables content sharing with simultaneous windows for multi-user collaboration. Present up to two sources out of the box or up to nine sources with a software license (sold separately, coming soon)
- Wireless conferencing and presentation allows for collaboration with in‑room and remote participants (coming soon)
- Integrates with Appspace® digital signage software platform for content display when system is not in use (coming soon)
- Integrates with optional Kaptivo® Whiteboard Device to display and share whiteboard content (coming soon)
Specification
Crestron AM-3100-WF Specifications
| Communications | |
| Ethernet | 100/1000 Mbps, auto-switching, autonegotiating, autodiscovery, full/half duplex, TCP/IP, UDP/IP, DHCP, SSL, TLS3, SSH, SFTP (SSH File Transfer Protocol), IEEE 802.1x, Active Directory authentication, HTTPS web browser setup and XiO Cloud service, 802.3af compliant |
| Wi-Fi | Dual-band 802.11a/b/g/n/ac/ax (2.4 GHz & 5 GHz); Up to 100 ft (30 m) range at 80 Mbps, subject to site‑specific conditions |
| AirMedia | Via Ethernet: IPv4, mDNS, TLS, AES1; Via wireless access point: IEEE 802.11/b/g/n/ac/ax, 2.4 GHz or 5 GHz |
| USB Host | USB 2.0 for connecting a USB conferencing peripheral; USB 3.0 for connecting a USB conferencing peripheral |
| USB Device | USB 3.0 for computer console (installer setup and firmware update) or conference system |
| HDMI Output | HDCP 2.2, EDID, CEC; Supports management of HDCP and EDID |
| AirMedia1 | |
| OS Support | Apple® iOS®, Android™, Windows 10, Windows 11, macOS®, Chrome OS™ |
| Video Frame Rate | Up to 30 fps, audio supported NOTE: Audio is not supported on Android devices. |
| Output Resolutions | 640x480@60Hz, 800x600@60Hz, 1024x768@60Hz, 1280x720@50Hz (720p50), 1280x720@60Hz (720p60), 1280x800@60Hz, 1366x768@60Hz, 1440x900@60Hz, 1600x900@60Hz, 1600x1200@60Hz, 1680x1050@60Hz, 1920x1080@50Hz (1080p50), 1920x1080@60Hz (1080p60) NOTE: All video inputs will be scaled to the selected HDMI output resolution. |
| Bitrate Peak | 0.25 to 8.5 Mbps, variable depending on content complexity |
| Bitrate Average | 1.4 Mbps typical NOTES:
|
| Audio Format | Stereo |
| Wireless Conferencing | |
| OS Support | Windows 10 |
| Supported Conferencing Services |
Microsoft Teams software; |
| Supported Conferencing Peripherals | For a list of supported conferencing peripherals, refer to OLH 1001764. |
| Video | |
| Input Signal Types | AirMedia; Simultaneous display of up to four sources with AirMedia Canvas |
| Maximum Input Resolutions | AirMedia presentation: 1920x1080@30Hz (1080p30); AirMedia Connect Adapter: 3840x2160@30Hz (4K30) NOTE: All video inputs will be scaled to the selected HDMI output resolution. |
| Output Signal Types | HDMI (DVI compatible4) |
| HDMI Output Resolutions | 1280x720@50Hz (720p50), 1280x720@60Hz (720p60), 1280x800@60Hz,5 1366x768@60Hz,5 1440x900@60Hz,5 1600x900@60Hz,5 1600x1200@60Hz, 1680x1050@60Hz,5 1920x1080@50Hz (1080p50), 1920x1080@60Hz (1080p60), 3840x2160@30Hz (2160p30), 3840x2160@50Hz (2160p50), 3840x2160@60Hz (2160p60) NOTE: All video inputs will be scaled to the selected HDMI output resolution. |
| Background & Logo File Support | GIF, JPEG, PNG |
| Audio | |
| Input Signal Types | AirMedia |
| Output Signal Type | HDMI |
| Input/Output Format | 2 channel LPCM |
| NOTE: Audio input signals are passed to the output without any processing. Volume control capability requires a display device with discrete volume, up, down, and mute commands available via CEC, IP, IR, or RS‑232. | |

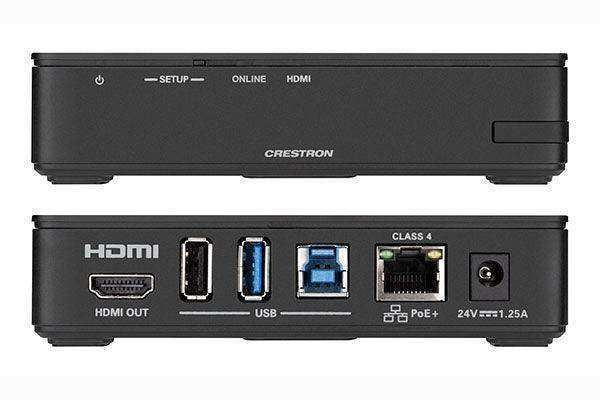

| Connectors | |
| microSD | For future use |
| HDMI OUTPUT | (1) HDMI Type A connector; HDMI digital video/audio output (DVI compatible4) |
| USB | (2) USB Type A connectors; For future use (1) USB Type B connector; USB 3.0 device port for computer console |
| LAN PoE+ | (1) 8-pin RJ-45 connector; 100Base-TX/1000Base-T Ethernet port and PoE+ Class 4 |
| 24VDC 1.25A | (1) 2.1 x 5.5 mm DC power connector; 24VDC power input; PW‑2412WU power pack sold separately |
| Controls and Indicators | |
| PWR | (1) White LED, indicates operating power supplied via the local power pack or PoE+ |
| RESET | (1) Recessed push button for hardware reset |
| SETUP | (1) Recessed push button for onscreen IP address display and for pairing the device to an AM‑TX3‑100; (1) White LED, indicates pairing status |
| ONLINE | (1) White LED, indicates control system connection |
| HDMI OUT | (1) White LED, indicates HDMI signal presence at the HDMI output |
| microSD | For future use |
| LAN PoE+ | (2) LEDs, green LED indicates Ethernet link status, amber LED indicates Ethernet activity |
| Power | |
| Power over Ethernet | IEEE 802.3af Class 4 Powered Device |
| Power Pack (sold separately) | Input: 100-240VAC, 50/60 Hz; Output: 1.25A @ 24VDC; Model: PW‑2412WU |
| Power Consumption | 13.5 W (typical) |
| NOTE: When wireless conferencing is used, the receiver must be powered by either Power over Ethernet+ (PoE+) or a power pack (sold separately). | |
| Environmental | |
| Temperature | 32° to 104°F (-0° to 40° C) |
| Humidity | 10% to 90% RH (non‑condensing) |
| Heat Dissipation | 46.0 BTU/hr |
| Construction | |
| Chassis | Plastic, black finish, with (4) integrated mounting holes, vented sides |
| Mounting | Freestanding, surface mount |
| Dimensions | |
| Height | 1.21 in. (31 mm) |
| Width | 5 in. (127 mm) |
| Depth | 5 in. (127 mm) |
| Weight | |
| 11.64 oz (330 g) | |
| Compliance | |
|
Regulatory Model: M202018001 UL® Listed for US & Canada, CE, IC, FCC Part 15 Class B digital device |
|
