Shure MXA710B 4ft Linear Array Microphone (Black) - MXA710B-4FT

Product Overview

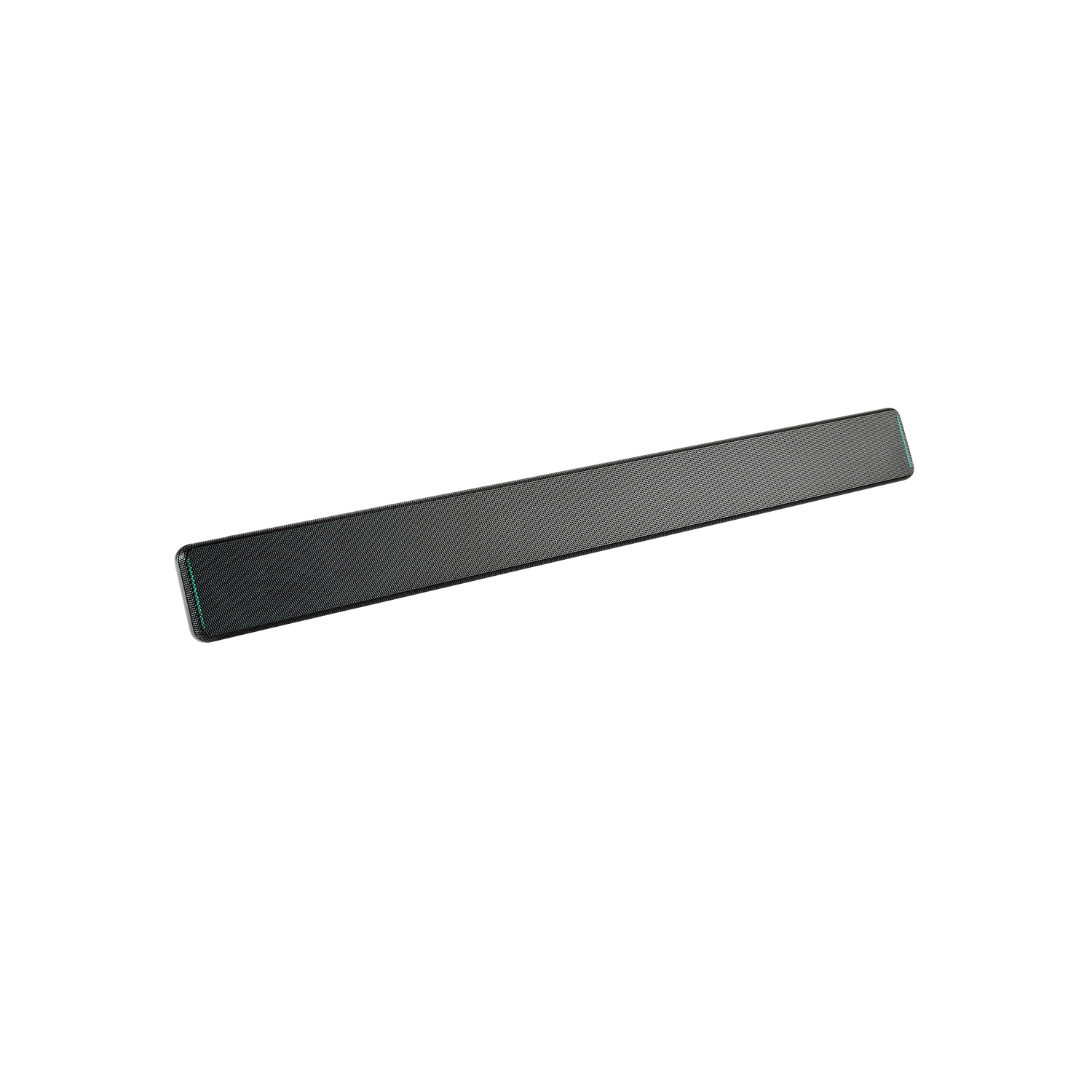

The Shure MXA710B-4FT is a 4 ft (120 cm) linear array microphone in black, built for premium AV conferencing in conference rooms and larger meeting spaces. Its linear form factor mounts on a wall, around a display, on the ceiling, or in a conference room table, giving AV integrators flexible placement without sacrificing room aesthetics. Onboard IntelliMix DSP and patent-pending Autofocus technology deliver echo- and noise-free conference audio. The black finish blends into dark displays, walls, and exposed-structure ceilings. As a Microsoft Teams certified array microphone, the MXA710 fits standardized enterprise AV deployments.

Product Description

The MXA710 linear array microphone captures clear speech for video conferencing while blending into modern meeting-space design. The 4 ft (120 cm) length suits medium to large conference rooms where wall, display-edge, or table placement positions the array close to participants. Steerable Coverage and onboard IntelliMix DSP provide automatic mixing, acoustic echo cancellation, and noise reduction, while Autofocus technology fine-tunes pickup in real time so audio stays consistent as people shift in their seats. The microphone connects to the Shure networked systems ecosystem over Dante and supports programming-free LED mute sync with Zoom Rooms, Microsoft Teams, Cisco, and Skype for Business when connected to an IntelliMix P300 or ANIUSB-MATRIX. It is UL 2043 plenum-rated and IP5X-rated for in-ceiling and exposed installations, and is configured at scale with Shure Designer software. A wide range of wall, ceiling, table, and stand accessories supports flexible mounting orientations.

Key Features

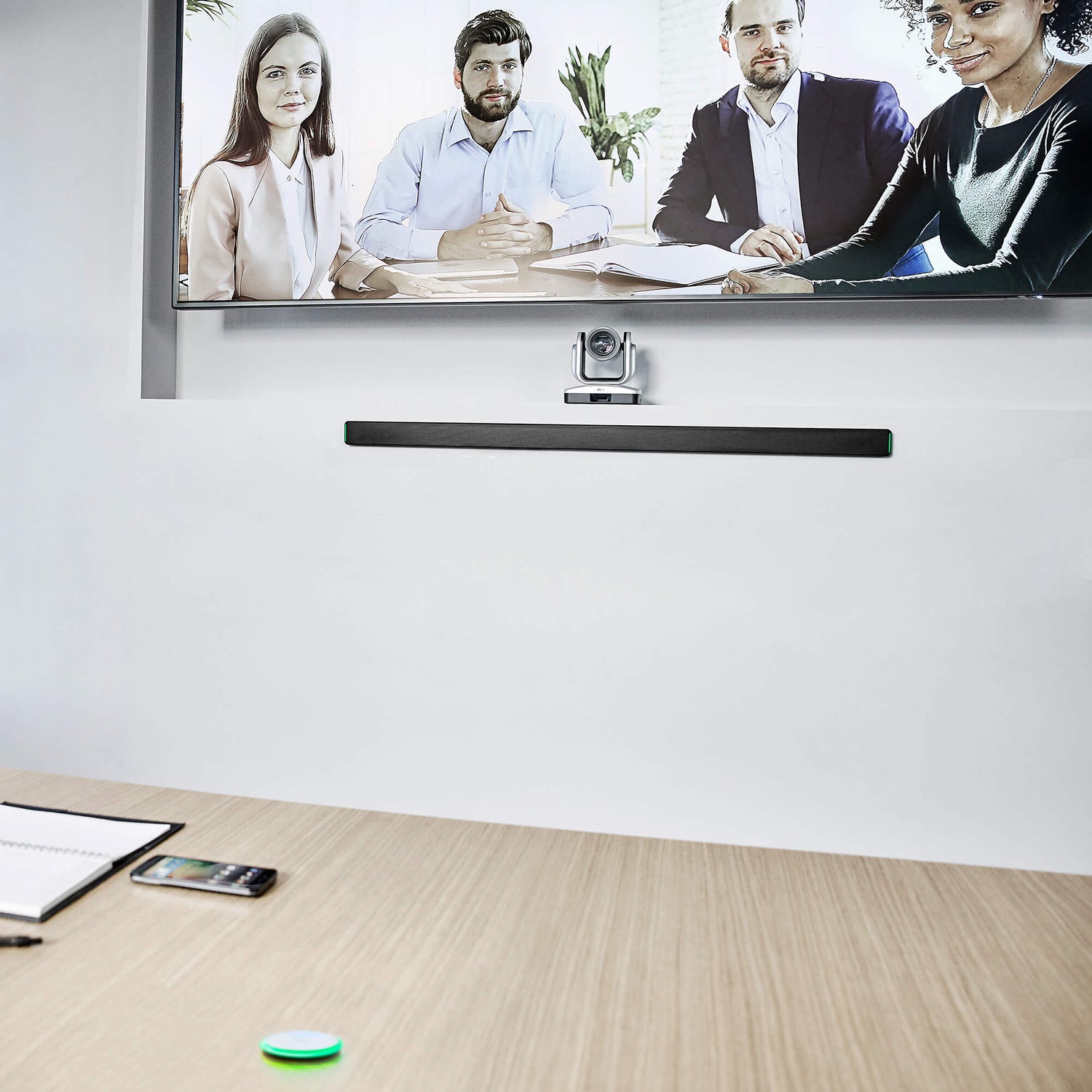

• Flexible Placement — The linear form factor mounts on a wall, around a display, on the ceiling, or flush in a conference table to suit the room layout.
• Onboard IntelliMix DSP — Integrated automatic mixing, acoustic echo cancellation, and noise reduction deliver conference-ready audio without separate processing hardware.
• Autofocus Technology — Patent-pending real-time tuning keeps pickup consistent even as participants move within the coverage area.
• Steerable Coverage — Coverage can be directed to capture talkers across the defined meeting area.
• LED Mute Sync — Programming-free mute sync with Zoom Rooms, Microsoft Teams, Cisco, and Skype for Business via IntelliMix P300 or ANIUSB-MATRIX.
• Plenum-Rated Construction — UL 2043 plenum-rated and IP5X-rated for in-ceiling and exposed commercial installations.
• Dual LED Status Bars — Configurable colors and brightness communicate mute and system status from either side of the array.
• Enterprise Security — Supports 802.1x, secure boot and storage, and AES encryption for control and audio data.

Typical Applications

• Conference room
• Boardroom
• Training room
• Multi-purpose room
• All-hands room
• Broadcast studio

Technical Specifications

Frequently Asked Questions

Where can the MXA710 be mounted?

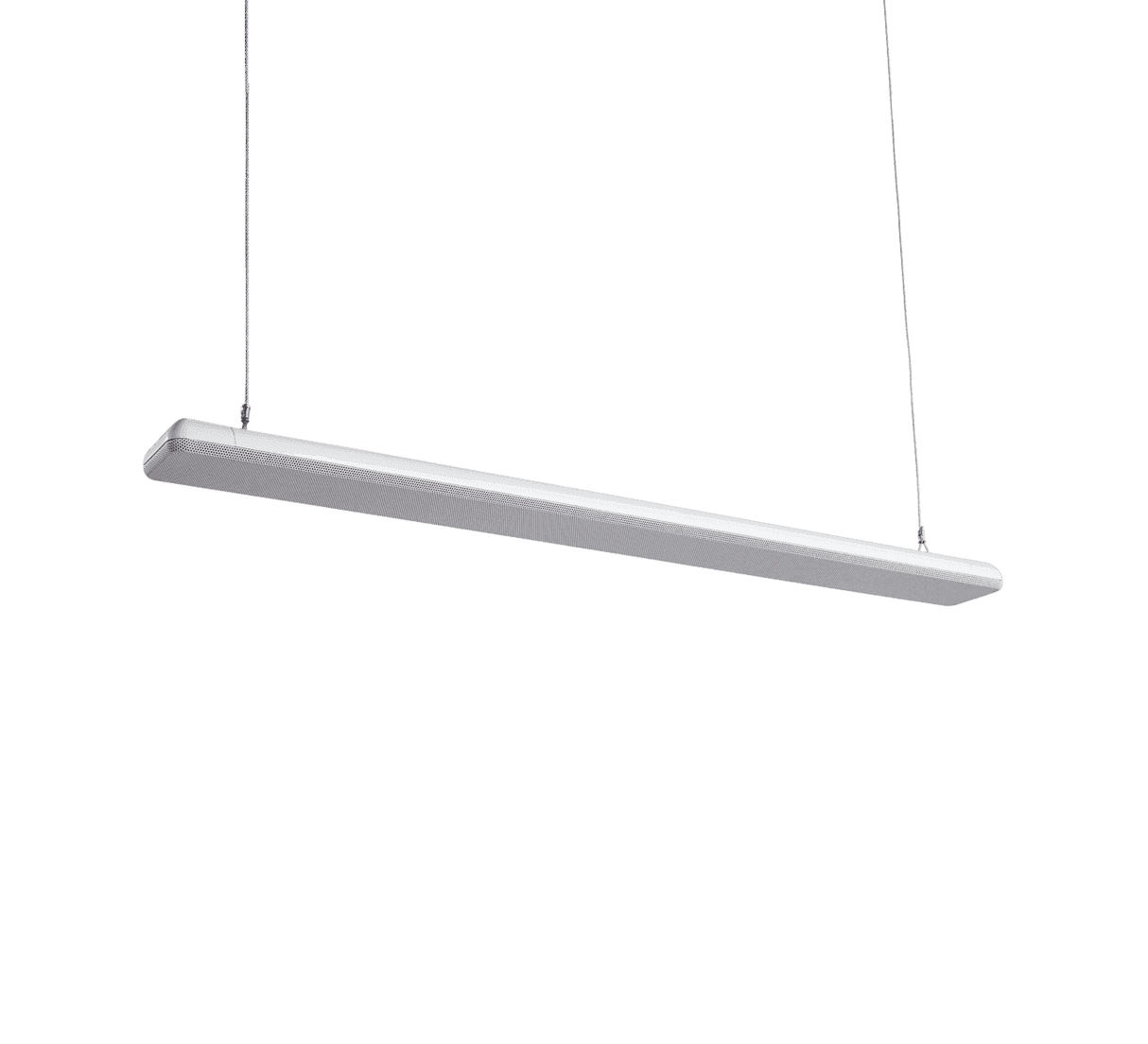

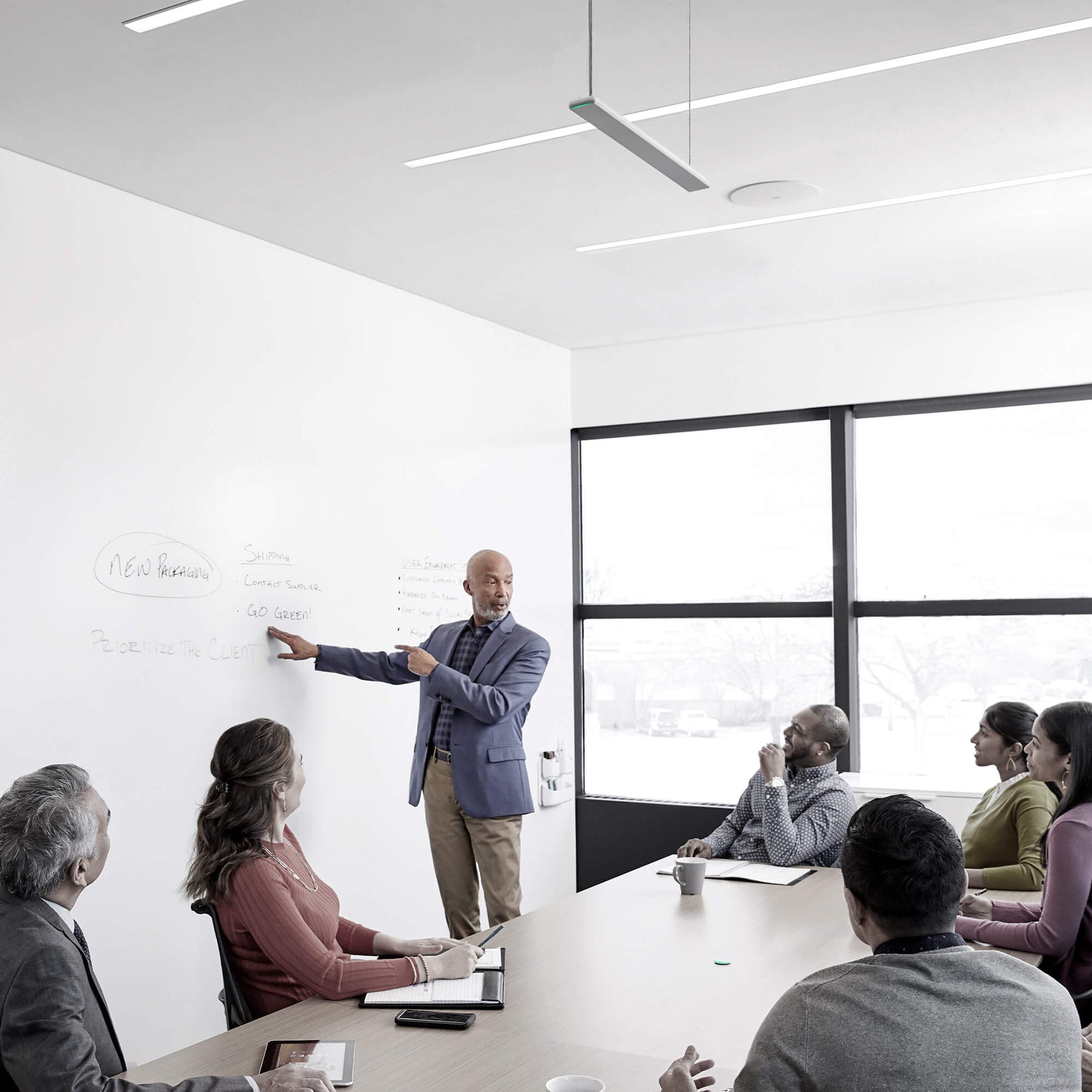

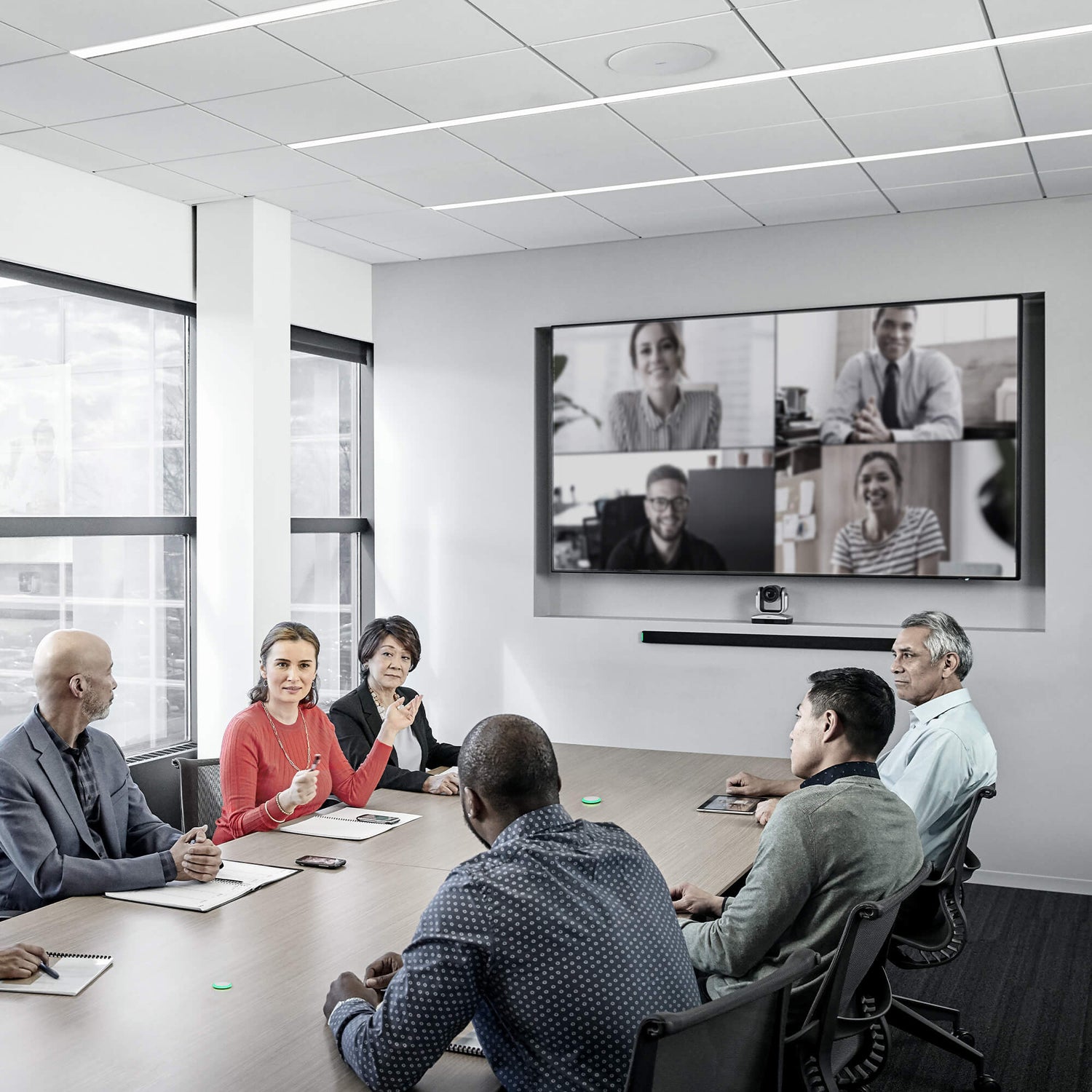

The linear array can be wall-mounted in horizontal or vertical orientation (on or flush to the surface), ceiling-mounted (on, suspended, or flush), or installed flush in a table. The A710-DS desktop stand and A710-MSA mic stand adapter are available for non-permanent placement.

Does it require an external DSP?
Onboard IntelliMix DSP handles automatic mixing, echo cancellation, and noise reduction. For LED mute sync and USB or analog connectivity to a codec, pair it with an IntelliMix P300 or ANIUSB-MATRIX.

Which conferencing platforms are supported?
It is certified for Microsoft Teams, verified for Cisco, and compatible with Zoom Rooms, Skype for Business, and ClickShare, with programming-free LED mute sync through a compatible Shure interface.

Is it suitable for in-ceiling installation?
Yes. The MXA710 is UL 2043 plenum-rated and IP5X-rated, making it suitable for plenum airspaces and exposed commercial AV installations.

How is it deployed at scale?
Shure Designer software configures multiple MXA710 microphones and other Microflex Ecosystem devices, streamlining enterprise-wide rollouts.

Compare with other Shure array options: MXA710 2 ft (Black) and MXA920 Ceiling Array Microphone (Black).
