Biamp Tesira DAN-1 CK Digital Audio Networking Card - 909.0407.900
Biamp Tesira DAN-1 CK Digital Audio Networking Card - 909.0407.900 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Biamp Tesira DAN-1 CK Digital Audio Networking Card - 909.0407.900
Product Overview

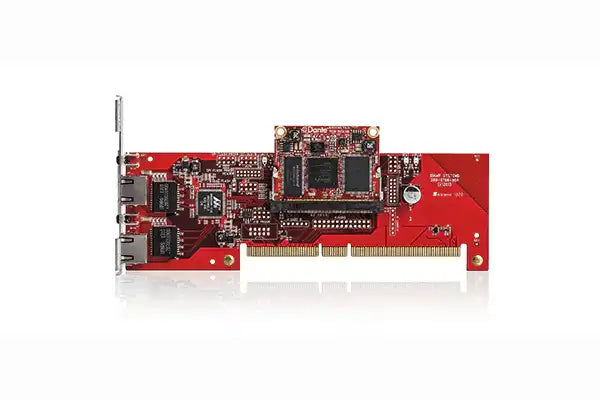

The Biamp Tesira DAN-1 CK is a digital audio networking card that adds Dante connectivity to Tesira SERVER and SERVER-IO devices. It bridges a Tesira system with other Dante audio devices over the network. Relevant searches include Tesira Dante card, 64-channel Dante networking interface, and AES67 audio networking card.
Product Description
Featuring the Brooklyn II module, the DAN-1 allows up to 64 by 64 channels of digital audio into and out of a Tesira system using the Dante protocol from Audinate, with up to 32 by 32 simultaneous flows. It is an AES67-enabled Dante endpoint with dual RJ-45 connections for primary and secondary networks, and explicit Dante input and output blocks are available in Tesira configuration software for signal routing. The card can be factory or field installed and can coexist with AVB-1 and SCM-1 cards, making the Tesira platform a powerful protocol-bridging system. It is RoHS compliant, AES grounded, and covered by the Biamp five-year warranty.
Key Features
- 64x64 Dante channels — Provides up to 64 by 64 channels of Dante digital audio into and out of a Tesira system.
- AES67-enabled endpoint — Operates as an AES67-enabled Dante endpoint for interoperable networked audio.
- Redundant connections — Dual RJ-45 connections support primary and secondary network paths.
- Software routing blocks — Explicit Dante input and output blocks in Tesira software simplify signal routing.
- Protocol bridging — Coexists with AVB-1 and SCM-1 cards, enabling Tesira to bridge Dante, AVB, and CobraNet.
Typical Applications
- Boardroom
- Conference room
- Commercial meeting space
- Auditorium
- Broadcast studio
Technical Specifications
| Function | Dante digital audio networking card for Tesira SERVER / SERVER-IO |
| Channels | Up to 64 x 64 Dante |
| Simultaneous Flows | Up to 32 x 32 |
| Standards | Dante, AES67 |
| Module | Brooklyn II |
| Connections | Dual RJ-45 (primary and secondary) |
| Installation | Factory or field installed |
| Compatibility | Coexists with AVB-1 and SCM-1 cards |
| Compliance | RoHS compliant, AES grounded |
| Warranty | Biamp Systems 5-year warranty |
Frequently Asked Questions
Which Tesira devices accept the DAN-1 CK?
It installs in Tesira SERVER and SERVER-IO devices, either factory or field installed.
How many Dante channels does it support?
Up to 64 by 64 channels, with up to 32 by 32 simultaneous flows.
Is it AES67 compatible?
Yes. The DAN-1 is an AES67-enabled Dante endpoint.
