QSC Attero Tech C1 – Axon Single-Gang Networked Audio Zone Controller

Product Overview

The Attero Tech Axon C1 by QSC is a single-gang networked audio zone controller that gives commercial spaces a simple, wall-mounted way to control volume, mute, and presets without a full touch panel. As an Ethernet-based wall controller for the Q-SYS ecosystem, it pairs a high-contrast OLED display with a rotary encoder and an RGB LED bar for clear local control in conference rooms, hospitality AV, and retail environments. The C1 integrates into Q-SYS through a control plugin that requires no custom programming, and it can also control third-party AV equipment over UDP or TCP/IP.

Product Description

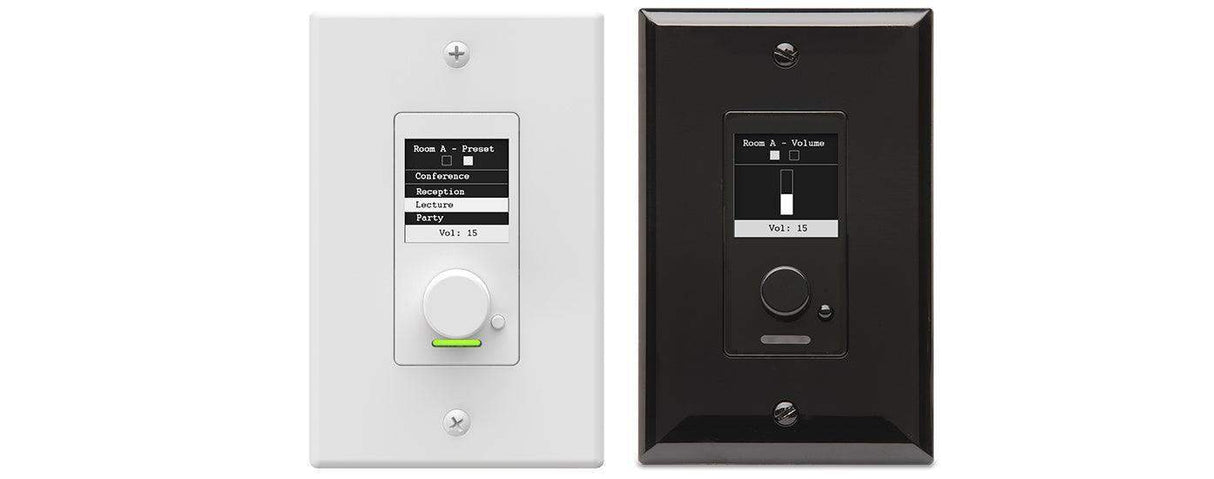

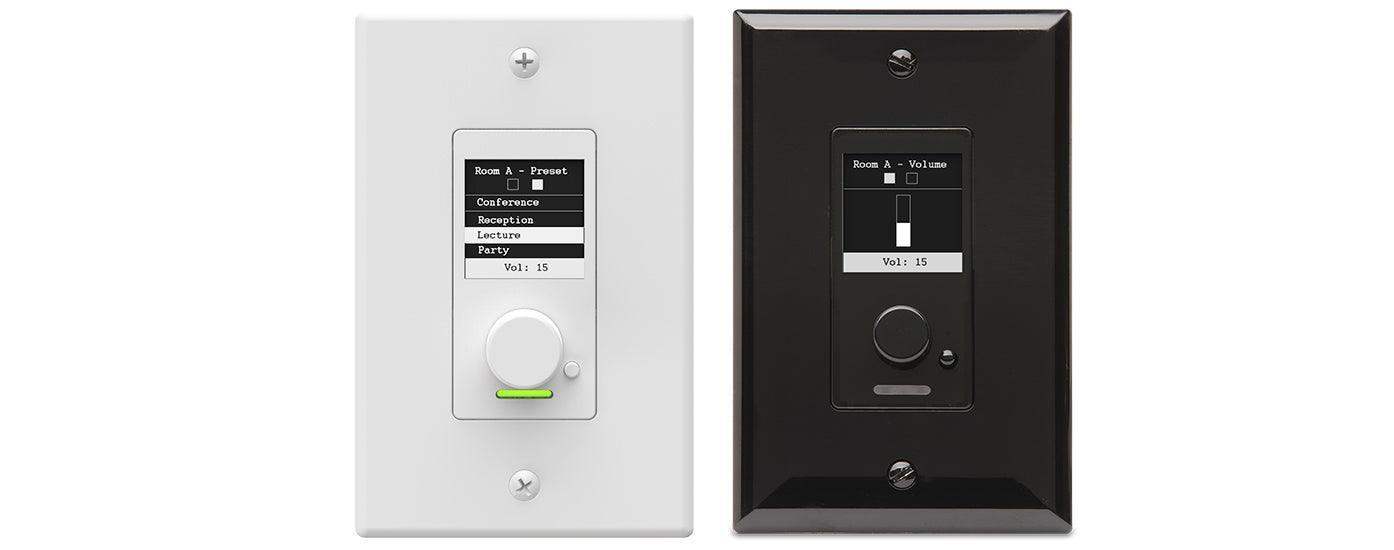

The Axon C1 is an assignable control solution for networked AV systems built around a small-format, single-gang Decora in-wall design. A 1.5-inch diagonal OLED display and a rotary/pushbutton encoder give end users straightforward control over assigned AV system functions, while a second pushbutton toggles menus and an adjustable-brightness RGB LED bar provides optional feedback for zone level and system state. The controller is PoE powered, so a single CAT-5e/CAT-6 cable handles both power and communication for a clean, unobtrusive installation. Menus are customized with the unIFY Control Panel and mapped through the Q-SYS Designer plugin, which removes the need for custom programming during AV system integration. Because the C1 is Ethernet-based, it can control virtually any third-party audio DSP or AV equipment supporting UDP or TCP/IP, making it well suited to commercial deployment across multiple venue types. Black and white Decora faceplates are included to match a range of interiors.

Key Features

• OLED Display and Rotary Encoder — A 1.5-inch high-contrast OLED display with a rotary/pushbutton encoder gives users clear, simple control of volume, mute, and preset recall.
• No-Programming Q-SYS Integration — A Q-SYS control plugin maps functions without custom code, speeding AV system integration.
• Third-Party Control — Ethernet-based control supports virtually any UDP or TCP/IP audio DSP or AV device, not just Q-SYS.
• PoE Powered — 802.3af Class 0 PoE delivers power and control over one CAT-5e/CAT-6 cable, drawing under 2 W.
• Assignable RGB LED Bar — An adjustable-brightness LED bar provides optional visual feedback for zone level and system state.
• Single-Gang Decora Design — The in-wall, single-gang form factor with included black and white faceplates installs unobtrusively in standard electrical boxes.
• Customizable Menus — Menu content is tailored per venue with the unIFY Control Panel for a focused end-user experience.

Typical Applications

• Conference room and commercial meeting space zone control
• Hospitality AV in hotel meeting and event centers
• Retail and multi-purpose room volume and source control
• Education and corporate AV spaces

Technical Specifications

Frequently Asked Questions

Does the Axon C1 require programming to work with Q-SYS? No. It integrates into Q-SYS through a control plugin and is mapped with the Q-SYS Designer plugin, removing the need for custom programming.

Can it control non-Q-SYS equipment? Yes. The C1 is an Ethernet-based controller that can operate virtually any third-party audio DSP or AV device supporting UDP or TCP/IP control.

How is it powered? The controller is 802.3af Class 0 PoE powered, drawing under 2 W, so a single CAT-5e/CAT-6 cable supplies both power and communication.

What does it install into? The C1 uses a single-gang Decora in-wall design and fits standard US single-gang electrical boxes, with black and white faceplates included.

What about warranty and support? The Axon C1 is covered under QSC warranty terms; contact Creation Networks support for help with control system design and AV integration.
