Cisco Room Bar, First Light with Table Stand Navigator
Product Overview

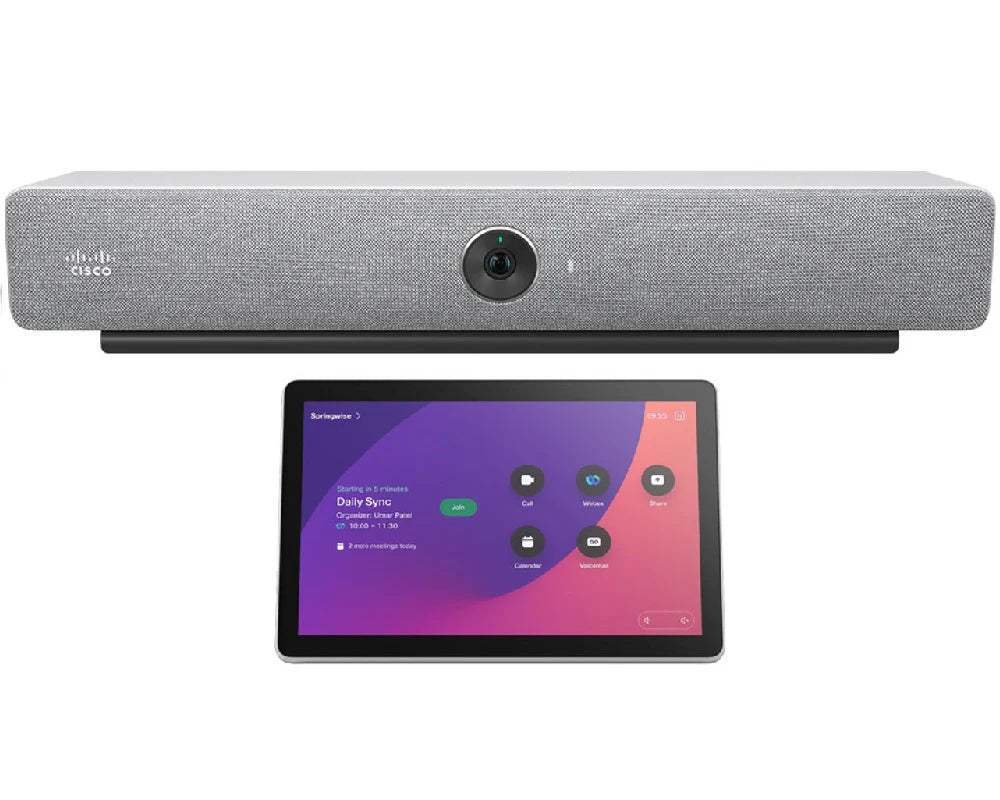

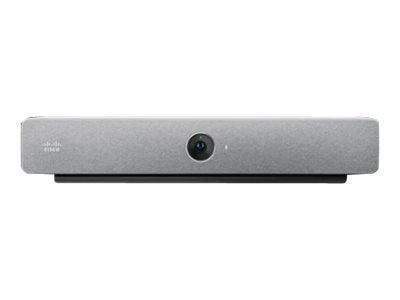

The Cisco Room Bar (CS-BAR-T-K9) in First Light is a compact, all-in-one video collaboration bar designed for small to medium conference rooms and huddle spaces. Bundled with a table-stand Room Navigator, it delivers 4K AI-framed video, a 7-element beamforming microphone array, and native support for Webex, Microsoft Teams Rooms, and Zoom Rooms in a single bar form factor requiring no separate compute device. The Room Bar supports PoE+ or AC power, mounts below or above any commercial display, and connects to a laptop via single-cable USB-C BYOD passthrough, making it an efficient standardized video conferencing room solution for corporate AV deployments.
Key Features
- AI Best Overview Camera: Automatically frames all participants using intelligent tracking with no manual PTZ adjustment required.
- 7-Element Beamforming Microphone Array: Full-room voice pickup with noise suppression, eliminating supplemental table microphones in most small conference rooms.
- 4K Content Sharing: Outputs 4K UHD content to commercial displays for sharp presentation delivery.
- Bundled CS-T10 Table-Stand Navigator: One-touch meeting join, room scheduling display, and local device control included.
- Native Multi-Platform Support: Runs Webex, Microsoft Teams Rooms, and Zoom Rooms natively, switchable via Control Hub.
- PoE+ or AC Power: Simplifies installation in rooms with existing PoE+ switch infrastructure.
- Single-Cable USB-C BYOD: Laptop content sharing plus audio/video passthrough over one USB-C connection, no app required.
- Cisco Control Hub Management: Centralized remote management, diagnostics, and firmware updates across all deployed units.
Typical Applications
- Small to medium conference rooms (6-10 person capacity)
- Huddle rooms requiring standardized video conferencing
- Corporate campuses standardizing on Webex or multi-platform video
- Commercial meeting spaces in multi-tenant office environments
- Training rooms with fixed display installations
- Government and federal facilities (see TAA variant CS-BAR-K9++)
Technical Specifications
| Specification | Detail |
|---|---|
| Model / SKU | CS-BAR-T-K9 |
| Color | First Light |
| Camera Resolution | 4K UHD (3840 x 2160) |
| Camera FOV | 120 degrees horizontal |
| Microphones | 7-element integrated beamforming array |
| Speakers | Integrated 3-channel |
| Supported Platforms | Webex, Microsoft Teams Rooms, Zoom Rooms |
| Connectivity | HDMI out, USB-C, USB-A, Ethernet |
| Power | PoE+ (IEEE 802.3at) or AC adapter |
| Display Output | 1x HDMI (4K) |
| Management | Cisco Control Hub, xAPI |
| Dimensions | 700 x 89 x 87 mm |
| Included | Room Bar unit, CS-T10 table-stand Navigator, cables |
Frequently Asked Questions
- Can the Room Bar run Microsoft Teams Rooms natively without a separate Windows device?
- Yes. The Room Bar runs MTR natively on-device and switches between Webex and Teams Rooms mode via Cisco Control Hub.
- Is the Room Navigator required for operation?
- No. The Room Bar operates without it, but the Navigator is recommended for commercial installations providing room scheduling and a professional front-of-room experience.
- Does the Room Bar support BYOD content sharing without an installed app?
- Yes. The USB-C BYOD input allows a laptop to share content and use the Room Bar camera and microphones without any installed software.
- What PoE+ switch infrastructure is required?
- IEEE 802.3at (30W) PoE+. Standard 802.3af (15.4W) PoE is insufficient. Cisco Meraki MS and Catalyst PoE+ switches are fully compatible.
- What warranty and SmartNet options are available?
- Standard 1-year limited hardware warranty included. Cisco SMARTnet CON-SNT-CSTBARGT for next-business-day replacement is available separately through Creation Networks.
- Is the First Light version functionally identical to the Carbon Black version?
- Yes. Both variants are identical in hardware and software. The difference is cosmetic only.
