Christie 172-127101-01 PK3 - Pandoras Box PK3 Server R5
Product Overview

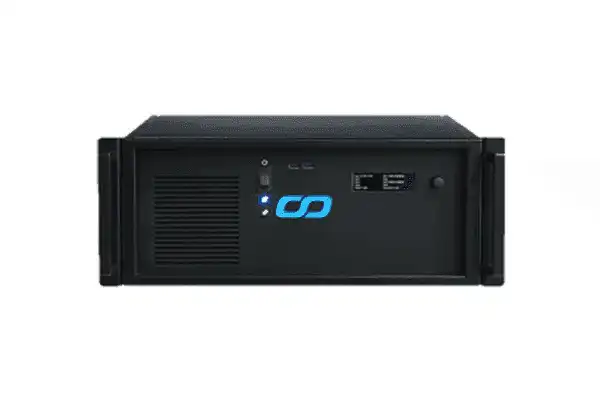

The Christie Pandoras Box PK3 Server R5 (172-127101-01) is the flagship hardware platform of the Pandoras Box suite, combining the full Pandoras Box software feature set with a turnkey server engineered for maximum stability under show conditions. Performance Kit 3 pairs Xeon processing with 48 GB RAM, 30.7 TB of RAID-0 SSD media storage, a separate OS disk, an Nvidia Quadro GPU, and 10GbE networking. Its real-time 3D compositing render engine projects onto any shape and any surface. Creation Networks supplies Pandoras Box servers and licenses across the Christie Digital range.
Product Description
Pandoras Box Server unites rendering technology with intuitive media and show control in a single turnkey appliance. The render engine performs real-time compositing in 3D, enabling projection mapping onto irregular geometry without pre-rendering content for each surface. Uncompressed video playback is supported at up to 4K and 60 fps, preserving content integrity from grading suite to screen. The PK3 configuration is the highest-capacity Performance Kit in the R5 line, with 30.7 TB of RAID-0 disk space for long-form uncompressed media and a separate OS disk to keep playback storage isolated. Up to 8 DisplayPort outputs feed projectors and LED processors directly, an optional sync board genlocks multi-server systems, and optional video input and audio output boards extend live capture and audio routing. All R5 servers feature SSD storage and dual Intel Xeon processors for sustained, predictable performance during live operation.
Key Features
- Turnkey Media Server Platform — full Pandoras Box software feature set on certified, show-ready hardware.
- Uncompressed 4K60 Playback — maintains content quality with uncompressed video at up to 4K, 60 fps.
- Real-Time 3D Compositing — render engine maps content onto any shape and any surface live.
- 30.7 TB RAID-0 SSD Storage — Performance Kit 3 capacity for long-form uncompressed media, with separate OS disk.
- Dual Intel Xeon + Nvidia Quadro — workstation-class processing and GPU rendering for demanding timelines.
- Up to 8 DisplayPort Outputs — drive projector arrays and LED walls directly from one chassis.
- 10GbE Networking — high-bandwidth content transfer and multi-server collaboration.
- Expandable I/O — optional sync board, video input boards, and audio output boards.
Typical Applications
The PK3 Server R5 is built for live events and touring productions, broadcast and corporate staging, projection mapping on architecture and scenic elements, theme park and museum installations, and fixed-install show control where uncompressed playback and multi-output rendering are required.
Technical Specifications
| Specification | Detail |
|---|---|
| Model / SKU | Pandoras Box Server R5 — Performance Kit 3 (PK3), 172-127101-01 |
| CPU | Intel Xeon (dual Xeon across R5 server line) |
| RAM | 48 GB |
| Media storage | 30.7 TB SSD RAID-0, separate OS disk |
| GPU | Nvidia Quadro |
| Outputs | Up to 8 DisplayPort |
| Playback | Uncompressed video up to 4K at 60 fps |
| Networking | 10GbE |
| Options | Sync board, video input boards, audio output boards |
Specifications sourced from Christie vendor data. Unlisted values are omitted rather than estimated.
Frequently Asked Questions
How does PK3 differ from the PK2 Server R5?
The primary difference is media storage: PK3 carries 30.7 TB of RAID-0 disk space versus 7.5 TB on PK2, supporting much longer uncompressed timelines. Both share the Xeon/48 GB/Quadro/10GbE platform.
Can multiple servers be synchronized for large shows?
Yes. An optional sync board genlocks multi-server systems, and 10GbE networking supports master/client workflows across the Pandoras Box ecosystem.
Does it support live video inputs?
Optional video input boards add live capture, and optional audio output boards extend audio routing for show playback.
What support does Creation Networks provide?
We assist with system design, output planning, license configuration, and commissioning for Pandoras Box deployments — request a quote to discuss your production.
