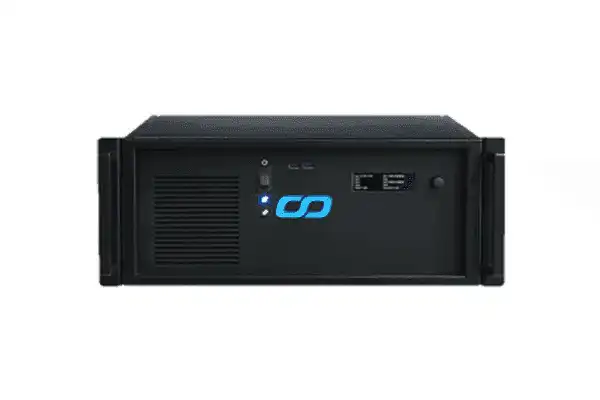

Christie 172-126100-01 PK2 - Pandoras Box PK2 Server R5
Product Overview
The Christie Pandoras Box PK2 Server R5 (172-126100-01) is a turnkey media server from the flagship Pandoras Box hardware line, combining the full software feature set with show-grade hardware. Performance Kit 2 pairs Xeon processing with 48 GB RAM, 7.5 TB of RAID-0 SSD media storage, a separate OS disk, an Nvidia Quadro GPU, and 10GbE networking. Its real-time 3D compositing render engine projects onto any shape and any surface. Creation Networks supplies Pandoras Box servers and licenses across the Christie Digital range.
Product Description
Pandoras Box Server unites rendering technology with intuitive media and show control in a single certified appliance, removing the risk of self-built playback PCs in live environments. The render engine performs real-time compositing in 3D, enabling projection mapping onto irregular geometry without pre-rendering content per surface. Uncompressed video playback is supported at up to 4K and 60 fps, preserving content integrity from grading suite to screen. The PK2 configuration provides 7.5 TB of RAID-0 SSD storage with a separate OS disk — sized for typical show timelines — and shares the dual Intel Xeon, Quadro GPU, and 10GbE platform of the R5 line. Up to 8 DisplayPort outputs feed projectors and LED processors directly, an optional sync board genlocks multi-server systems, and optional video input and audio output boards extend live capture and audio routing.
Key Features
- Turnkey Media Server Platform — full Pandoras Box software feature set on certified, show-ready hardware.
- Uncompressed 4K60 Playback — maintains content quality with uncompressed video at up to 4K, 60 fps.
- Real-Time 3D Compositing — render engine maps content onto any shape and any surface live.
- 7.5 TB RAID-0 SSD Storage — Performance Kit 2 capacity with separate OS disk for isolated playback storage.
- Dual Intel Xeon + Nvidia Quadro — workstation-class processing and GPU rendering for demanding timelines.
- Up to 8 DisplayPort Outputs — drive projector arrays and LED walls directly from one chassis.
- 10GbE Networking — high-bandwidth content transfer and multi-server collaboration.
- Expandable I/O — optional sync board, video input boards, and audio output boards.
Typical Applications
The PK2 Server R5 serves live events and corporate staging, broadcast production, projection mapping on architecture and scenery, theme park and museum installations, and fixed-install show control where certified uncompressed playback is required at a mid-tier storage capacity.
Technical Specifications
| Specification | Detail |
|---|---|
| Model / SKU | Pandoras Box Server R5 — Performance Kit 2 (PK2), 172-126100-01 |
| CPU | Intel Xeon (dual Xeon across R5 server line) |
| RAM | 48 GB |
| Media storage | 7.5 TB SSD RAID-0, separate OS disk |
| GPU | Nvidia Quadro |
| Outputs | Up to 8 DisplayPort |
| Playback | Uncompressed video up to 4K at 60 fps |
| Networking | 10GbE |
| Options | Sync board, video input boards, audio output boards |
Specifications sourced from Christie vendor data. Unlisted values are omitted rather than estimated.
Frequently Asked Questions
Should I choose PK2 or PK3?
The difference is media storage: PK2 provides 7.5 TB RAID-0 versus 30.7 TB on PK3. If your show content is standard-length or compressed-codec heavy, PK2 is typically sufficient; long-form uncompressed timelines call for PK3. Creation Networks can size storage from your content plan.
Can multiple servers run synchronized?
Yes. An optional sync board genlocks multi-server systems, and 10GbE networking supports master/client workflows across the Pandoras Box ecosystem.
Does it accept live video inputs?
Optional video input boards add live capture, and optional audio output boards extend audio routing.
What deployment support is available?
Creation Networks provides system design, output planning, license configuration, and commissioning — request a quote to discuss your production.
