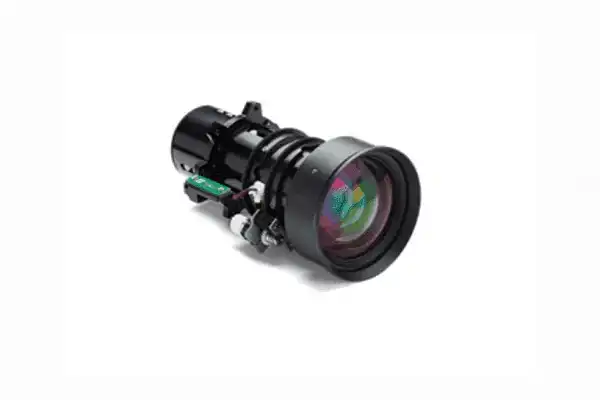

Christie 140-132107-02 1DLP; GS Series; Lens 1.22-1.53 Zoom G; Lens Zm Std GS 1.22-1.53 (Up to 7000 lumens)

Product Overview

The Christie 140-132107-02 is a standard zoom lens with a 1.22-1.53:1 throw ratio for Christie GS Series 1DLP projectors. Introduced as a low-cost standard lens for the 599-GS family, it also fits 555-GS, 630-GS, and 635-GS Series models. Christie recommends it for projectors up to roughly 6,500-7,000 lumens, making it a cost-effective optic for mainstream installation work.

Product Description

This lens was developed to give the 599-GS projector family a competitive complete-system price without compromising image quality at typical installation throw distances. The 1.22-1.53:1 throw ratio covers common meeting room, classroom, and venue geometries where the projector sits at a moderate distance from the screen. Focal length runs 18.07-22.59 mm with a 1.25x zoom range, and the f/2.00-2.32 aperture keeps light throughput high across the zoom. At just 0.39 kg, it adds minimal weight to the projector and is easy to handle during lens swaps. Christie advises against using it on brighter models above 6,500 ISO lumens, such as the 700-GS and 850-GS Series, so match it to the lower-brightness GS chassis it was designed for. As a genuine Christie optic, it locks into the GS lens mount and works with the projector's lens control system.

Key Features

• 1.22-1.53:1 Throw Ratio — covers standard installation distances in meeting rooms, classrooms, and venues.
• 1.25x Zoom Range — flexibility to fine-tune image size without moving the projector.
• Fast f/2.00-2.32 Aperture — maintains brightness across the zoom range.
• Lightweight 0.39 kg Build — easy handling and minimal load on the lens mount.
• Multi-Series Compatibility — fits 599-GS, 555-GS, 630-GS, and 635-GS projectors.
• Genuine Christie Optic — designed for the GS lens mount and motorized lens control.

Typical Applications

This lens fits corporate meeting rooms and boardrooms, higher-education classrooms and lecture halls, houses of worship, and small-venue installs running GS Series projectors up to about 7,000 lumens. Find compatible projectors in our Christie Digital collection.

Technical Specifications

Specifications sourced from Christie vendor data. Unlisted values are omitted rather than estimated.

Frequently Asked Questions

Which projectors accept this lens?
The Christie 599-GS, 555-GS, 630-GS, and 635-GS Series projectors.

Can I use it on a 700-GS or 850-GS projector?
Christie does not recommend this lens for models above 6,500 ISO lumens, which includes the 700/850-GS Series.

What throw distances does it cover?
With a 1.22-1.53:1 throw ratio, the projector sits at roughly 1.22 to 1.53 times the image width from the screen.

Is the zoom motorized through the projector?
It is a genuine Christie GS Series lens designed to work with the projector's lens control system.
