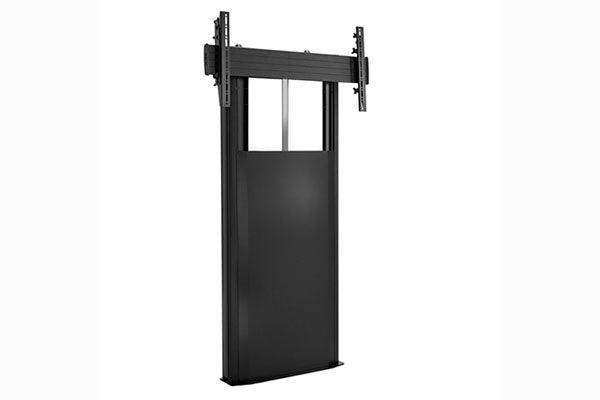

Chief X-Large Fusion Manual Ht Adj Floor Blk - XFA1UB

Product Overview

The Chief XFA1UB is an extra-large Fusion manual height-adjustable floor support for large flat panel displays, finished in black. It is built for installations where the wall structure cannot carry display weight, transferring the load to the floor with a clean, professional column. A single user can raise or lower the screen between 48 and 65 inches using a 1/2" hex bit on a power drill, without removing the display. Its rounded edges and concealed cable management suit corporate, classroom, and digital signage environments.

Product Description

The XFA1UB floor support solution is especially helpful for applications where the wall cannot bear the weight of a large display, providing a freestanding column that mounts the screen at an ergonomic, adjustable height. A turn knob lets a single user adjust screen height anywhere between 48 and 65 inches (122 to 165 cm) using a 1/2" hex drill bit, so repositioning for different presenters or rooms does not require dismounting the display. Flexible cable covers run down either side of the column for lay-in access to external AV equipment, and a magnetic, removable front cover allows clean cable routing to components stored inside the column. Included cable-wrap hardware manages cabling both inside and outside the support. The mount ships pre-assembled to shorten installation time and is configured for landscape orientation; portrait is supported only when the screen is at least 34 inches tall with a mounting pattern of 400 x 400 mm or smaller. For wall-mounted height-adjustable alternatives and other Fusion display supports, see the Chief collection.

Key Features

• Floor-supported load path — Carries large display weight through the floor for installations where the wall structure cannot.
• Single-user height adjustment — A turn knob and 1/2" hex drill bit let one person set screen height between 48 and 65 inches (122–165 cm).
• No display removal required — Height changes are made without dismounting the screen.
• Concealed cable management — Flexible side cable covers and a magnetic front cover route cabling to AV components stored in the column.
• Professional aesthetic — Rounded edges and sleek lines suit corporate, education, and digital signage spaces.
• Ships pre-assembled — Reduces on-site labor and speeds deployment.
• Landscape orientation — Portrait supported only for screens at least 34" tall with a 400 x 400 mm or smaller pattern.

Typical Applications

• Corporate conference room and boardroom displays where walls cannot bear weight
• Training room and classroom presentation screens
• Commercial meeting space and digital signage installations
• Multi-purpose room and all-hands room display supports

Technical Specifications

Frequently Asked Questions

How is screen height adjusted?
A single user turns a knob using a 1/2" hex drill bit to set the display anywhere between 48 and 65 inches. The screen does not need to be removed to change height.

When should I choose a floor support over a wall mount?
The XFA1UB is ideal where the wall structure cannot carry the weight of a large display, transferring the load to the floor instead.

Can it be used in portrait orientation?
It is configured for landscape. Portrait is supported only when the screen is at least 34 inches tall and has a mounting pattern of 400 x 400 mm or smaller.

How does it handle cabling and AV integration?
Flexible cable covers run down both sides of the column, a magnetic removable front cover allows clean routing to components stored inside the column, and cable-wrap hardware is included for internal and external management.

Does it require assembly?
No. The XFA1UB ships pre-assembled to reduce installation time on site.

What warranty applies?
This product is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for current warranty terms and coverage details.
