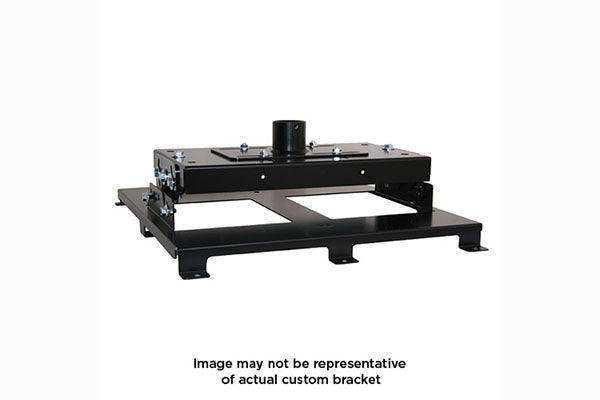

Chief VCM016E INCL CUSTOM HB016E BLK - VCM016E

Product Overview

The Chief VCM016E is a heavy-duty universal projector mount engineered for permanent ceiling installation of large LCD and CRT projectors in commercial AV environments. It ships with a custom HB016E projector interface bracket for a secure, model-matched fit. Independent roll, pitch, and yaw adjustment allows precise image registration in conference rooms, auditoriums, and training rooms. The black finish keeps the mount visually discreet in finished ceilings.

Product Description

The Chief VCM016E heavy projector mount provides the rigid, commercial-grade support required for larger and heavier projection systems. The included custom HB016E interface bracket pairs the mount to a specific projector chassis, distributing weight evenly for a stable, long-term installation. Integrators can choose the mounting method that fits the room: flush to the ceiling, suspended on 0.5" threaded rods, or dropped from a 1.5" NPT extension column for higher ceilings. Independent roll, pitch, and yaw adjustments make it straightforward to square the projected image to the screen during alignment. A quick connect/disconnect feature on most supported projectors simplifies routine lamp and filter access without removing the entire mount. Cable management routes through the top of the mount, so power and signal cabling stay concealed without additional accessories. For a flush ceiling installation, pair the VCM016E with the LPK1 accessory. This projector mount is well suited to integrators standardizing on Chief hardware across conference rooms and larger presentation spaces. Compare it with related models in the full Chief collection at Creation Networks.

Key Features

• Heavy projector support — Provides the strong, commercial-grade support needed for mounting heavy LCD and CRT projectors.
• Independent roll, pitch and yaw — Separate adjustments allow quick and precise projector registration to the screen.
• Multiple installation options — Flush mount to the ceiling, suspend on 0.5" threaded rods, or use a 1.5" NPT extension column.
• Quick lamp and filter access — Quick connect/disconnect provides convenient lamp and filter access on most projectors.
• Integrated cable management — Cabling routes through the top of the mount without additional accessories for a clean look.
• Custom HB016E interface — Includes a custom HB016E hinge bracket for a secure, model-specific projector fit.
• Flush-mount ready — Pair with the LPK1 accessory to flush mount the VCM to the ceiling.

Typical Applications

• Conference room projector installations
• Auditorium and lecture-hall projection
• Training room and multi-purpose room AV systems
• House of worship presentation spaces
• Commercial meeting space projection

Technical Specifications

Frequently Asked Questions

Q: What projectors does the VCM016E support?
It is built for heavy LCD and CRT projectors and ships with a custom HB016E interface bracket matched to a specific projector model.

Q: How is the mount installed?
It can be flush mounted to the ceiling, suspended on 0.5" threaded rods, or dropped from a 1.5" NPT extension column to suit the ceiling height.

Q: Can I flush mount it directly to the ceiling?
Yes. Pair the VCM016E with the LPK1 accessory to flush mount the unit.

Q: How do I access the projector lamp and filter after installation?
Most supported projectors use a quick connect/disconnect feature for convenient lamp and filter service without removing the mount.

Q: How are cables managed?
Power and signal cabling route through the top of the mount without additional accessories.

Q: Is the VCM016E covered by a warranty?
Yes. It is covered under the Legrand AV / Chief manufacturer warranty; contact Creation Networks for current warranty terms and support.
