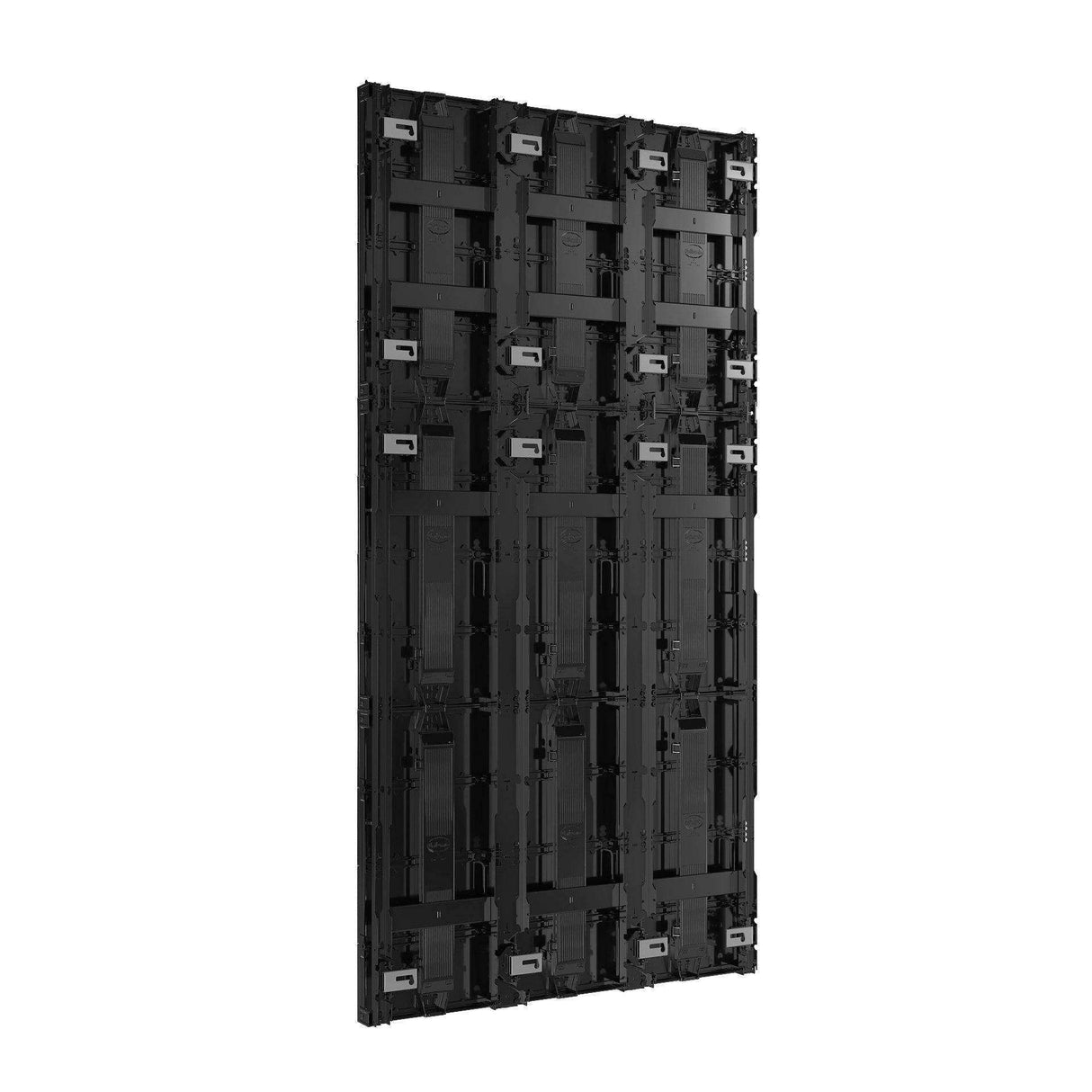

Chief Tiled Samsung Ier Mount 3 High Left - TILD1X3IER-L

Product Overview

The Chief TILD1X3IER-L is the left-column structural component of a modular wall system built for Samsung IER Series direct view LED displays in a three-high configuration. It provides precise X, Y, and Z-axis adjustment so integrators can build a flat, seam-aligned dvLED video wall. Designed as an off-the-shelf, stockable solution, it ships without custom lead times or project registration. Combine it with the matching middle and right components to scale virtually any video wall layout.

Product Description

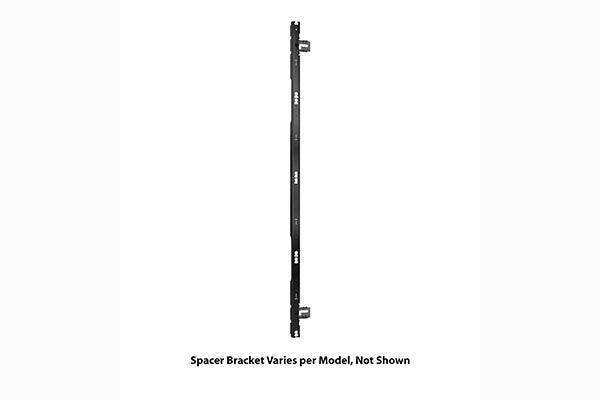

This left-side component anchors the left edge of a three-display-tall Samsung IER LED array. The modular system lets you mix and match left, middle, and right components to build a wide range of video wall configurations for a broadcast studio, conference room, or large commercial space. Independent X-axis lateral, Y-axis vertical, and Z-axis plumb adjustments enable accurate cabinet-to-cabinet alignment and compensate for imperfect wall surfaces. Offset mounting slots speed installation and protect the LED cabinet edges from friction damage during service. The assembly supports a display depth range of 5.37" to 6.12" (136–156 mm) for a low-profile finish. Wall mounting structure, vertical connectors, and side covers are ordered separately so you can specify exactly what each wall needs. Because it is a standard, in-stock direct view LED mounting solution, you avoid the long lead times associated with custom hardware. Pair it with the companion TILD1X3IER-M middle component and TILD1X3IER-R right component, or browse the full Chief collection.

Key Features

• X-Axis Lateral Adjustment — Lateral shift adjustments let you position each LED cabinet precisely for tight, uniform seams.
• Y-Axis Vertical Adjustment — Vertical shift adjustments deliver accurate cabinet-to-cabinet alignment across the array.
• Z-Axis Plumb Adjustment — Plumb adjustments compensate for wall imperfections to create a flat mounting surface.
• Modular Component Design — Left, middle, and right components combine to support flexible video wall configurations.
• Offset Mounting Slots — Offset slots ease installation while protecting LED cabinet sides from damaging friction.
• Defined Mounting Depth — A display depth range of 5.37"–6.12" (136–156 mm) keeps the wall close to the surface.
• Stockable Solution — A standard, off-the-shelf design ships quickly with no custom lead times.
• Scalable System — Vertical connectors and side covers (sold separately) extend the system to larger walls.

Typical Applications

• Broadcast studio
• Conference room
• Commercial meeting space
• Government space
• Auditorium

Technical Specifications

Frequently Asked Questions

Which displays does the TILD1X3IER-L support?
It is engineered for Samsung IER, IE-F, and IF Series direct view LED cabinets, including the IER015R through IF040R-EF models listed in the specifications.

Is this a complete video wall mount on its own?
No. It is the left-column component of a three-high system; the wall mounting structure, vertical connectors, and side covers are sold separately, and you add middle and right components to complete the array.

How does it align cabinets for a flat wall?
Independent X-axis lateral, Y-axis vertical, and Z-axis plumb adjustments let installers fine-tune each cabinet for tight seams and a flat surface, even on imperfect walls.

How does it integrate into a larger installation?
The modular left, middle, and right components combine to support flexible configurations, and offset mounting slots simplify cabinet placement and servicing.

What is the warranty?
This product is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for current warranty terms and support.

Is it in stock?
Yes. It is a standard, off-the-shelf solution that ships without custom lead times or project registration.
