Chief Tiled Samsung Ier-F Wall Mount 3 High - TILD1X3IERF
Product Overview

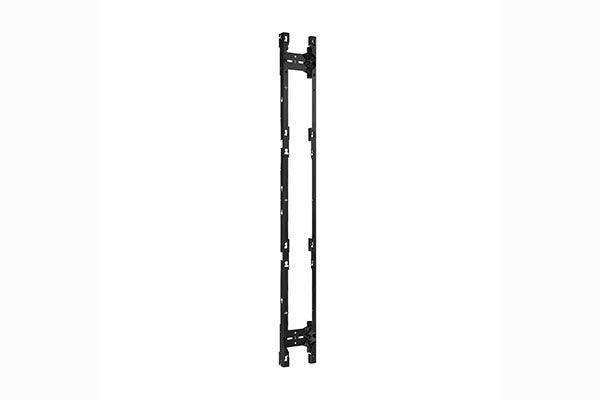

The Chief TILD1X3IERF is a TiLED dvLED video wall mount built for the Samsung IER-F Series, configured three displays high. Its modular system uses left, middle, and right structural components that can be ordered in 2-high and 3-high lengths, letting integrators mix and match parts to create endless video wall configurations. As a standard, off-the-shelf solution, it ships with no custom lead times or project registration.
Product Description
The TILD1X3IERF modular mounting system contains left, middle, and right structural components that support the Samsung IER-F Series in 2-high and 3-high lengths. The IER-F Series displays are a quarter of the size of the original displays, providing more flexibility in video wall design. Integrators can mix and match a variety of components to create endless configurations, and essential X-axis, Y-axis, and Z-axis adjustments allow perfect positioning and alignment for a flawless video wall. Offset mounting slots ease installation and protect the LED display sides from damaging friction. The depth range with display is between 5.37 and 6.12 inches (136-156 mm). The wall mounting structure, vertical connectors, and side covers are sold separately so the system can be tailored precisely to the installation. The TILD1X3IERF is compatible with Samsung models including IER015R, IER020R, IER025R, IER040R, IE015R-F, IE020R-F, IE025R-F, IE040R-F, IF015R, IF025R, IF015R-F, IF025R-F, IF015R-E, IF020R-E, IF025R-E, IF040R-E, IF015R-EF, IF020R-EF, IF025R-EF, and IF040R-EF. As a standard, stockable solution, it is ready to ship with no custom lead times, helping deliver dvLED projects on schedule.
Key Features
- Samsung IER-F specific — Designed for the Samsung IER-F Series in a 3-high configuration.
- Modular components — Left, middle, and right structural parts available in 2-high and 3-high lengths.
- X-axis adjustment — Lateral shift enables precise LED positioning.
- Y-axis adjustment — Vertical shift provides cabinet-to-cabinet alignment.
- Z-axis plumb adjustment — Compensates for wall imperfections for a flat mounting surface.
- Offset mounting slots — Ease installation and protect LED sides from friction damage.
- Defined depth — 5.37 to 6.12 inches (136-156 mm) with display.
- Off-the-shelf availability — Stockable and ready to ship with no custom lead times.
Typical Applications
- dvLED video walls in broadcast studio environments
- Boardroom and conference room video walls
- Commercial meeting space and lobby digital signage
- Auditorium and government space displays
Technical Specifications
| Mount Type | TiLED dvLED video wall mount |
| Compatible Displays | Samsung IER-F Series |
| Configuration | 1 wide x 3 high (2-high and 3-high lengths available) |
| Adjustments | X-axis, Y-axis, Z-axis (plumb) |
| Depth with Display | 5.37" - 6.12" (136 - 156 mm) |
| Sold Separately | Wall mounting structure, vertical connectors, side covers |
| Availability | Off-the-shelf, no custom lead time |
| SKU | TILD1X3IERF |
Frequently Asked Questions
Q: Which displays is the TILD1X3IERF compatible with?
It is designed for the Samsung IER-F Series, including models such as IER015R, IE015R-F, and IF025R-EF, in a 3-high configuration.
Q: Can I build different video wall sizes?
Yes. The modular left, middle, and right components come in 2-high and 3-high lengths and can be mixed and matched for endless configurations.
Q: Are all parts included?
No. The wall mounting structure, vertical connectors, and side covers are sold separately so the system can be tailored to your installation.
Q: How precise is the alignment?
Essential X-axis, Y-axis, and Z-axis adjustments allow precise positioning and alignment for a flawless wall.
Q: Is there a custom lead time?
No. This is a standard, off-the-shelf solution, stockable and ready to ship.
Q: What warranty applies?
This product is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for current warranty terms and support.
