Chief Led Samsung Ifj-Iw 2 High - TIL1X2IFJ

Product Overview

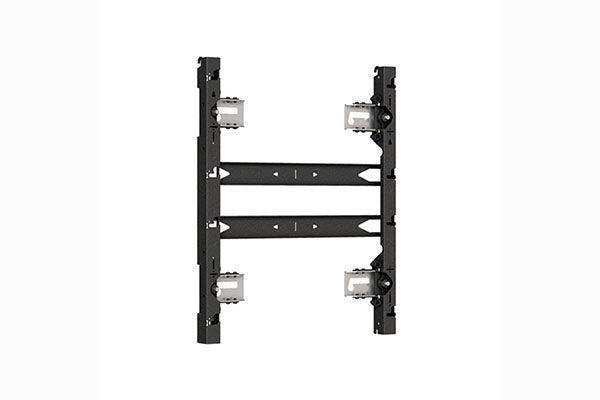

The Chief TIL1X2IFJ is a TiLED dvLED video wall mounting system designed to mount two vertically stacked LED displays from the Samsung IFJ Series. It gives integrators a standard, off-the-shelf solution for building a 1x2 direct view LED video wall in digital signage and commercial AV environments. Variable X, Y, and Z-axis adjustments allow precise cabinet-to-cabinet alignment for a flat, seamless image. The system is ideal for lobbies, conference rooms, and other spaces deploying Samsung IF012J LED displays.

Product Description

The Chief TIL1X2IFJ TiLED LED video wall mount is purpose-built for the Samsung IFJ Series, supporting two displays stacked vertically into one continuous video wall. Chief's modular design attaches to the top, bottom, and sides of other TiLED mounts, so the same hardware scales to support a wide range of video wall configurations. The mount is compatible with the Samsung IF012J and IF012J-E dvLED displays. Offset mounting slots protect the LED display edges from damaging friction during installation, an important detail when handling fragile direct view LED cabinets. Once displays are in place, X-axis lateral shift adjustments enable perfect LED positioning, Y-axis vertical shift adjustments provide accurate cabinet-to-cabinet alignment, and Z-axis plumb adjustments compensate for wall imperfections to achieve a perfectly flat mounting surface. The depth range with the display installed is between 3.85" and 4.60" (98 – 117 mm) for a low-profile result. As a standard, stockable solution set, the TIL1X2IFJ ships without the custom lead times or project registration required by many video wall mounts.

Key Features

• Samsung IFJ Series fit — Mounts two vertically stacked LED displays and is compatible with the IF012J and IF012J-E.
• X-axis lateral shift — Lateral adjustments enable perfect LED cabinet positioning across the wall.
• Y-axis vertical shift — Vertical adjustments provide accurate cabinet-to-cabinet alignment.
• Z-axis plumb adjustment — Compensates for wall imperfections to achieve a perfectly flat mounting surface.
• Modular design — Attaches to the top, bottom, and sides of other TiLED mounts to support creative video wall configurations.
• Display protection — Offset mounting slots ease installation and protect LED sides from damaging friction.
• Low-profile depth — Depth with display installed is 3.85" – 4.60" (98 – 117 mm).
• Stock and ship — Standard off-the-shelf solution with no custom lead times or project registration required.

Typical Applications

• Digital signage video walls
• Conference room and boardroom dvLED displays
• Commercial meeting space lobbies
• Broadcast studio backdrops
• Government and corporate all-hands rooms

Technical Specifications

Frequently Asked Questions

Which displays is the TIL1X2IFJ compatible with?
It is designed for the Samsung IFJ Series and is compatible with the IF012J and IF012J-E dvLED displays in a 1x2 vertically stacked configuration.

How does it keep the video wall flat and aligned?
Variable X-axis lateral, Y-axis vertical, and Z-axis plumb adjustments allow precise cabinet-to-cabinet alignment and compensate for wall imperfections.

Does the mount protect the LED cabinets during installation?
Yes. Offset mounting slots ease installation and protect the LED display sides from damaging friction.

Can I build a larger video wall with this system?
Yes. The modular design attaches to the top, bottom, and sides of other TiLED mounts to scale into larger configurations.

Is there a lead time or project registration requirement?
No. It is a standard, stockable solution that ships without custom lead times or project registration.

Is the TIL1X2IFJ covered by a warranty?
Yes. It is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for current warranty terms and support.
