Chief Led Philips Bdl 5 High - TIL1X5PH
Product Overview

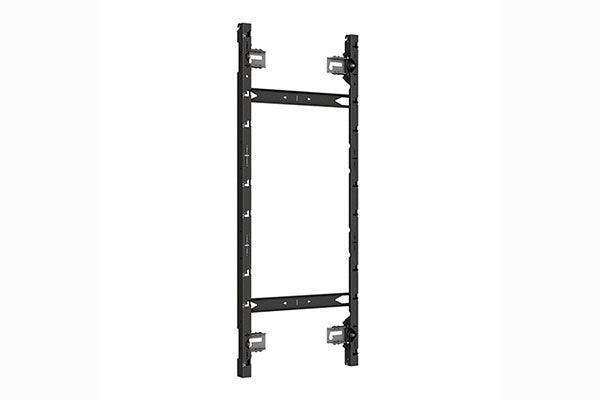

The Chief TIL1X5PH is a TiLED dvLED video wall mount designed for the Philips 27BDL 6000 and 9000 Series LED displays, stacking vertically to build a continuous video wall. Chief's modular design attaches to the top, bottom, and sides of other mounts to support endless configurations. As an off-the-shelf solution, it ships with no custom lead times or project registration, making it easy to specify, order, and install for dvLED video wall projects.
Product Description
The TIL1X5PH TiLED LED video wall mounting system mounts vertically stacked Philips 27BDL 6000 and 9000 Series LED displays into one continuous video wall. Simply stack the LED displays to create the wall, then use the modular mounts to attach to the top, bottom, and sides of adjacent units for nearly any layout. Offset mounting slots protect the LED displays from damaging friction during installation. Once displays are in place, variable X-axis, Y-axis, and Z-axis adjustments allow perfect positioning and alignment for a flawless video wall surface. The depth range with display is between 4.05 and 4.80 inches (103-122 mm) for a low-profile result. The TIL1X5PH is compatible with Philips models 27BDL9015L/00, 27BDL9112L/00, 27BDL9115L/00, 27BDL9119L/00, 27BDL6112L/00, 27BDL6115L/00, and 27BDL6119L/00. As a standard, stockable solution, it is ready to ship with no custom lead times, helping integrators deliver dvLED video walls on schedule for broadcast studio, boardroom, and commercial signage applications.
Key Features
- Display-specific design — Built for Philips 27BDL 6000 and 9000 Series, stacking LED displays vertically.
- X-axis adjustment — Lateral shift enables precise LED positioning.
- Y-axis adjustment — Vertical shift provides cabinet-to-cabinet alignment.
- Z-axis plumb adjustment — Compensates for wall imperfections for a flat mounting surface.
- Modular design — Connects to sides, top, and bottom of other mounts for endless configurations.
- Offset mounting slots — Ease installation and protect LED sides from friction damage.
- Low-profile depth — 4.05 to 4.80 inches (103-122 mm) with display.
- Off-the-shelf availability — Stockable and ready to ship with no custom lead times.
Typical Applications
- dvLED video walls in broadcast studio environments
- Boardroom and conference room video walls
- Commercial meeting space and lobby digital signage
- Auditorium and government space displays
Technical Specifications
| Mount Type | TiLED dvLED video wall mount |
| Compatible Displays | Philips 27BDL 6000 & 9000 Series |
| Compatible Models | 27BDL9015L/00, 9112L/00, 9115L/00, 9119L/00, 6112L/00, 6115L/00, 6119L/00 |
| Configuration | 1 wide x 5 high (vertical stack) |
| Adjustments | X-axis, Y-axis, Z-axis (plumb) |
| Depth with Display | 4.05" - 4.80" (103 - 122 mm) |
| Availability | Off-the-shelf, no custom lead time |
| SKU | TIL1X5PH |
Frequently Asked Questions
Q: Which displays is the TIL1X5PH compatible with?
It is designed for the Philips 27BDL 6000 and 9000 Series, including models such as 27BDL9015L/00 and 27BDL6112L/00, mounting five vertically.
Q: Can I expand the video wall?
Yes. The modular design connects to the sides, top, and bottom of other mounts for endless configurations.
Q: How are the displays aligned?
Variable X-axis, Y-axis, and Z-axis adjustments allow perfect positioning and alignment.
Q: Is there a custom lead time?
No. This is a standard, off-the-shelf solution, stockable and ready to ship.
Q: How are LED cabinets protected during installation?
Offset mounting slots protect the LED display sides from damaging friction.
Q: What warranty applies?
This product is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for current warranty terms and support.
