Chief Led Philips Bdl 4 High - TIL1X4PH
Product Overview

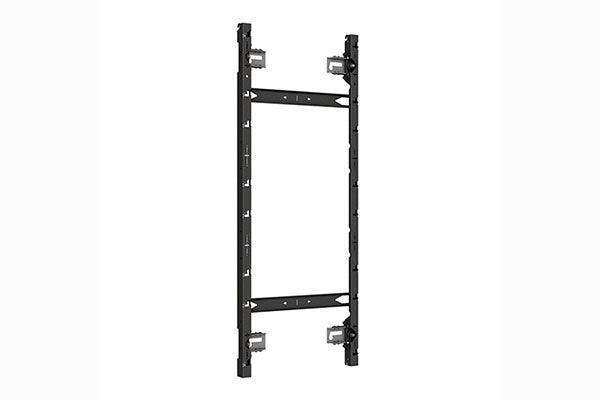

The Chief TIL1X4PH is a TiLED dvLED video wall mounting system designed for vertically stacked LED displays from the Philips 27BDL 6000 and 9000 Series. It is built for direct view LED video walls in commercial AV environments such as broadcast studios, auditoriums, and lobby signage. The modular design attaches to the top, bottom, and sides of other mounts to support a wide range of configurations. Variable X, Y, and Z-axis adjustments deliver precise positioning and alignment for a flat, seamless wall.
Product Description
The TiLED LED Video Wall Mounting System mounts vertically stacked LED displays from the Philips 27BDL 6000 and 9000 Series, so you stack displays to create one continuous video wall. Chief's modular design attaches to the top, bottom, and sides of other mounts to support a wide range of design configurations. X-axis lateral shift enables precise LED positioning, Y-axis vertical shift provides cabinet-to-cabinet alignment, and Z-axis plumb adjustments compensate for wall imperfections to achieve a flat mounting surface. Offset mounting slots ease installation and protect LED sides from damaging friction. The depth range with a display is between 4.05 and 4.80 inches (103 to 122 mm) for a low-profile finish. As a standard, off-the-shelf solution, the system is stockable and ready to ship with no custom lead times or project registration required. It is compatible with Philips 27BDL9015L/00, 27BDL9112L/00, 27BDL9115L/00, 27BDL9119L/00, 27BDL6112L/00, 27BDL6115L/00, and 27BDL6119L/00 displays. Browse the full Chief collection for compatible dvLED mounts and accessories.
Key Features
- Stacked dvLED design — Mounts vertically stacked Philips 27BDL LED displays into one continuous video wall.
- Modular design — Attaches to the top, bottom, and sides of other mounts for flexible configurations.
- X-axis lateral shift — Enables precise LED positioning across the array.
- Y-axis vertical shift — Provides accurate cabinet-to-cabinet alignment.
- Z-axis plumb adjustment — Compensates for wall imperfections to achieve a flat surface.
- Offset mounting slots — Ease installation and protect LED sides from damaging friction.
- Low-profile depth — Depth with display is 4.05 to 4.80 inches (103 to 122 mm).
- Stock-ready — A standard, off-the-shelf solution with no custom lead times or project registration.
Typical Applications
- Direct view LED video walls in broadcast studios
- Auditorium and commercial meeting space dvLED displays
- Lobby and government space digital signage
- House of worship and all-hands room video walls
| Specification | Detail |
|---|---|
| Model / SKU | TIL1X4PH |
| System | TiLED modular dvLED video wall mount |
| Configuration | 1x4 (vertically stacked) |
| Display series | Philips 27BDL 6000 and 9000 |
| Adjustments | X, Y, and Z-axis |
| Depth with display | 4.05 to 4.80 in (103 to 122 mm) |
| Installation | Offset mounting slots |
| Availability | Stock, off-the-shelf; no custom lead time |
Frequently Asked Questions
Q: Which displays does the TIL1X4PH support?
It supports the Philips 27BDL 6000 and 9000 Series, including 27BDL9015L/00, 27BDL9112L/00, 27BDL9115L/00, 27BDL9119L/00, 27BDL6112L/00, 27BDL6115L/00, and 27BDL6119L/00. Confirm your exact model before ordering.
Q: How is the video wall aligned?
Variable X-axis (lateral), Y-axis (vertical), and Z-axis (plumb) adjustments allow precise positioning and a flat result.
Q: How deep does it sit with a display?
The depth range with a display is 4.05 to 4.80 inches (103 to 122 mm) for a low-profile finish.
Q: Can I build a larger wall?
Yes. The modular design attaches to the top, bottom, and sides of other mounts to support larger configurations.
Q: What is the lead time?
It is a standard, off-the-shelf solution that is stockable and ships with no custom lead times or project registration required.
Q: What warranty applies?
This product is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for current warranty terms and support.
