Chief Led Mount 1X3 Lg Las & Leyard Tvf - TIL1X3PT
Product Overview

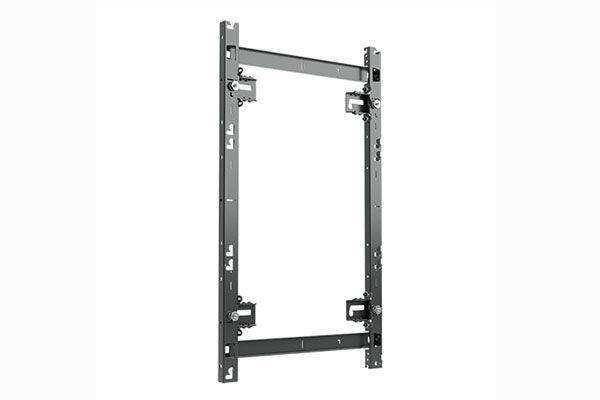

The Chief TIL1X3PT TiLED LED video wall mount stacks three LG LAS fine-pitch and Leyard TVF direct view LED displays into a continuous 1x3 column. It is engineered for commercial AV installations that demand exact, repeatable cabinet alignment. The modular platform expands vertically and horizontally to fit the space and the content. This dvLED video wall mount ships off the shelf with no custom lead times or project registration.
Product Description
The TIL1X3PT is part of Chief's TiLED direct view LED mounting system, matched specifically to LG LAS fine-pitch and Leyard TVF cabinets.
The mount attaches to the top, bottom, and sides of adjacent units, so a single hardware platform supports a wide range of video wall configurations. Integrated lateral and vertical shift let integrators move both the mount and the LED cabinet for tight alignment. A z-axis plumb adjustment compensates for imperfections in the wall surface to achieve a flat mounting plane. Keyhole slots speed the initial installation. Offset mounting slots protect the LED edges from damaging friction as cabinets are set in place. With the display installed, the assembly maintains a low-profile depth of 3.59 to 4.34 inches. As a standard, stockable solution, the TIL1X3PT is easy to specify, order, and install on demanding project schedules.
Key Features
- Modular architecture — Attaches to the top, bottom, and sides of other mounts to support varied video wall designs.
- Lateral and vertical shift — Enables fine mount and LED adjustments for precise cabinet-to-cabinet alignment.
- Z-axis plumb adjustment — Compensates for wall imperfections to keep displays in a true plane.
- Keyhole mounting slots — Allow fast and easy mount installation.
- Offset mounting slots — Protect LED sides from damaging friction during installation.
- Low-profile depth — Holds a 3.59 to 4.34 inch (91 to 110 mm) depth range with the display installed.
- Stockable solution — Standard off-the-shelf product ships with no custom lead times or project registration.
Typical Applications
- Broadcast studio set walls and backdrops
- Corporate lobby and all-hands room video walls
- Auditorium and house of worship stage displays
- Boardroom and conference room presentation walls
Technical Specifications
| Configuration | 1x3 vertically stacked video wall mount |
| Compatible Series | LG LAS fine-pitch (LAS012–LAS025 DB-F); Leyard TVF (TVF0.9–TVF2.5) |
| Mounting Depth (with display) | 3.59"–4.34" (91–110 mm) |
| Adjustments | Lateral, vertical, and z-axis plumb adjustment |
| Installation | Keyhole slots; offset mounting slots |
Frequently Asked Questions
Which displays is the TIL1X3PT compatible with?
It is designed for LG LAS fine-pitch cabinets (LAS012 through LAS025 DB-F variants) and Leyard TVF series cabinets from TVF0.9 through TVF2.5.
How many displays does it hold?
The TIL1X3PT supports three vertically stacked LED cabinets in a 1x3 column and can be combined with additional mounts to build larger arrays.
How is alignment handled during installation?
Lateral and vertical shift adjustments plus a z-axis plumb adjustment let the installer fine-tune cabinet-to-cabinet positioning for a flat, seamless image.
Does this require a custom lead time or project registration?
No. It is a standard, stockable solution that ships off the shelf, making it easy to specify and order for time-sensitive projects.
Does it integrate with other Chief TiLED mounts?
Yes. It attaches to the top, bottom, and sides of adjacent TiLED mounts to support a wide range of layouts. Browse more Chief mounting solutions for complementary hardware.
What warranty applies?
This product is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for current warranty terms and support.
