Chief K1C220S With Frameone Interface - K1C220SXF1

Product Overview

The Chief K1C220SXF1 is a dynamic height-adjustable single-monitor column mount with a pre-installed Steelcase FrameOne interface for fast attachment to FrameOne office furniture. Part of the enhanced Kontour K1C series, it combines gas-spring dynamic adjustment with manual column adjustment for a wide ergonomic range. Patented Centris Extreme Tilt delivers effortless fingertip positioning in offices, healthcare facilities, and commercial workspaces. The silver finish and forged-aluminum arm suit professional environments.

Product Description

The Chief K1C220SXF1 pairs the Kontour K1C column mount with a factory-installed Steelcase FrameOne interface so integrators can mount directly to the FrameOne furniture system without added brackets. The mount provides 20 inches (508 mm) of total height adjustment: 13 inches (330 mm) of dynamic adjustment using smooth-motion gas-spring technology, plus an additional 7 inches (177 mm) of manual adjustment on the column. Enhanced patented Centris Extreme Tilt offers +75 and -10 degrees of effortless tilt for comfortable viewing whether sitting or standing. The enhanced column interface lets users upgrade from single- to dual- or triple-monitor configurations later without disturbing the existing installation, protecting the original investment. Solidly constructed forged-aluminum arms carry a subtle silver finish that blends into professional interiors. Tool-free cable management covers keep cabling concealed for a clean look. Please note the K1C220SXF1 ships with the Steelcase FrameOne mounting interface only and does not include the standard desk mounting base shown in application imagery. With high levels of recycled content and a highly recyclable design, Kontour monitor arms may contribute to LEED-CI, -NC, and -EB credits. Explore comparable ergonomic mounts in the full Chief collection at Creation Networks.

Key Features

• Steelcase FrameOne interface — Ships with a pre-installed OFB215S FrameOne interface for fast, easy attachment to FrameOne furniture.
• 20 inches total height adjustment — Combines 13 in (330 mm) of dynamic gas-spring travel with 7 in (177 mm) of manual column adjustment.
• Centris Extreme Tilt — Enhanced patented tilt provides +75 and -10 degrees of effortless fingertip positioning.

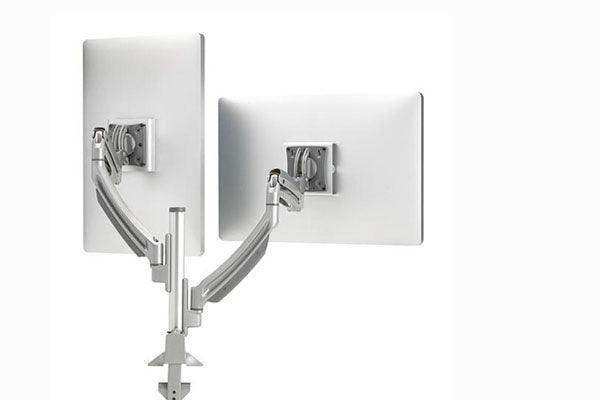

• Future-proof column interface — Upgrade from single to dual or triple monitors later without impacting the existing installation.
• Forged-aluminum construction — Sleek, solidly built arm in a subtle silver finish for professional spaces.
• Tool-free cable management — Cable covers conceal cabling for a clean, professional look.
• LEED contribution — High recycled content and recyclable design may contribute to LEED-CI, -NC, and -EB credits.

Typical Applications

• Steelcase FrameOne office furniture workstations
• Commercial office and open-plan workspaces
• Healthcare facility workstations
• Government and commercial meeting space desks

Technical Specifications

Frequently Asked Questions

Q: What does the K1C220SXF1 attach to?
It ships with a pre-installed Steelcase FrameOne (OFB215S) interface for fast attachment to the FrameOne office furniture system.

Q: Does it include a desk base?
No. It ships with the FrameOne mounting interface only and does not include the standard desk mounting base shown in application images.

Q: How much height adjustment is available?
It offers 20 in (508 mm) total: 13 in (330 mm) of dynamic gas-spring travel plus 7 in (177 mm) of manual column adjustment.

Q: Can I add more monitors later?
Yes. The enhanced column interface supports upgrading to dual or triple monitors without impacting the existing installation.

Q: Can it support LEED documentation?
Its high recycled content and recyclable design may contribute to LEED-CI, -NC, and -EB credits.

Q: Is the K1C220SXF1 covered by a warranty?
Yes. It is covered under the Legrand AV / Chief manufacturer warranty; contact Creation Networks for current warranty terms and support.
