Chief AS3LD Tempo™ Flat Panel Wall Mount System

Product Overview

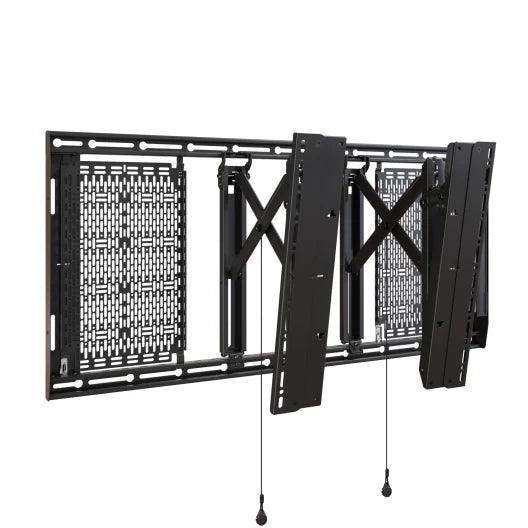

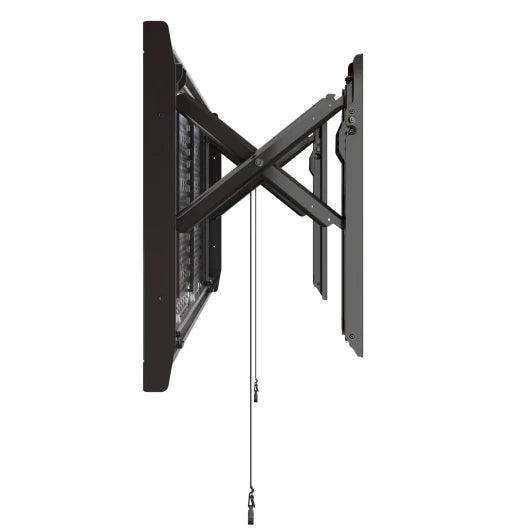

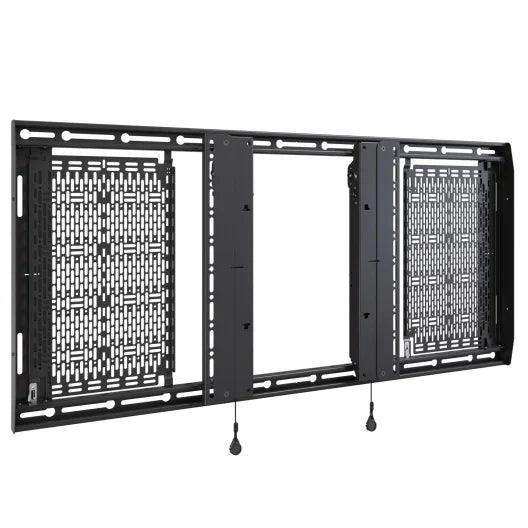

The Chief AS3LD Tempo is an all-in-one configurable flat panel wall mount system that streamlines installation workflow for typical 49-to-86-inch displays. It is designed for fast, repeatable deployments, especially mass rollouts, and stores 2 to 6 small AV devices behind the display on integrated Lever Lock storage panels. It supports displays up to 200 pounds with a low total installation depth that facilitates ADA compliance. The system installs in landscape orientation.

Product Description

The Tempo Wall Mount System is designed with installer feedback to improve efficiency and speed deployments. Ordered as one part number in one box, it can ship to site pre-loaded with small devices and cabling, reducing onsite personnel and time while minimizing last-minute shipping costs for missing parts. The wall plate and extending interface design help center the display in the right position, and the mount provides 10 degrees of adjustable display tilt in 2.5-degree increments plus up to 1 inch (25 mm) of post-install leveling. AV professionals can install 2 to 6 small devices behind the display on integrated Lever Lock storage panels; it ships with two 15-by-10-inch plates with space to add more, and the plates move along the mounting rail for the best component placement. Service is simplified with 12.6 inches (320 mm) of service access and an open wall plate for positioning power and data sources and in-wall storage. The system suits a typical screen size of 49 to 86 inches, mounts to 16- and 24-inch on-center studs, supports a VESA pattern up to 970 x 450 mm, and carries a 200-pound (90.7 kg) weight capacity. Minimum depth is 1.96 inches (50 mm) and the total installation depth facilitates ADA compliance when display depth is less than 2 inches. The mount is black, does not include a PDU, and is UL certified. Browse the full Chief collection for compatible mounts and accessories.

Key Features

• All-in-one system — One part number, one box, that can ship pre-loaded with small devices and cabling.
• Integrated device storage — Holds 2 to 6 small devices on Lever Lock plates that slide along the rail; ships with two 15-by-10-inch plates.
• 200 lb capacity — Supports displays up to 200 pounds (90.7 kg), typically 49 to 86 inches.
• Adjustable tilt — Provides 10 degrees of tilt in 2.5-degree increments.
• Post-install leveling — Up to 1 inch (25 mm) of leveling roll plus lateral shift for centering.
• Service access — 12.6 inches (320 mm) of service access with an open wall plate for power and data.
• VESA up to 970 x 450 mm — Accommodates large-format display patterns and 16 or 24 inch on-center studs.
• ADA-friendly depth — Minimum depth of 1.96 inches (50 mm) facilitates ADA compliance when display depth is under 2 inches.

Typical Applications

• Conference room and boardroom displays in mass rollouts
• Commercial meeting space and training room installations
• Government space and multi-purpose room flat panels
• All-hands room and auditorium displays

Frequently Asked Questions

Q: What displays does the AS3LD support?
It is designed for a typical screen size of 49 to 86 inches and supports displays up to 200 pounds with a VESA pattern up to 970 x 450 mm.

Q: How does it speed installation?
It ships as one part number in one box and can arrive pre-loaded with small devices and cabling, reducing onsite time and missing-part shipping costs.

Q: Can it store AV devices behind the display?
Yes. It holds 2 to 6 small devices on integrated Lever Lock plates and ships with two 15-by-10-inch plates, with room to add more.

Q: How much tilt and service access does it offer?
It provides 10 degrees of tilt in 2.5-degree increments, up to 1 inch of post-install leveling, and 12.6 inches of service access.

Q: Does it include a PDU?
No. A PDU is not included with the AS3LD.

Q: What warranty applies?
This product is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for current warranty terms and support.
