Chief Impact On-Wall Kiosk with Protective Glass (Portrait, 75", Black) - LW75UBPG

Product Overview

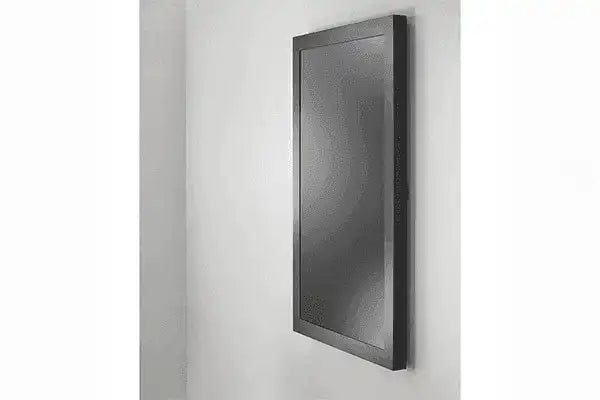

The Chief LW75UBPG is a black 75" Impact on-wall digital signage enclosure with factory-bonded protective glass for portrait LCD displays. This protective glass on-wall kiosk defends the screen against sharp objects and everyday impacts while keeping a sleek, low-profile look. Built as a portrait digital signage enclosure, the LW75UBPG pairs a depth-adjustable frame with an integrated wall reveal for clean commercial installs. It is a durable LCD display protective enclosure for lobbies, wayfinding, and other high-traffic public spaces.

Product Description

The Chief LW75UBPG 75" black Impact on-wall kiosk brings flexibility to the digital signage enclosure market while maintaining an aesthetic sleek enough to complement a wide range of commercial environments. Factory-bonded 5/32" thick tempered glass is adhered to the enclosure with industrial adhesives, providing protection for the LCD display from sharp objects as well as common impacts. A depth-adjustable exterior frame supports a wide range of displays, and a wall protrusion of 4" (101 mm) or less can be achieved using flat panels less than 2.75" (70 mm) in depth. An integrated wall reveal compensates for uneven walls to keep the frame plumb and provides passive cooling for the display. The exclusive design keeps the display mounted to the frame when opened for service and maintenance access, while reversible hinges let installers avoid obstructions during installation and service. The engagement latch accepts tamperproof hardware for security in unattended locations, and the large empty center backing enables use with in-wall boxes. Middle Atlantic Lever Lock technology is integrated to avoid cutting into walls, and multiple storage options are available. As a 75" portrait digital signage enclosure, the LW75UBPG suits menu boards, wayfinding, and interactive kiosks in commercial settings. Bezel size varies per product; reference the technical drawings and specification sheet for different image diagonals. Browse comparable enclosures in the Chief collection.

Key Features

• Factory-Bonded Protective Glass — Integrated 5/32" tempered glass protects the LCD display from sharp objects and common impacts.
• Depth-Adjustable Frame — The exterior frame adjusts to support a wide range of commercial displays.
• Low Wall Protrusion — A protrusion of 4" (101 mm) or less is achievable with panels under 2.75" (70 mm) deep.
• Integrated Wall Reveal — The reveal compensates for uneven walls to keep the frame plumb and provides passive cooling.

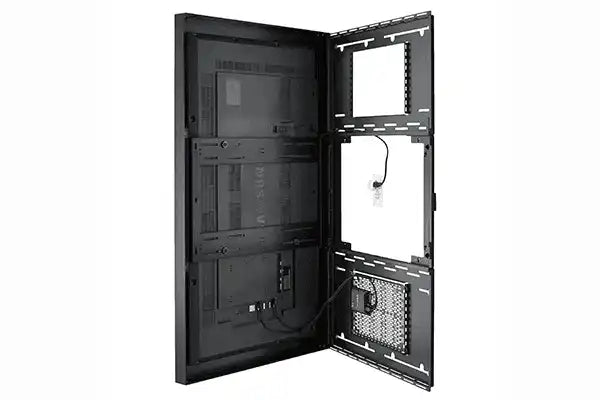

• Serviceable Design — The display stays mounted to the frame when opened, giving technicians full maintenance access.
• Reversible Hinges — Hinges reverse to avoid obstructions during installation and service.
• Secure Latch — The engagement latch accepts tamperproof hardware for unattended public locations.
• In-Wall Integration — A large empty center backing enables use with in-wall boxes, with Lever Lock storage options.

Typical Applications

• Commercial meeting space — Protected portrait signage in lobbies and reception areas.
• Government space — Durable public-facing displays in high-traffic civic buildings.
• House of worship — Wayfinding and announcement displays in shared congregation areas.
• Multi-purpose room — Impact-resistant signage where the space and audience change frequently.

Technical Specifications

Frequently Asked Questions

Q: What displays does the LW75UBPG support?
The depth-adjustable exterior frame supports a wide range of flat panel displays. Bezel size varies per product, so reference the Chief technical drawings and specification sheet to confirm fit for your image diagonal.

Q: How thick is the protective glass?
The enclosure integrates 5/32" thick tempered glass, factory bonded with industrial adhesives to protect the LCD from sharp objects and common impacts.

Q: How is the display serviced after installation?
The exclusive design keeps the display mounted to the frame when opened, and reversible hinges let technicians avoid obstructions, providing full service and maintenance access.

Q: Can the enclosure be secured against tampering?
Yes. The engagement latch can be secured with tamperproof hardware, making it suitable for unattended public installations.

Q: Does it work with in-wall AV boxes?
The large empty center backing enables use with in-wall boxes, and Middle Atlantic Lever Lock technology integrates storage without cutting into walls.

Q: What warranty applies?
This product is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for current warranty terms and support.
