Chief 40" B2B Portrait Floor Kiosk White - LF40UWP-B2B

Product Overview

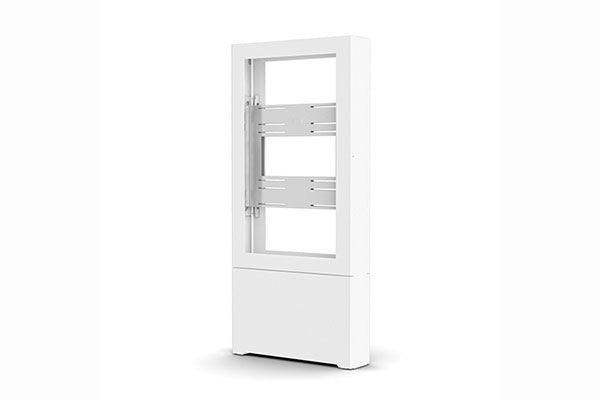

The Chief LF40UWP-B2B is an Impact Series back-to-back portrait floor kiosk that encloses a 40" display for commercial digital signage in open-area environments. This freestanding floor standing kiosk presents two displays mounted back to back, making it well suited to lobbies, retail floors, and transit concourses where viewers approach from both directions. Its no-exposed-fastener design and keyed locking security protect the display and supporting AV equipment while keeping the installation clean. The B2B portrait floor kiosk ships in white for bright interiors and branded spaces.

Product Description

The Impact floor standing kiosk gives integrators an aesthetic enclosure for displays in open commercial spaces without sacrificing serviceability. Chief's design keeps the display mounted to the frame when the kiosk is opened, so front service and maintenance access is fast and safe for a single technician. Tool-free removable storage panels expose a universal AV storage space sized to hold media players, power, and signal management hardware. Internal knockouts accommodate electrical junction boxes and up to 2RU of rack space, while external cable pathway knockouts route signal and power cleanly into the enclosure. Integrated passive cooling helps maintain display temperature during continuous digital signage operation. The back-to-back configuration supports two portrait displays facing opposite directions, doubling viewable messaging from a single floor footprint. Keyed locking security restricts access to the display and internal components in unattended public areas. This 40" digital signage kiosk is also offered in black as the LF40UBP-B2B, and additional Chief mounting solutions are listed in the Chief collection. Custom colors and logos can be special ordered for branded deployments.

Key Features

• Back-to-Back Portrait Design — Mounts two 40" displays facing opposite directions to maximize messaging from a single floor footprint in open areas.
• Front Service Access — The display stays mounted to the frame when opened, giving a single technician safe front access for service and maintenance.
• No Exposed Fasteners — A clean exterior with concealed fasteners keeps the kiosk visually unobtrusive in commercial environments.
• Keyed Locking Security — Locking access protects the display and internal AV equipment in unattended public spaces.
• Universal AV Storage — Tool-free removable storage panels reveal a universal AV storage space for media players and signal management hardware.
• Integrated Cable and Power Management — Internal knockouts support electrical junction boxes and 2RU rack spaces, with external cable pathway knockouts for clean routing.
• Integrated Passive Cooling — Built-in passive cooling helps maintain display temperature during continuous signage operation.
• 125 lb Weight Capacity — Supports up to 125 lbs (56.7 kg) per screen for a wide range of commercial displays.

Typical Applications

• Commercial Meeting Space — Wayfinding and informational signage in lobbies and shared building areas.
• Multi-Purpose Room — Flexible digital signage where viewers approach from multiple directions.
• Government Space — Secure, lockable public information displays in civic and transit settings.

Technical Specifications

Frequently Asked Questions

What size display does the LF40UWP-B2B support?
It is engineered for 40" displays with up to a 400 x 400 mm VESA pattern and supports up to 125 lbs (56.7 kg) per screen.

Why is this a back-to-back (B2B) kiosk?
The B2B configuration mounts two displays facing opposite directions, so audiences approaching from either side see content from one freestanding floor unit.

How are media players and AV equipment housed?
Tool-free removable panels expose a universal AV storage space, with internal knockouts for electrical junction boxes and 2RU rack space plus external cable pathway knockouts.

How is the display serviced after installation?
The display remains mounted to the frame when the kiosk is opened, allowing a single technician safe front-access service without removing the screen.

Is the kiosk secure for unattended public areas?
Yes. Keyed locking security restricts access to the display and internal components.

What warranty applies?
This kiosk is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for current warranty terms and support details.
