Chief Large Flat Panel Dual Display Floor Stand (without interfaces) - PF22000S
Chief Large Flat Panel Dual Display Floor Stand (without interfaces) - PF22000S is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Chief Large Flat Panel Dual Display Floor Stand (without interfaces...
Product Overview

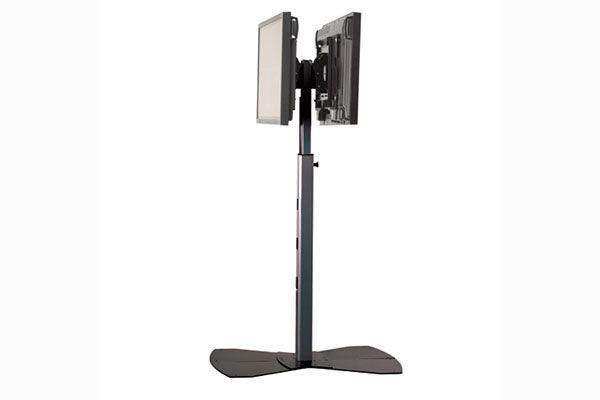

The Chief PF22000S is a large universal floor stand that supports two flat panel displays back-to-back for digital signage and corporate presentations. It handles displays from 42 to 86 inches at up to 200 lbs each, with telescoping height adjustment and integrated cable management. The silver universal design ships without display interfaces, supporting a wide range of mounting patterns.
Product Description
The PF22000S AV stand supports two displays back-to-back and features telescoping height adjustment with integrated cable management, making it ideal for digital signage and corporate presentations. The center of each display can be positioned between 51.38 and 85.38 inches (1305 to 2169 mm) from the floor, with 34 inches (864 mm) of manual height adjustment. As a universal solution, it accommodates mounting patterns from 200 x 200 mm up to 862 x 517 mm and supports typical screen sizes from 42 to 86 inches. Weight capacity is 200 lbs (90.7 kg) per display, giving you headroom for large commercial panels. Tilt is adjustable +15 and -15 degrees, and post-installation leveling roll lets you fine-tune the displays after mounting. Both landscape and portrait orientations are supported. The stand has a shipping weight of 70 lbs (31.75 kg) and is finished in silver. For single-display and back-to-back alternatives, browse the Chief collection.
Key Features
- Back-to-back dual display — Supports two displays for double-sided signage and presentations.
- High weight capacity — Handles up to 200 lbs (90.7 kg) per display.
- Wide screen range — Fits typical screen sizes from 42 to 86 inches.
- Telescoping height adjustment — Offers 34 inches (864 mm) of manual adjustment, with display centers from 51.38 to 85.38 inches off the floor.
- Universal mounting — Accommodates patterns from 200 x 200 mm to 862 x 517 mm.
- Tilt and leveling — Provides +15/-15 degree tilt plus post-installation leveling roll.
- Dual orientation — Supports both landscape and portrait.
- Integrated cable management — Routes cabling for a clean installation.
Typical Applications
- Commercial meeting space and lobby digital signage
- Conference room and boardroom presentations
- Multi-purpose room double-sided displays
- Auditorium and training room signage
Technical Specifications
| Number of Monitors | 2 (back-to-back) |
| Typical Screen Sizes | 42 - 86" |
| Weight Capacity | 200 lbs (90.7 kg) per display |
| Center of Display to Floor | 51.38 - 85.38" (1305 - 2169 mm) |
| Manual Height Adjustment | 34" (864 mm) |
| Mounting Pattern (Universal) | 200 x 200 mm - 862 x 517 mm |
| Tilt | +15 / -15 degrees |
| Post-Installation Leveling Roll | Yes |
| Orientation | Landscape, Portrait |
| Solution Type | Universal |
| Color | Silver |
| Shipping Weight | 70 lbs (31.75 kg) |
Frequently Asked Questions
Q: How many displays does the PF22000S support?
It supports two displays back-to-back for double-sided viewing.
Q: What size and weight displays are compatible?
It fits typical screen sizes from 42 to 86 inches and supports up to 200 lbs (90.7 kg) per display.
Q: Does it include display interfaces?
No. This is the universal version supplied without interfaces; it accommodates mounting patterns from 200 x 200 mm to 862 x 517 mm.
Q: How adjustable is the height?
It offers 34 inches (864 mm) of manual height adjustment, positioning display centers from 51.38 to 85.38 inches off the floor.
Q: Can displays be leveled and tilted after installation?
Yes. It provides +15/-15 degree tilt and post-installation leveling roll, and supports both landscape and portrait orientations.
Q: What warranty applies?
The PF22000S is covered under the Legrand AV / Chief manufacturer warranty. Contact Creation Networks for current warranty terms and support.
