Cambridge Sound Qt X 300 Control module, sound masking generator, and controller - 0078.900

Cambridge Sound SKU: 0078.900
No reviews

Price:
Sale price$2,800.00

Description

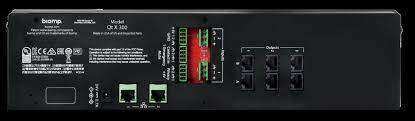

The Cambridge Qt X 300/300D control module is a versatile device that functions as a sound masking generator, controller, third-octave band equalizer, and amplifier. It comes equipped with two auxiliary audio inputs that allow for the distribution of audio from paging controllers and background music players. The Qt X 300/300D has the ability to control up to three zones of Qt standard or active emitters. This compact three-zone networkable controller is ideal for installations covering up to 36,000 square feet (3,345 m2). Each zone can be adjusted independently for masking and aux audio levels and spectra. Both models are fully compatible with Biamp’s SageVue™ system management software. When multiple controllers are included in a single system, audio inputs can be shared across all controllers via AVB or Dante (300/D).

• Compatible with Qt emitters and Qt active emitters
• Supports up to three zones
• AVB or Dante (300/D) media network
• Two audio inputs for paging and music
• Contact closure integrates with fire alarm systems

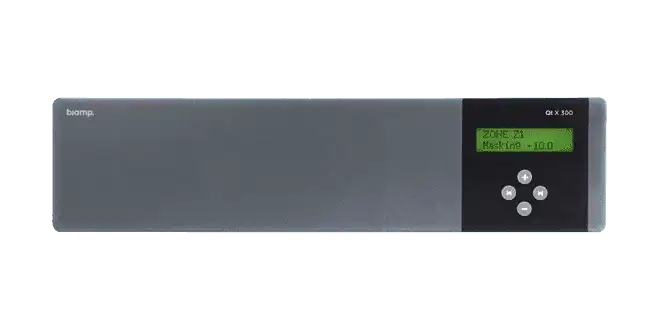

• Front panel with LCD
• Front panel lock (via software control)
• Auto ramping
• Event scheduling
• Adjustable equalizer for masking and audio inputs
• Four non-correlated sound masking audio sources per

  zone

• Built-in clock with system NTP support
• Wall mount bracket included, optional rack mount
  bracket also available
• Dual network ports (media / control)
• Web interface control by any web-enabled device
• Third-party control API/Ethernet
• CE marked, ETL listed, and RoHS compliant
• Covered by Biamp Systems’ five-year warranty
• Manufactured in the U.S.A.
• TAA compliant
• GSA eligible



QT EMITTERS™ The backbone of the Qt® sound masking system. These emitters deliver 4 incoherent audio channels making the Qt system the best sound masking system on the market. The standard mounting is for acoustical tile ceilings.

  1. UNIVERSAL BRACKET This enclosure is used for mounting the Qt emitter to the wall or ceiling.
  2. BEAM BRACKET This enclosure is used for mounting the Qt emitter to exposed I-beams.
  3. DRYWALL MOUNT This enclosure is used for mounting the Qt emitter into drywall ceilings.
  4. CONDUIT MOUNT This enclosure is used for mounting the Qt emitter into ceilings in regions requiring conduit mounting.
  5. CEILING CONDUIT MOUNT This enclosure is used for mounting the Qt emitter into acoustic ceiling tile or drywall in regions with special fire and/or conduit requirements.
  6. QT ROOM CONTROL The Qt Room Control can be used to adjust the sound masking level with 6 discrete level selections (including off) for an individual room or space with 2-8 emitters



  • MAXIMUM COVERAGE AREA:
  • 36,000 square feet (3,345 m2)
  • ACTIVE EMITTERS
  • Max Emitter/Device Capacity:
    50 Qt Active Emitters per cable run
  • Max Emitter Cabling Distance:
    800 feet (243m) per cable run
  • STANDARD EMITTERS
  • Max Emitter/Device Capacity:
    60 Qt Emitters per cable run
  • Max Emitter Cabling Distance:
    1000 feet (300m) per cable run
  • ZONES:
  • 3 (2 Cable Runs Per Zone)
  • DIMENSIONS:
  • 3.5"X11"X3.8"
    (89 mm x 279 mm x 97 mm)
  • WEIGHT:
  • 1.5 lbs (0.68kg)
  • ACCESSORIES
  • Includes wall mount bracket
    – optional rack mount bracket available
  • DOWNLOAD SPEC SHEET
  • DOWNLOAD»
  • Product Drawing
  • DOWNLOAD»
