C2G C2G41604 4-Port HDMI® Switch - 4K 60Hz

C2G SKU: C2G41604
No reviews
Price:
$211.99

Description



The 4-Port HDMI Switch - 4K 60Hz is a 4-input 1-output switch supporting up to 4K (3840 x 2160 at 60hz, 4:4:4) video, ideal for applications utilizing the HDMI 2.0 standard. A perfect solution for connecting and switching between computers, Blu-ray™ players, gaming consoles, digital cable or satellite boxes, and A/V receivers.

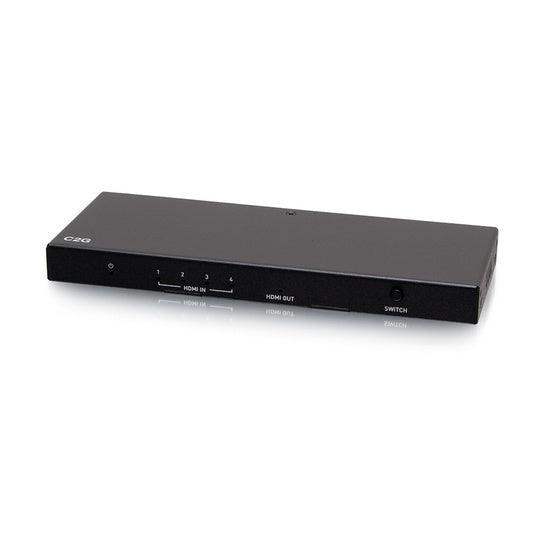

This product offers control and flexibility via a manual push button located conveniently on the front of the switch or by remote control over IR, allowing for quick changes between video sources.

The HDMI switch is HDCP 2.2 compliant and supports exceptional 4K Ultra HD resolutions up to 4096 x 2160 at 60hz, handling total HDMI data rates up to 18Gbps.

Additional Technical Spec

Electrical Specification

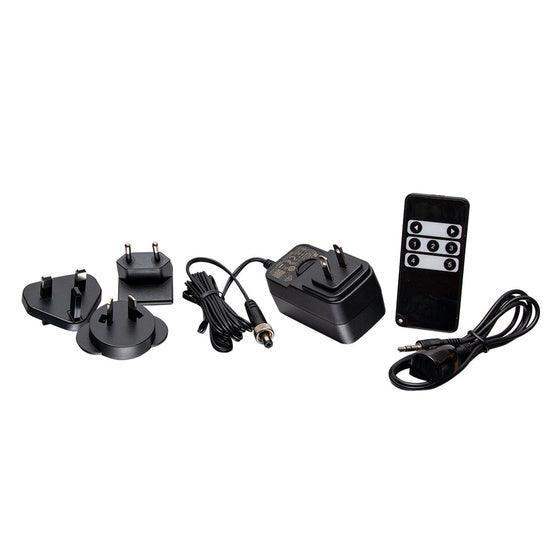

  • Power Adapter: Electrical: Input: 100-240VAC, 50-60Hz, 0.3A; Output: 5VDC, 1A

Signal Specifications

  • Video Resolution: Up to 4K resolution at 60Hz, 4:4:4

Physical Specifications

  • Operating Temperature: 0°C to 45°C; 10-90% RH (Non-Condensing)
  • Storage Temperature: -20°C to 70°C; 10-90% RH (Non-Condensing)
  • Connector 1: DC Jack: OD=6.3mm, ID=2.0mm, Nickel Plated
  • Connector 2: HDMI Type A Female, Nickel Plated
  • Power Adapter Cable Length: 1800±50mm

Physical Characteristics

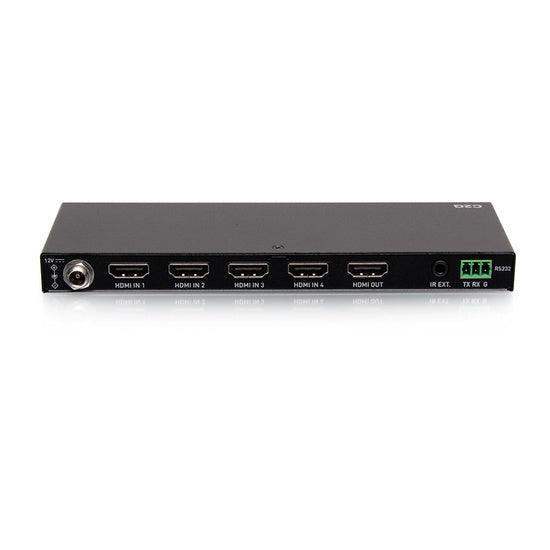

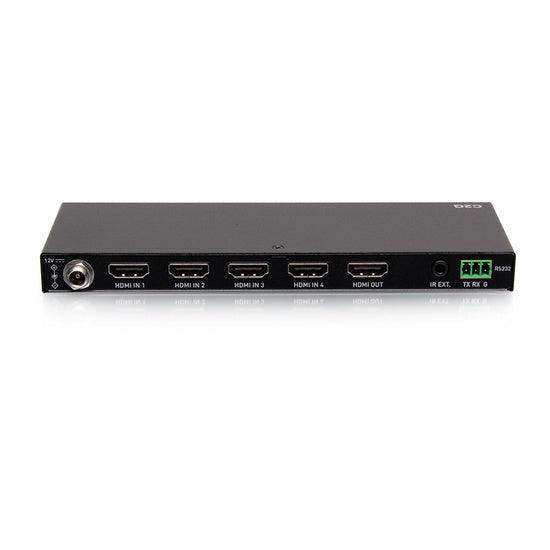

  • Input: HDMI Type A Female, Nickel Plated
  • Output: (x4) HDMI Type A Female, Nickel Plated
  • Switch Dimensions (LxWxH): 175x66.2x18mm
  • Switch Dimensions with Mounting Brackets (LxWxH): 218x66.2x18mm
  • Power Adapter Cable Length: 1800±50mm
  • Power Adapter Dimensions (L×W×H): 64.59x39x33.68mm
  • QC Inspection: 1080p and 4K 60Hz 4:4:4 video/ image test on all ports, IR control function test and accessory functionality
