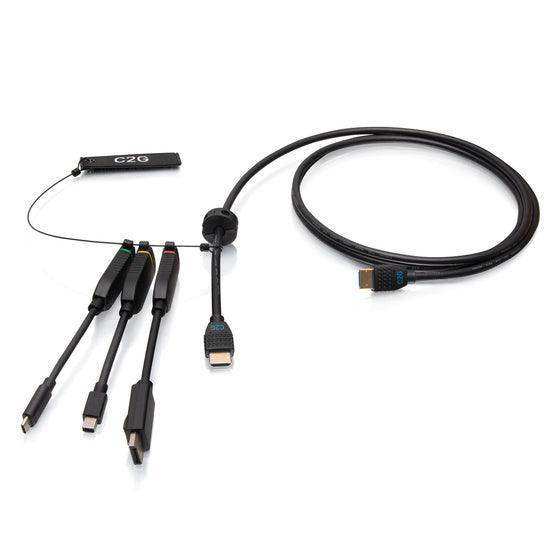

C2G C2G30052 6ft (1.8m) 4K HDMI® Premium Cable and Dongle Adapter Ring with Color Coded Mini DisplayPort™, DisplayPort, and USB-C®

The Patented (US 11,444,419 B2) Universal 4K HDMI Dongle Adapter Ring is the perfect addition to conference rooms, huddle spaces, lecture halls, or classrooms to make sure that anyone can connect. The standard configuration includes the adapters to connect nearly any device to the in-room display while supporting up to a 4K video resolution. This adapter ring includes HDMI to DisplayPort, MiniDisplayPort and USB-C adapters to meet connectivity challenges.

Dongle Style Adapter
It can be awkward when connecting an adapter to a smaller laptop or tablet. The adapter may not line up correctly, causing the computer to shift or not set flat on the table. The dongle style adapter gives more flexibility, allowing for better placement when connecting to thin or lighter weight laptops.

Color Coded Adapters
Each adapter is color-coded with a band that saves time and frustration by making it easy to identify the adapter you need quickly.

Integrated Pull Tab
Quickly grab the adapters when you need them with the integrated Pull Tab that is also available to be customized to feature your company or organization logo. Minimum order quantities apply to customized Pull Tabs.

Pre-Mounted HDMI Cable Included
The included pre-mounted C2G Performance Series Premium HDMI cable allows this adapter ring to be utilized right out of the box to the in-room HDMI display. The adapter ring slides to the HDMI connector when needed and out of the way when not in use, reducing strain on the HDMI cable and clutter on the tabletop. The optional stopper fits on HDMI cables from 5mm to 10mm in diameter and prevents the adapters from sliding too far down the cable.

Tools Included
The tools for mounting the adapters and optional stopper are in the box to simplify the installation process. The innovative HDMI Cable Gauge Tool reduces stopper installation time by allowing the right-sized stopper insert, allowing for quick identification of the HDMI cable.

Additional Technical Specifications

HDMI Cable Specs

• Supports HDMI Resolutions up to 4K 60Hz, 4:4:4, 18Gbps
• Jacket Color: Black, PVC Molding

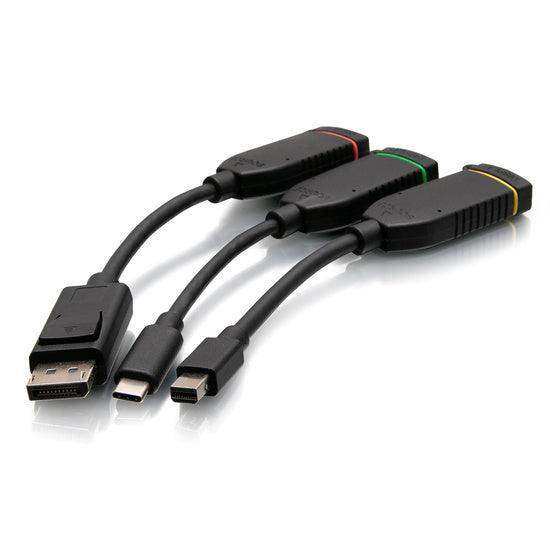

Dongle Adapter Specs

Signal Specifications
• USB Type-C to HDMI Dongle: 100% Functional Test at 4K/60Hz/4:4:4 Resolution with Standard AV Test Equipment
• DisplayPort to HDMI Dongle: 100% Functional Test at 4K/30Hz Resolution with Standard AV Test Equipment
• Mini DisplayPort to HDMI Dongle: 100% Functional Test at 4K/30Hz Resolution with Standard AV Test Equipment

Electrical Specifications
• Rating: Temp 80°C; Voltage 30V
• Conductor Resistance: At 20°C Max 32AWG: mDP/DP: 588.85 OHMS/KM; USB-C: 588 OHMS/KM; 24AWG: 86 OHMS/KM
• Insulation Resistance: mDP/DP: 10M OHMS/KM Min at 20°C DC 500V
• Insulation Resistance: USB-C: PP/HD-PE DC 500V 100M OHMS/KM Min at 20°C
• Dielectric Strength: AC 500V/1 Minute No Breakdown

Physical Specifications
• Operating Temperature: 0°C - 40°C (0% - 90%RH)
• Storage Temperature: -10°C - 60°C (0% - 90%RH)
• mDP/DP Minimum Bend Radius: R52mm
• USB-C Minimum Bend Radius: R45mm
• Cables Jacket Rating: VW-1
• Tensile Strength: Unaged: 1500PSI Min, Aged: 70% Min

Physical Characteristics
• HDMI Female: Solder Type, Contacts: Brass, Gold Flash, Housing: LCP, Black with PCB, Shell: SPCC, Gold Plated
• USB Type-C Male (Green Band): Solder Type, Contacts: Brass, Gold Flash, Housing: LCP, Black, Shell: Gold Plated
• DisplayPort Male (Red Band): Solder Type, Contacts: Gold Flash, Housing: LCP Black, Shell: Gold Plated (with Latches)
• Mini DisplayPort Male (Yellow Band): Solder Type, Contacts: Gold Flash, Housing: LCP Black, Shell: Gold Plated
• All Hoods: Molded Black PVC
• PC Eyelet: 17.8x4.7x2.6mm, Black, Material: PC
• Pull Tab: 80x25x2mm, Material: Polyester, Black Background, White Text, with Black Eyelet
• Universal Mounting Bracket: 85x65x1.2mm, Material: C.R.S. Rigidity: 1/4H, Color: Black
• Product is CE marked and conforms to 2011/65/EU ROHS 2
