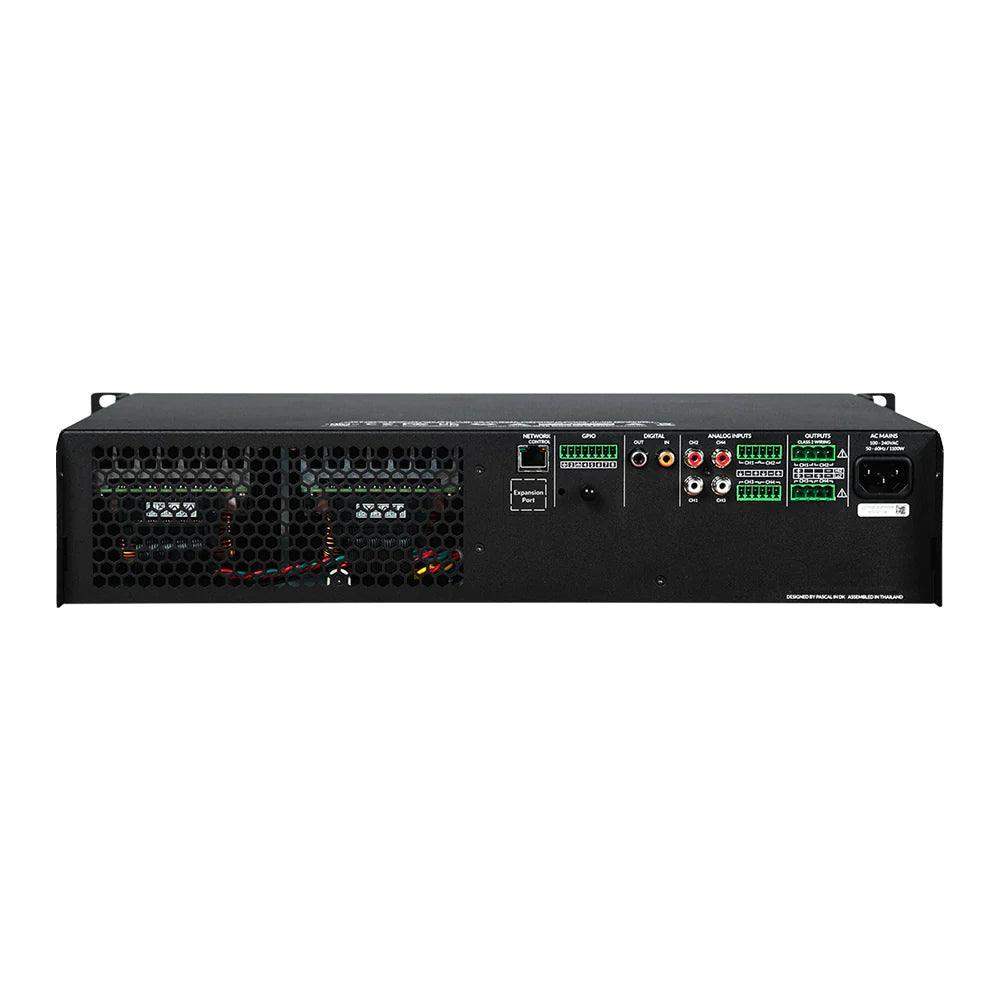

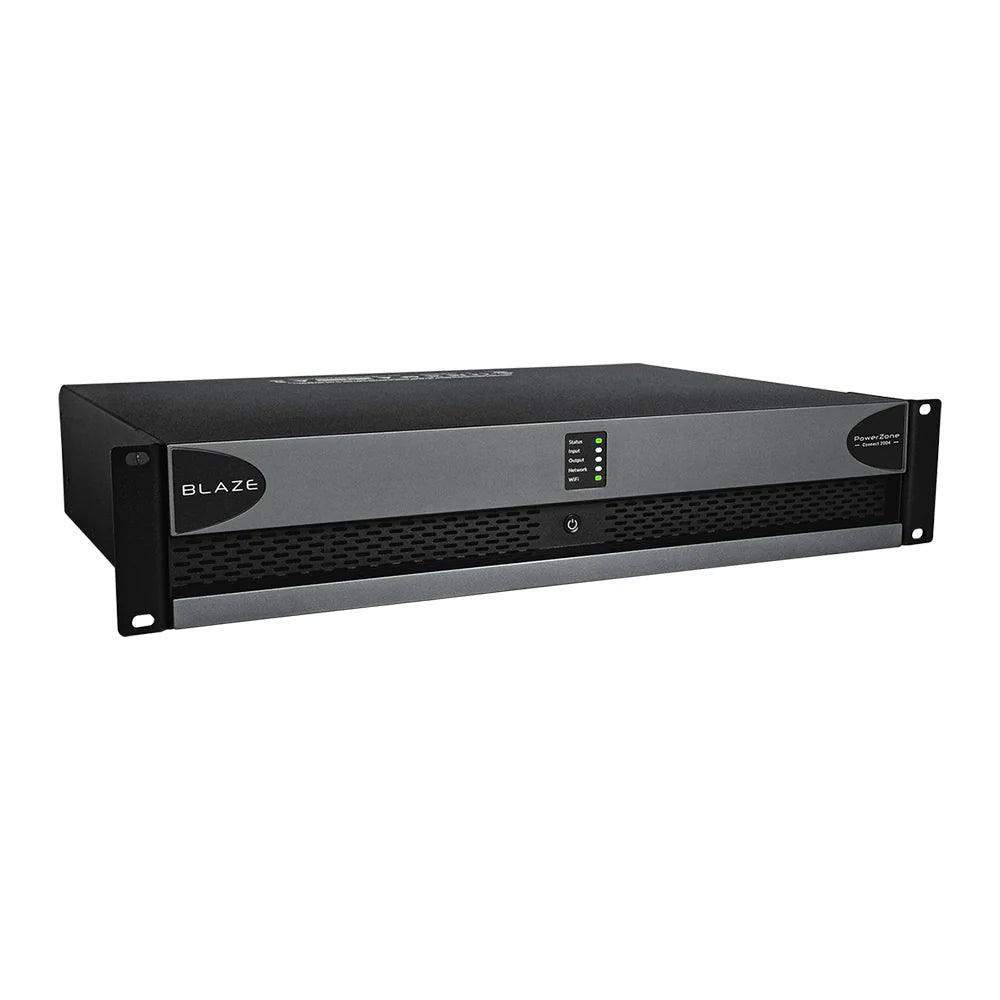

Blaze Audio PowerZone Connect 2004 - Networkable 4-Channel Install Power Amplifier - LBX-888-003
Blaze Audio PowerZone Connect 2004 - Networkable 4-Channel Install Power Amplifier - LBX-888-003
Roll over image to zoom in Click on image to zoom
Blaze Audio PowerZone Connect 2004 - Networkable 4-Channel Install Power Amplifier - LBX-888-003
Blaze Audio PowerZone Connect 2004 - Networkable 4-Channel Install Power Amplifier - LBX-888-003
Product Questions? Ask Our Experts!
Tel: 888.230.3661 sales@creationnetworks.net Contact us today for quantity & package discounts!

Blaze Audio PowerZone Connect 2004 - Networkable 4-Channel Install Power Amplifier - LBX-888-003

Blaze Audio SKU: LBX-888-003
No reviews
Price:
$1,999.00 $2,400.00

Description

The PowerZone Connect 2004 is a solid, reliable, full rack, DSP amplifier with network connection for easy configuration and control. Its network can be wired or wireless and allows access to the PowerZone Control web app's system setup and audio configuration menu. From here you can manage sound zones, inputs/outputs, update firmware, import speaker pre-sets and access many professional EQ settings – configuration takes only a few minutes and can even be set up from your phone's browser.

  • DSP – full matrix DSP embedded and controlled via TCP/IP
  • Targeted Constant Voltage – Optimal hybrid of Lo-Z and Hi-Z performance
  • Master / Slave functionality – S/PDIF link to multiple amps
  • UREC™ universal power supply with PFC
  • Market proven reliability – Based on Pascal’s proven technologies
  • 5 Year warranty – Blaze Audio products are designed to endure

Possible Applications:

  • Shopping Malls
  • Large Scale Paging and Distribution
  • Auditoriums
  • Hotels and Conferences
  • Theaters
  • Foreground Music
  • Casinos


PowerZoneControl
You can set up and control any PowerZone Connect DSP amplifier using your phone, tablet, or PC with the smart PowerZone Control Web App.

System integrators now have the freedom to manage even the most complex install projects with our dedicated PowerZone Control web app. Configure everything from your phone, or any other device of your choice. Simply connect through the amplifier’s built-in Wi-Fi, or direct via the network port.

PowerZone Control makes life easier -thanks to its intuitive interface giving access first to the basic system set up, and then the advanced configuration and professional tuning settings. It allows you to create the most impressive multizone sound system, in the least amount of time.

Channels 4 x Lo-Z/2 x Hi-Z
Output Power @ 2Ω 4 x 500 W (SE)
Output Power @ 4Ω 4 x 500 W (SE)
2 x 1000 W (BTL)
Output Power @ 8Ω 4 x 250 W (SE)
2 x 1000 W (BTL)
Output Power @ 70V 2 x 1000 W (BTL)
Output Power @ 100V 2 x 1000 W (BTL)
Total System Power 2000 W
Power Consumption 700 W
Output Voltage 65 Vp / 130 Vpp (SE unloaded)
130 Vp / 260 Vpp (BTL unloaded)
Weight 7.4 kg
Dimensions 88 x 440 x 332 mm
(3.5 x 17.3 x 13.1 in)
Output Circuitry UMAC™ Class D - full bandwidth PWM modulator with ultra-low distortion
Signal To Noise-Ratio Over 108 dB (A-weighted, 20 Hz-20 kHz, 8 Ω load)
THD+N (typical) 0.05 % (20 Hz-20 kHz, 8 Ω load, 3 dB below rated power)
Frequency Response 20 Hz-20 kHz (+0/-0.5 dB (8 Ω load, 3 dB below rated power)
Protection Circuits Short circuit -, DC -, Undervoltage -, Temperature - and Overload protection
Power Supply UREC™ universal mains switch mode power supply with Power Factor Correction (PFC) and standby converter
Operating temperature 0-40° C
Operating Voltage/Frequency Universal Mains, 100 V-240 V, 50 Hz-60 Hz
Standby Consumption 0.5 W
Accessories 2x rack ears, 4 x adhesive feet
Power Ratings 1 % THD @ 120 Vac and 230 Vac
