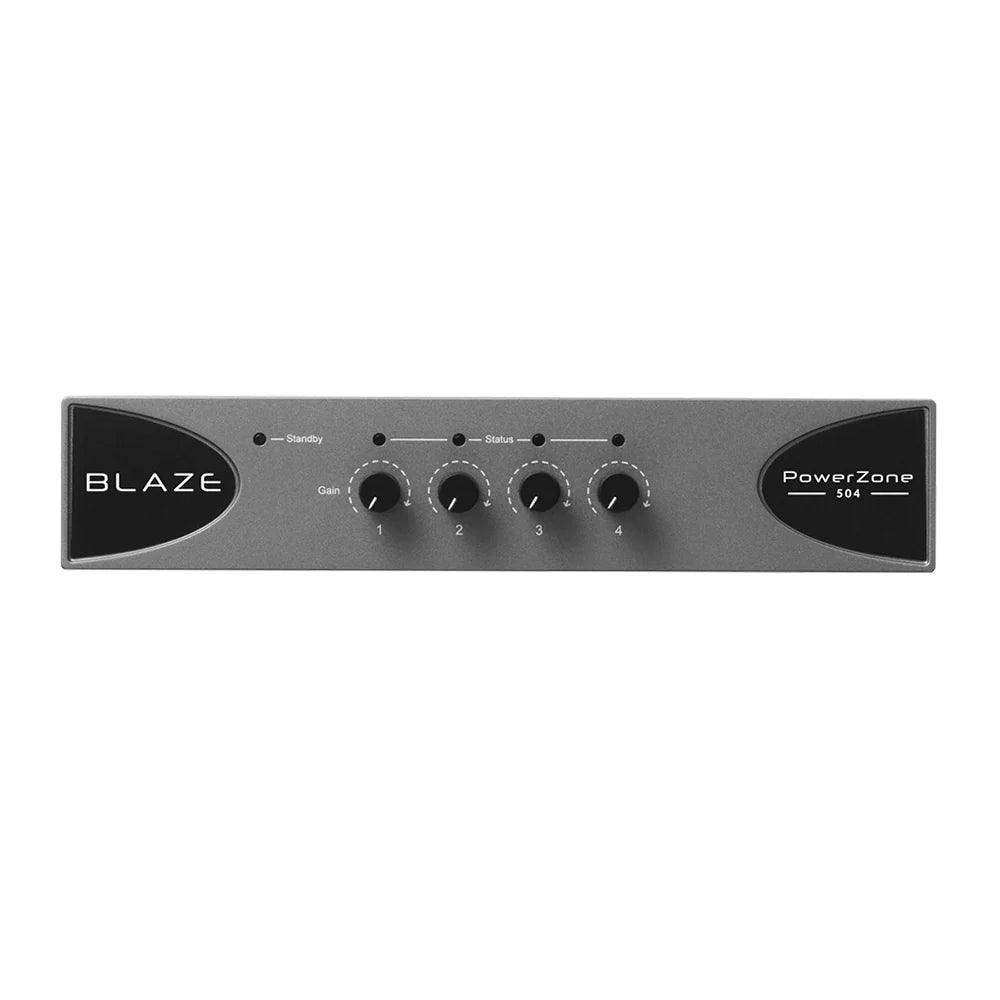

Blaze Audio PowerZone 504 – 4-Channel 500W Install Power Amplifier

Product Overview

The Blaze Audio PowerZone 504 is a 4-channel 500W install power amplifier built for commercial audio installations where channel count and installation simplicity take priority over raw output power. Delivering 4 x 125W into 4Ω, it is a capable commercial audio amplifier for conference rooms, training rooms, and commercial meeting spaces that require reliable multi-zone audio distribution in a compact, rack-mount package. The non-networked Class-D design eliminates IT dependency, making it a straightforward choice for integrators specifying a background music amplifier for commercial installation. At $999 MSRP, the PowerZone 504 offers a practical entry into the Blaze Audio install amplifier range for budget-conscious projects that still demand professional-grade build quality.

Product Description

The Blaze Audio PowerZone 504 provides 500W of total Class-D amplification distributed equally across four independent channels, each rated at 125W into 4Ω. This output configuration is well-suited to driving ceiling speaker systems in smaller commercial zones, where moderate per-channel power and reliable 4-channel distribution are the primary specification requirements. As a non-networked install power amplifier, the unit requires no IP configuration, network switches, or software commissioning, significantly reducing setup time for installations where audio distribution is the sole requirement.

The 1U rack-mount chassis fits neatly into standard 19-inch equipment racks, occupying minimal space alongside DSPs, switchers, and control system hardware. Euroblock inputs provide secure, locking terminations for permanent wiring runs, while RCA inputs offer additional flexibility for quick source connections during system integration or servicing. Both input types accept standard line-level signals, making the PowerZone 504 compatible with virtually any upstream source processor or mixer in a commercial AV system.

Auto-standby engages automatically during periods of signal absence, lowering idle power draw in environments with variable occupancy such as boardrooms and multi-purpose rooms. Thermal protection and short-circuit protection circuitry monitor operating conditions continuously, reducing the risk of amplifier or loudspeaker damage in the event of a fault. For integrators evaluating a 4-channel Class-D install amplifier at the 500W tier, the PowerZone 504 offers a dependable and cost-effective specification. View the full Blaze Audio range at Creation Networks to compare with the PowerZone 252 and PowerZone 1004.

Key Features

• 4-Channel Class-D Amplification — Four independent output channels enable simultaneous multi-zone audio distribution from a single 1U rack unit.
• 500W Total Output Power — Provides 4 x 125W at 4Ω, suited to driving ceiling speakers and compact commercial loudspeaker arrays across multiple zones.
• 1U Rack-Mount Chassis — Compact form factor integrates cleanly into standard 19-inch AV racks without consuming disproportionate rack space.
• Euroblock and RCA Inputs — Dual input types support permanent installation wiring and flexible line-level connections for a range of source equipment.
• Auto-Standby Mode — Reduces idle power consumption automatically when no input signal is detected, extending equipment service life in intermittent-use spaces.
• Thermal and Short-Circuit Protection — Built-in protection circuitry guards the amplifier and connected loudspeakers against common electrical fault conditions.
• Non-Networked Design — Operates without network connectivity, eliminating IP configuration requirements and simplifying overall system commissioning.
• Commercial-Grade Build Quality — Designed for permanent installation in demanding commercial environments with reliable long-term operation as the primary design criterion.

Typical Applications

• Boardroom
• Conference room
• House of worship
• Commercial meeting space
• Multi-purpose room
• Training room
• Auditorium

Technical Specifications

Frequently Asked Questions

What is the rated output power of the PowerZone 504?
The PowerZone 504 delivers 4 x 125W into 4Ω across its four independent channels, for a total system output of 500W. This is suitable for driving standard commercial ceiling speakers and compact passive loudspeakers in multi-zone installations.

How does the PowerZone 504 differ from the PowerZone 1004?
The PowerZone 504 and PowerZone 1004 share the same 4-channel, 1U non-networked Class-D architecture. The key difference is output power: the PowerZone 1004 provides 4 x 250W at 4Ω versus the PowerZone 504's 4 x 125W. Choose the 1004 for applications requiring higher SPL headroom or longer cable runs to loudspeakers.

Can the PowerZone 504 be used with a DSP or audio processor?
Yes. The Euroblock and RCA line-level inputs are compatible with any standard DSP, mixer, or signal processor output. This makes the PowerZone 504 straightforward to integrate into complete commercial AV systems with upstream processing.

Does the PowerZone 504 require network configuration?
No. The PowerZone 504 is a non-networked amplifier. It operates entirely from its analog inputs and does not require an IP address, network switch port, or software configuration of any kind.

What protection features are included?
The PowerZone 504 includes thermal protection to guard against overheating and short-circuit protection to prevent damage from wiring faults or loudspeaker failures. These features operate automatically and require no user configuration.

Is the PowerZone 504 suitable for permanent rack installation?
Yes. The 1U rack-mount chassis and Euroblock input connectors are both oriented toward permanent installation in commercial equipment racks. The unit is designed for the demands of continuous commercial use.

Who do I contact for technical support or warranty claims?
Technical support, warranty assistance, and RMA handling for Blaze Audio products purchased from Creation Networks are managed through our team. Contact Creation Networks directly for post-sale support.
