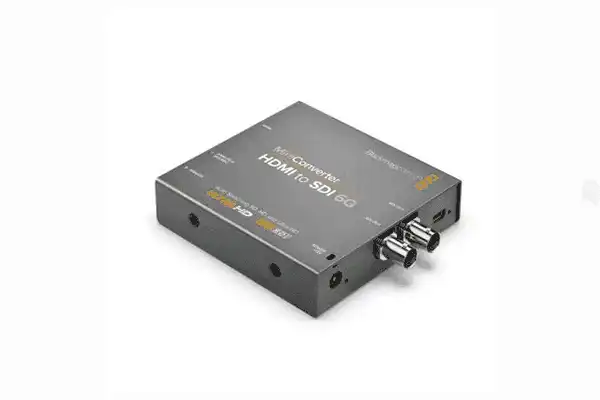

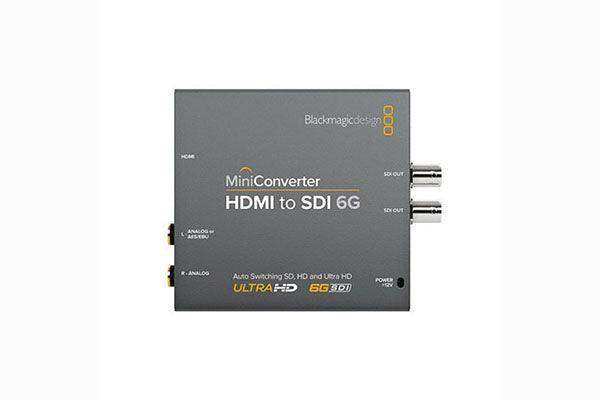

Blackmagic Design Mini Converter - HDMI to SDI 6G - CONVMBHS24K6G

Availability: Call for Availability
Availability: Direct Ship
Blackmagic Design SKU: CONVMBHS24K6G
No reviews
Price:
$155.00

Description

The Blackmagic Design HDMI to SDI 6G Mini Converter converts HDMI to SD, HD, 3G, or 6G-SDI in resolutions up to DCI 4K (4096 x 2160) at 24p and UHD 4K (3840 x 2160) up to 30p. This is useful for connecting consumer devices that output HDMI signals with professional SDI video equipment. With a compact form factor and easy-to-use controls, the Mini Converter is ideal for a variety of broadcast, post-production, and professional AV applications.

Using 4K HDMI and 6G-SDI technologies, the Mini Converter automatically detects the input video format and instantly changes between SD, HD, and UHD/DCI 4K formats. The two 6G-SDI outputs also support SD and HD-SDI signals for integration into existing workflows. Both 6G-SDI outputs send duplicate signals. Audio is embedded in the SDI output from either the HDMI input or from the two 1/4" input jacks which support four channels of AES/EBU digital audio or two channels of analog audio.

  • The Mini Converter's settings are controlled using the built-in switches or via USB using the control software for Max OS X or Windows computers, which can be downloaded on Blackmagic Design's website. The USB port also enables the firmware to be updated.
  • The device is powered by an included 12V power supply and includes international socket adapters.
  • 4K HDMI Input
  • 2 x 6G-SDI Outputs
  • Supports SD, HD, UHD 4K & DCI 4K Signals
  • Automatic Input Signal Detection
  • 24-Bit, 48 kHz Audio
  • Analog & AES-EBU Digital Audio Inputs
  • Embeds Audio Into SDI Output

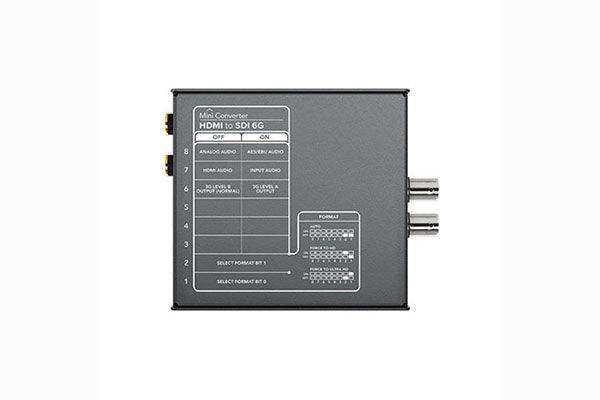

  • Settings via Mini Switches or Software
  • USB 2.0 Port for Firmware Updates
  • 12V Universal Power Supply Included

Additional Features

  • 4:2:2 Sampling and color precision
  • HD scaler and SD down-conversion
  • 24-bit, 48 kHz audio sampling
  • Compliant with SMPTE 259M/292M/296M/372M/424M/425M Level A or B/SMPTE ST-2081, and ITU-R BT.656/BT.601 standards

Blackmagic Design CONVMBHS Specs
Video Input 1 x HDMI, Type A
Video Output 2 x 6G-SDI
Multi-Rate Support Auto detection of SD, HD, 3G, or 6G-SDI signals
Reclocking Yes
Audio Input Analog: 2 channels with 1 x 1/4" jack per channel
AES/EBU: 4 channels with 1 x 1/4" jack
Format Support DCI 4K
24p

UHD 4K
3840 x 2160p: 30/29.97/25/24/23.98

HD
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50

SD
NTSC: 525i/59.94
PAL: 625i/50
SDI Compliance SMPTE 259M/292M/296M/372M/424M/425M Level A or B/SMPTE ST-2081
ITU-R BT.656 and ITU-R BT.601
SDI Video Rates Switchable between SD, HD, Ultra HD and DCI 4K
SDI Video Sampling 4:2:2
SDI Color Precision 4:2:2
SDI Color Space YUV
SDI Audio Sampling 24-bit, 48 kHz
SDI Auto Switching Automatically detects SD, HD, or 6G-SDI
HDMI Format Support UHD 4K
3840 x 2160p: 30/29.97/25/24/23.98

HD
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50

SD
NTSC: 525i/59.94
PAL: 625i/50
HDMI Color Space YUV and RGB
HDMI Color Precision 4:2:2
4:4:4
HDCP Compliance No. HDMI input is unable to capture from copy-protected HDMI sources
Format Conversion HD down-conversion
Settings Control Mini switches or USB software
Firmware Upgradeable Via USB
Power Supply 12 VDC
Power Consumption 4.44 W
Operational Voltage Range 12 to 31 VDC
Operating Temperature 32 to 104°F / 0 to 40 °C
Storage Temperature -4 to 113°F / -20 to 45 °C
Relative Humidity 0 to 90% non-condensing
Dimensions 4.49 x 3.63 x 0.90" / 11.40 x 9.22 x 2.29 cm
Weight 8.6 oz / 243.8 g
Packaging Info
Package Weight 1.035 lb
Box Dimensions (LxWxH) 5.9 x 5.6 x 2.6"
