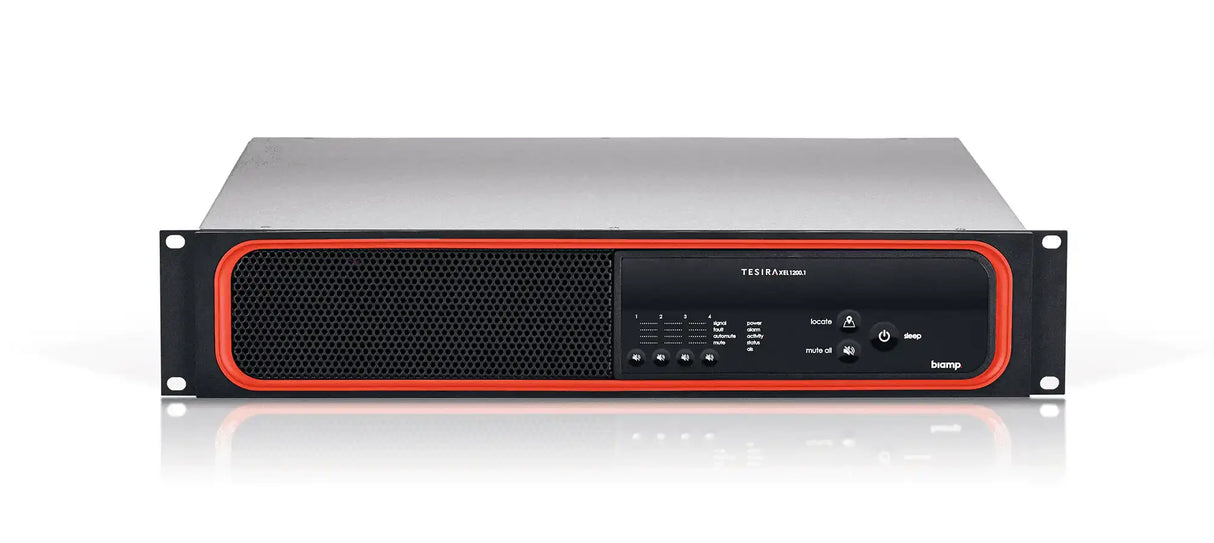

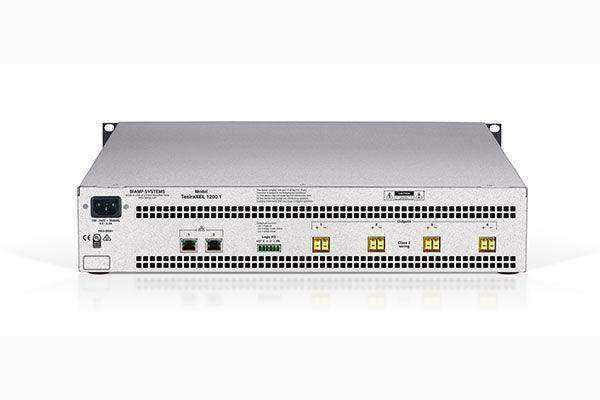

Biamp TesiraXEL™ 1200.1 4 Channel, 1200W Amplifier - 911.0478.900

Description

TesiraXEL™ 1200.1 is an AVB/TSN enabled, digital networked, four-channel amplifier. The 1200.1 delivers extraordinary flexibility — from power distribution, to selectable speaker impedance, to connectivity options, it’s an ideal choice. The 1200.1 leverages a unique power distribution architecture allowing users to distribute 1-100% of available power to any channel. The TesiraXEL 1200.1 also supports both selectable impedance (4Ω, 8Ω, 70V, or 100V) and delay equalization per channel, allowing for maximum design flexibility. To streamline installations, the 1200.1 includes an audible locate function on the front panel to validate connected loudspeaker runs without requiring the amplifier to be configured. The TesiraXEL 1200.1 comes with a software-configurable media interface, allowing designers to choose their preferred network topology — redundancy, daisy chain, single-cable, or separate control and media are all supported. The 1200.1 is ideal for training rooms, lecture halls, performing arts venues, houses of worship or other applications where sound distribution or reinforcement is needed

Features

• 100% asymmetrical loading per channel
• Selectable impedance per channel: 4Ω, 8Ω, 70V, 100V
• Configurable media interface: support for daisy chain, network redundancy, and single cable
• Audible locate available from the front panel
• Auto standby mode
• Supports delay equalization per channel
• Supports port authentication via IEEE 802.1X
• Configurable via Tesira software Rack mountable (2RU)
• CE marked, UL listed, and RoHS compliant
• Covered by Biamp Systems’ five-year warrant
