Biamp Tesira SERVER-IO AVB Configurable I/O DSP with AVB - 911.0301.900

Product Overview

The Biamp Tesira SERVER-IO AVB is a rack-mount configurable I/O digital signal processor for large-scale, networked commercial AV systems. Factory configured with one DSP-2 card and expandable with additional DSP and audio-networking cards, it serves as the central processing engine for enterprise audio across boardrooms, auditoriums, and multi-building campuses. It supports AVB, optional Dante and CobraNet networking, and a wide range of Tesira expanders for a highly scalable rack-mount DSP platform.

Product Description

The Tesira SERVER-IO AVB is a digital network server that anchors a Tesira audio system. It ships with one DSP-2 card and accepts additional DSP-2 cards for expanded processing, plus up to three audio-networking cards in any combination of AVB-1 (AVB), SCM-1 (CobraNet), and DAN-1 (Dante).

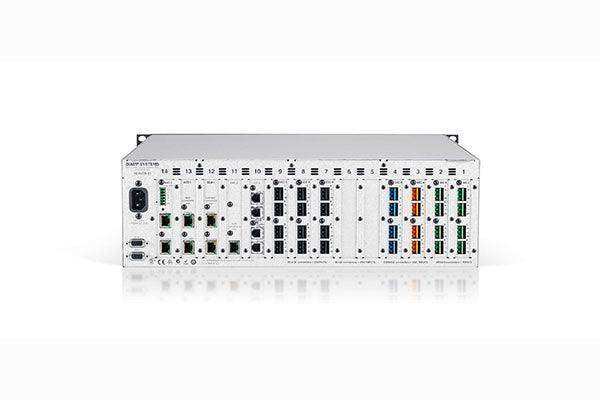

The platform supports up to 12 standard Tesira I/O cards for as many as 48 channels of analog audio I/O — mic/line level, VoIP, and FXO telephone interfaces — and up to 420 x 420 channels of digital I/O over AVB. Optional 32 x 32 CobraNet and 64 x 64 Dante networking let the server bridge into existing audio networks.

Configuration and control are handled through intuitive Tesira software over Ethernet or serial, with a front-panel OLED for device and system status. SpeechSense™ and AmbientSense™ algorithms handle conferencing and ambient-aware processing, and the server can run standalone or with Tesira expanders to scale across a building or campus.

Key Features

• Modular DSP expansion — Ships with one DSP-2 card and accepts additional cards to grow processing capacity as the system scales.
• Flexible audio networking — Supports AVB plus optional Dante (64 x 64) and CobraNet (32 x 32) for integration into existing networks.
• High channel count — Up to 12 Tesira I/O cards for 48 channels of analog I/O and up to 420 x 420 channels over AVB.
• SpeechSense & AmbientSense — Built-in algorithms optimize conferencing intelligibility and ambient-aware level control.

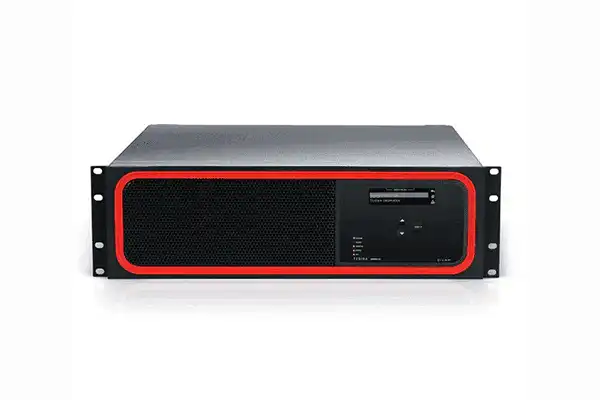

• Front-panel OLED — Provides at-a-glance device and system information for faster commissioning and service.
• Rack-mount, standards-compliant — 3RU chassis, CE marked, UL listed, and RoHS compliant for commercial deployments.

Typical Applications

• Auditorium
• Multi-purpose room
• Government space
• Broadcast studio
• All-hands room

Technical Specifications

Competitor Comparison

Frequently Asked Questions

What is the difference between the SERVER and SERVER-IO?
Both are configurable Tesira DSP servers built on the same card-cage platform. The SERVER-IO emphasizes onboard I/O card capacity, while networking and DSP expansion options are shared across the family. Confirm the exact card complement for your design.

Which audio networks does it support?
Native AVB, with optional CobraNet (32 x 32) and Dante (64 x 64) via add-in networking cards.

How is it configured?
Through Biamp's Tesira software over Ethernet or serial; a front-panel OLED shows device and system status.

Can it scale across multiple rooms or buildings?
Yes. The server runs standalone or with Tesira expanders to build a scalable audio network across a building or campus.

What warranty applies?
It is covered by Biamp's five-year warranty.
