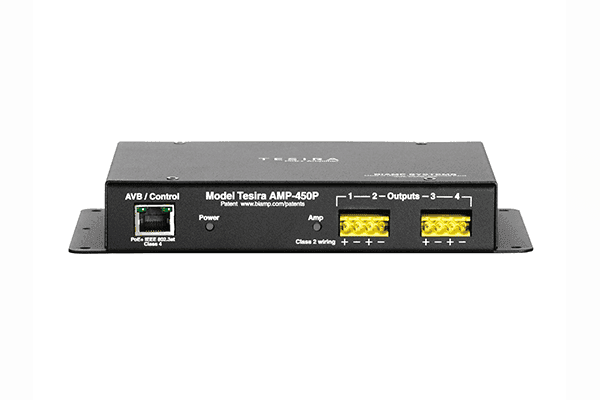

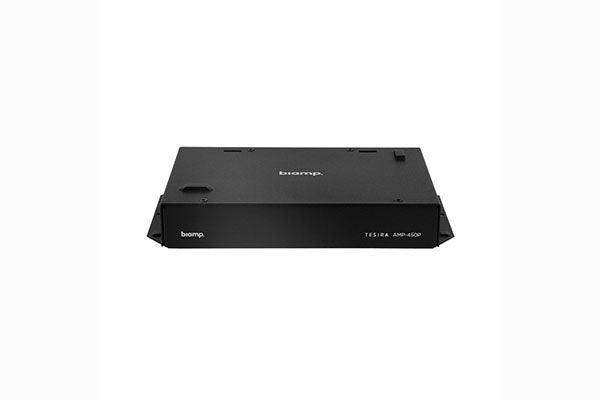

Biamp Tesira AMP-450P 4 Channel PoE+ Conferencing Amplifier - 911.0010.900

BiampSKU: 911.0010.900
No reviews

Price:
Sale price$970.00

Description

The Tesira AMP-450BP is an AVB/TSN enabled, four-channel PoE+ conferencing amplifier for use with the desono C-IC6 ceiling speaker. Capable of mounting directly to the back of the speaker, this amplifier greatly reduces cost by minimizing the cabling between the ceiling devices and the rack room. Each AMP-450BP comes with an optional mechanical enclosure to protect electrical connections and comply with code requirements for above ceiling installations. Tightly integrated with our other Tesira conferencing products, Biamp is providing the only AV end-to-end solution of microphone-to-speaker with standard CAT cables. The result is a conferencing system that is fast to deploy and provides a superior audio experience. The Tesira AMP-450BP is capable of operating in a burst mode to handle peak signals, providing up to 50 watts or 30 watts per channel.

  • Four channels with burst mode to handle peak signals; supports up to 50W (4Ω) or 30W (8Ω) per channel
  • Designed to fit on top of C-IC6 speaker via backpack or mounted separately
  • Powered by PoE+ (IEEE 802.3at Class 4, 30W)
  • Class D amplifier topology
  • Four RJ-45 output jacks
  • Audible locate button
  • Software-selectable power vs. channel count
  • Includes internal limiter function
  • Fanless operation
  • Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces
  • LED indicators for power/status and amp status
  • Configurable via Tesira software
  • CE marked, UL listed, and RoHS compliant
  • Covered by Biamp Systems’ five-year warranty

Data Sheet

Number of Channels 4
THD + N (20Hz-20kHz, at Continuous Power) <0.3%
Frequency Response +/-1 dB 20 Hz to 20kHz
Dynamic Range 90 dB, 20 Hz to 20 kHz BW
Amplifier Topology Class D
Cooling Convection
Environmental Ambient Operating Temperature: 32-104° F (0-40° C)
Humidity: 95%, Non-Condensing
Compliance FCC Part 15B (USA)
UL and C-UL listed (USA and Canada)
CE Marked (Europe)
RoHS Directive (Europe)
Dimensions (H x W x D) 1.2" (30 mm) x 7.7" (195 mm) x 4.7" (120 mm)
Weight 1.5 lbs (0.7 kg)
