Biamp Commercial REVAMP2150 Stereo Digital amplifier, convection cooled - 911.0654.900
Biamp Commercial REVAMP2150 Stereo Digital amplifier, convection cooled - 911.0654.900 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Biamp Commercial REVAMP2150 Stereo Digital amplifier, convection co...
Product Overview
The Biamp Commercial REVAMP2150 is a professional 2-channel digital power amplifier delivering 2 x 165 watts dynamic output at 4 ohms, and it can be bridged into a single 330-watt amplifier at 8 ohms. This Class-D amplifier is convection-cooled with no built-in fans, so it operates noiselessly and stays dust-free. It includes multiple speaker and amplifier protection circuits for DC, over-current, over-temperature, and input-overload protection.
Product Description

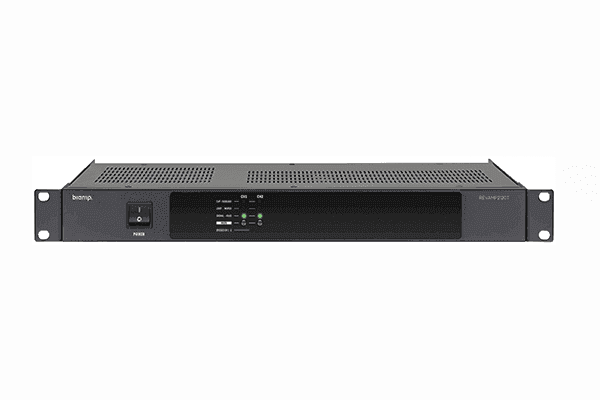

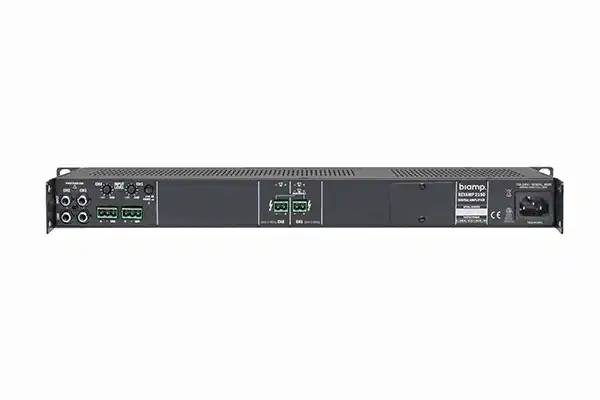

The REVAMP2150 offers versatile connectivity with balanced and unbalanced inputs on Euroblock or cinch, pass-through outputs on cinch, and loudspeaker output on Euroblock. A rear clip LED indicator assists with input-gain configuration during installation. Housed in a slim, lightweight 1U design without front controls, it is intended for the small and mid-sized fixed-install audio market. This is a low-impedance amplifier and is not rated for 70V operation.
Key Features
- 2 x 165W dynamic output — The amplifier delivers 2 x 165 watts dynamic output at 4 ohms, bridgeable to 330 watts at 8 ohms.
- Class-D topology — A Class-D design provides efficient amplification in a slim, lightweight 1U chassis.
- Convection cooling — The fanless design operates noiselessly and stays dust-free.
- Protection circuits — DC, over-current, over-temperature, and input-overload protection guard the amplifier and speakers.
- Versatile connectivity — Balanced and unbalanced inputs on Euroblock or cinch with pass-through outputs.
- Clip LED indicator — A rear clip LED indicator aids input-gain configuration during setup.
- Five-year warranty — The REVAMP2150 is covered by Biamp Systems' five-year warranty.
Typical Applications
The REVAMP2150 suits commercial meeting spaces, multi-purpose rooms, and broadcast studios using low-impedance loudspeaker systems.
Technical Specifications
| Output channels | 2 |
| RMS output power (4 ohms) | 2 x 150 watts |
| RMS output power (8 ohms) | 2 x 80 watts |
| Dynamic output power (4 ohms) | 2 x 165 watts |
| RMS output bridged (8 ohms) | 300 watts |
| Dynamic output bridged (8 ohms) | 330 watts |
| Minimum impedance per channel | 4 ohms |
| Minimum impedance bridged | 8 ohms |
| Power amp topology | Class-D |
| Line inputs | 2 balanced, 2 unbalanced |
| Channel separation | > 70 dB @ 1 kHz |
| Frequency response | 20 Hz - 22 kHz |
| 70V operation | No (low impedance) |
| Power supply | 115 - 230 VAC, switching mode |
| Power consumption (max) | 400 watts |
| Cooling | Convection |
| Mounting | 19-inch rack, 1U (1.73 in high) |
| Weight | 11.24 lbs |
| Warranty | Biamp Systems five-year warranty |
Frequently Asked Questions
How much power does the REVAMP2150 deliver?
It delivers 2 x 165 watts dynamic output at 4 ohms and can be bridged to 330 watts at 8 ohms.
Does the REVAMP2150 support 70V systems?
No. The REVAMP2150 is a low-impedance amplifier and is not rated for 70V operation.
Is it fan-cooled?
No. It is convection-cooled without built-in fans, so it operates noiselessly and stays dust-free.
