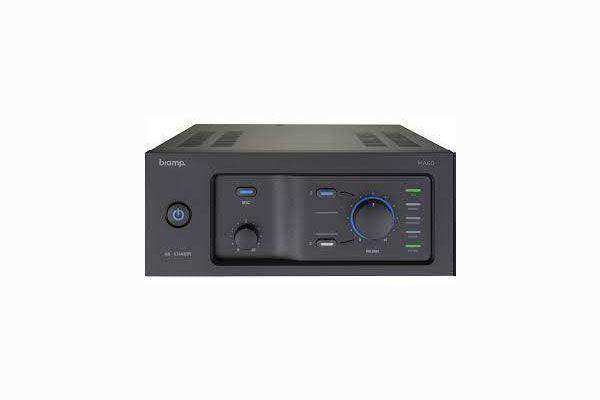

The MA60 is a half-rack, 60W single channel mixing amplifier. Designed for ease of use, the front panel of the MA60 includes volume and microphone controls, providing immediate visual feedback regarding system operation. The MA60 is equipped with four priority levels for audio routing: one emergency input, one paging input, one mic/line input, and two stereo line, mono summed inputs. It’s audio performance,
ease-of-use, and versatile feature set makes the MA60 ideal for a variety of professional audio applications.
FEATURES
• Single channel; 60 watts of continuous power
• Supports 4Ω and 70V/100V outputs
• Class D amplifier topology

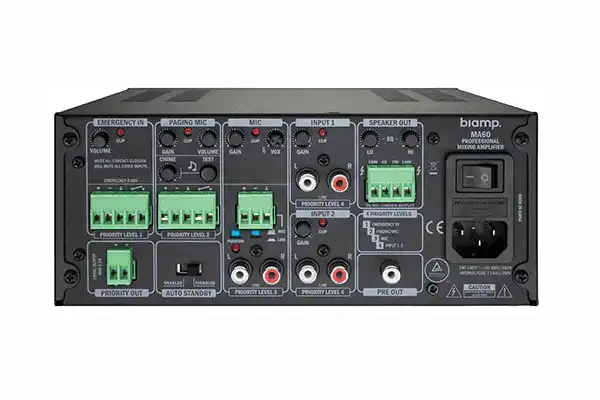

• Intuitive front and rear panels
• Four priority levels for audio routing
• 24V priority output overrides local volume controls
• Dedicated emergency input with mute all switch
• Paging mic input with contact closure and chime
• One mic/line level input with 48V phantom power
• Two stereo inputs
• Fanless operation
• Internal universal power supply
• Auto standby mode
• Rack mountable (2RU) with optional accessory
• CE marked, UL listed, and RoHS compliant
• Covered by Biamp Systems’ five-year warranty
Data Sheet
| Power supply |
100 - 240 VAC |
| Output power RMS 70 volts watts |
60 |
| Output power RMS 4 ohms watts |
60 |
| Minimum impedance load ohms |
4 |
| MIC inputs balanced |
2 |
| Priority switch |
2 |
| Tone control |
Yes |
| Chime |
Yes |
| Priority output |
Yes |
| Frequency response (in Hz) |
60 - 20 k |
| Power amp topology |
Class-D |
| Low impedance |
Yes |
| Cooling system |
Convection |
| Depth (incl front) in. |
9.84 |
| Net weight product (lb.) |
5.73 |
| Power consumption (max) watts |
100 |
| Zone outputs |
Yes |
|
Dynamic output power 70 volts watts
|
60 |
| Output power tappings |
70 volts - 4 ohms |
| Inputs with Phantom power |
Yes |
| Line input unbalanced |
2 |
| VOX mute |
Yes |
| Emergency input |
Yes |
| Priority levels |
4 |
| Applicable in 70V |
Yes |
| Applicable low impedance |
Yes |
| 70 volt |
Yes |
| Depth (build in) in. |
9.45 |
| Height- rack units (1U=1.73 in) U |
2 |
