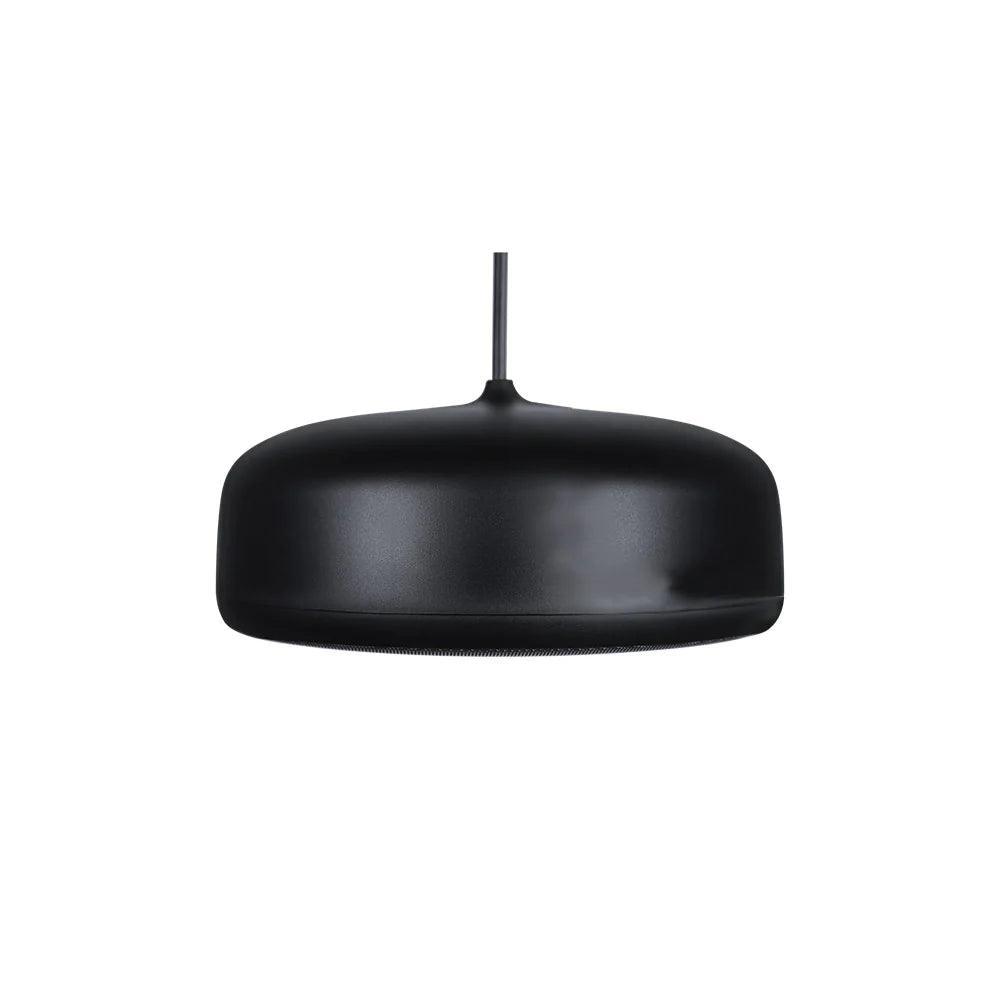

Biamp Desono P6-SM Pendant, Indoor/Outdoor 6.5" Coaxial Loudspeaker, Sunshine Profile (Pair, Black) - 911.0923.900

Biamp SKU: 911.0923.900
No reviews

Sale price$928.00

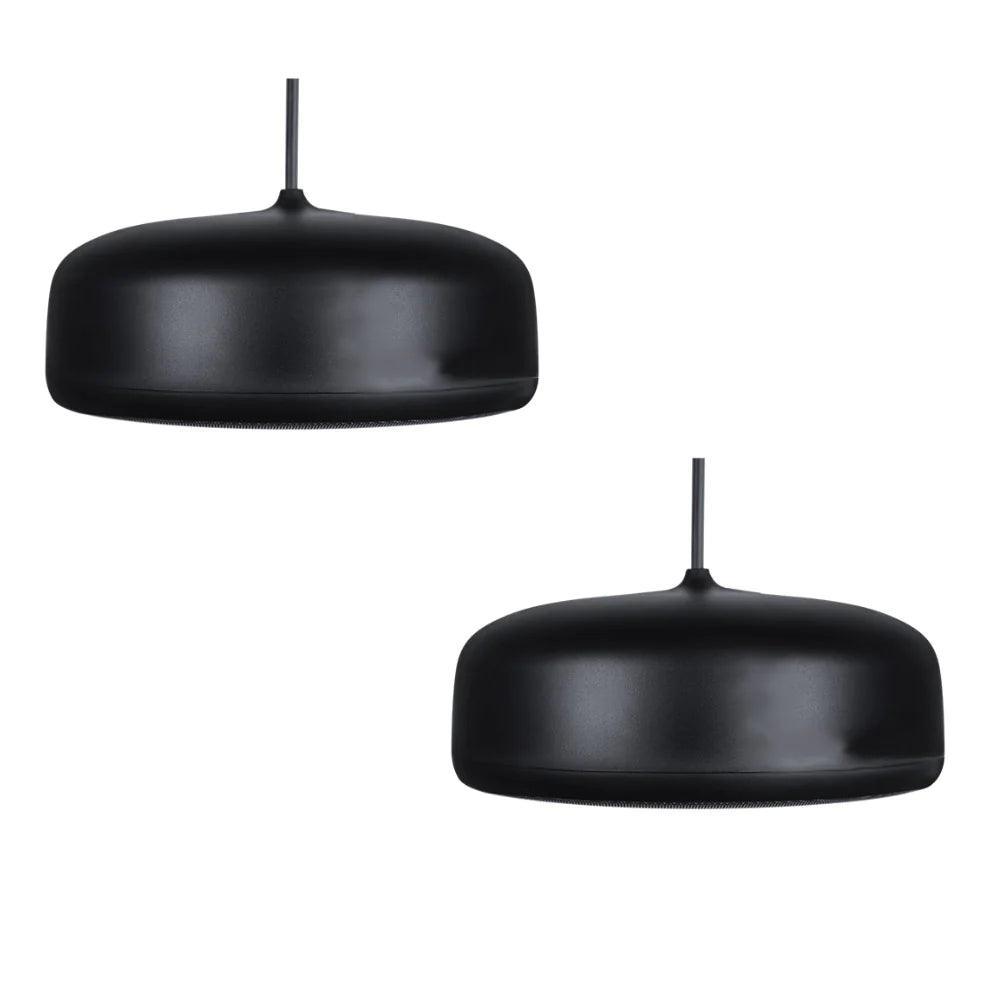

Sold as a pair, Desono™ P6-SM is a low-profile, two-way passive coaxial loudspeaker intended for full range music reproduction in distributed audio applications. It delivers high intelligibility coupled with a wide coverage area, allowing system designers to use fewer speakers while maintaining superior levels of speech intelligibility.

The P6-SM utilizes a 6-position switchable transformer ranging from 1.875W to 60W with low-impedance bypass for 70V/100V operation, making it an excellent choice for large areas of BGM.

Designed with the installer in mind, the P6-SM also comes pre-terminated with Magic Cable, a composite cable comprised of two aircraft cables, two audio conductors jacketed separately, and two ripcords for slicing through the cable jackets.

Desono P6-SM is designed for outdoor splash applications such as patios or concourses, and an ideal choice for both indoor and outdoor distributed audio applications that demand superior speech intelligibility and full range music reproduction.

  • Low-profile 'sunshine' form factor
  • 6-ohm nominal impedance
  • 90° coverage angle
  • 6-position constant voltage tap (1.875W, 3.75W, 7.5W, 15W, 30W, 60W) with low impedance bypass
  • Bridge-mounted 1-inch (25mm) soft dome tweeter
  • 6.5-inch (165mm) polypropylene woofer mechanically isolated from the high frequency driver
  • CE marked, UL listed, and RoHS compliant
  • Covered by Biamp Systems' five-year warranty

Product Specs

Operating Mode Passive with DSP
Operating Environment Indoor/Outdoor (splash applications only)
Operating Range 75 Hz to 18.5 kHz (-10dB)
Nominal Beamwidth (H x V) 90°, conical
Transducers LF 1 x 6.5" (165 mm) polypropylene cone
HF 1 x 1" (25 mm) soft dome
Continuous Power Handling @ Nominal Impedance 19V 60W @ 6 ohms (240W peak)
Nominal Sensitivity @ 1m @ 1W 87 dB
@ 2.83V 88 dB
Nominal Maximum SPL @ 1m Peak 111dB
Continuous 105 dB
Transformer 70V: 60W, 30W, 15W, 7.5W, 3.75W, 1.875W
100V: 60W, 30W, 15W, 7.5W, 3.75W
Required Accessories 80 Hz, 12dB/Oct high pass fllter
Recommended Amplifiers 60W - 120W @ 6 ohms (19V-27V)
Input Connection Pre-terminated inside housing
Controls Two pre-terminated aircraft cables (one as primary support, one as a safety cable), and Griplock cable fasteners
14 feet (4.3 m) of pre-terminated Magic Cable
Compliance ETL listed to comply with UL 1480A, Certified to CSA C22.2#62368-1 and CSA C22.2#60950-22 Cable listed to comply with UL 13, Class 3 Indoor/Outdoor rated
Suspension system and Griplock cable fasteners listed per UL1598 and UL2239, TUV and CSA Class 3426-01 and Class 3426-8.
Dimensions H x Dia 5.5" x 11.5" (139 mm x 292 mm)
Weight 11 lbs (5 kg)
Finish PC/ABS V-0 plastic, matte finish Black or White
Grille Powder-coated perforated steel Black or White
Accessories (included) Two Griplock cable fasteners
Magic Cable Aircraft Cables (2): 0.0625" (1.6mm) dia. stainless steel, 7x7 stranding, safe working load per cable 480 lbs (218kg), meets US Fed Standard RR-W-410H
Electrical Conductors (2): copper, AWG 18 (0.75mm2), 19/30 stranded
Outer Jacket: UV & moisture resistant PVC, WL-1 fire-rated
General: O.D. 0.33" (8.5mm), minimum bend radius 2" (51mm), meets UL13 requirements for indoor/outdoor use
Accessories (optional) MC-SK10 inline splice kits; MC-PHK16-12PK pendant hang kits
