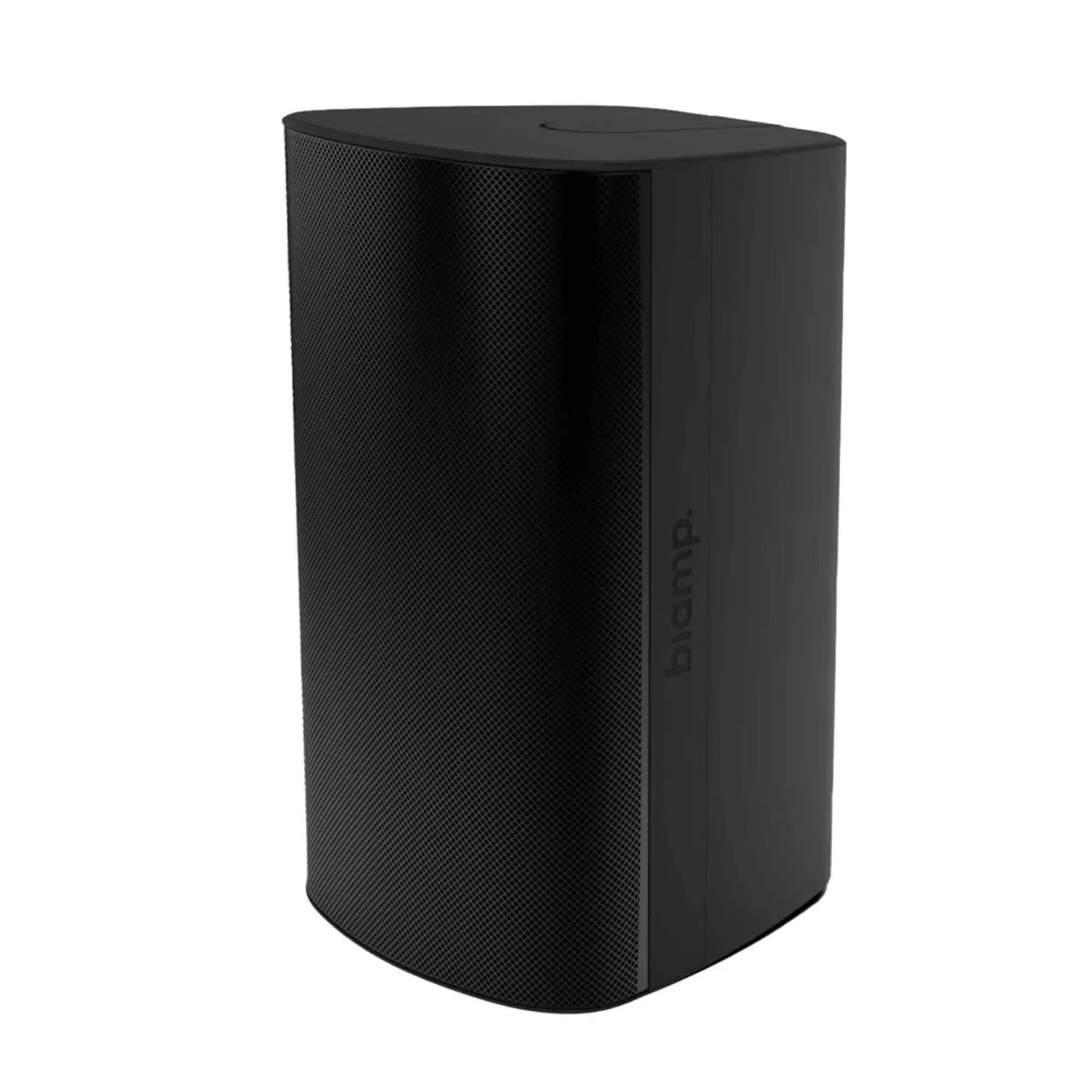

Biamp Desono EX-S10SUB-CM 10” Subwoofer Surface Mount Indoor/Outdoor Loudspeaker. 8 Ohm operation, included ClickMount pan-tilt mounting bracket (Black) - 911.1822.900
Roll over image to zoom in Click on image to zoom
Biamp Desono EX-S10SUB-CM 10” Subwoofer Surface Mount Indoor/Outdoor Loudspeaker. 8 Ohm operation, included ClickMount pan-tilt mounting bracket (Black) - 911.1822.900
Product Questions? Ask Our Experts!
Tel: 888.230.3661 sales@creationnetworks.net Contact us today for quantity & package discounts!

Biamp Desono EX-S10SUB-CM 10” Subwoofer Surface Mount Indoor/Outdoor Loudspeaker. 8 Ohm operation, included ClickMount pan-tilt mounting bracket (Black) - 911.1822.900

Biamp SKU: 911.1822.900
No reviews
Price:
$970.00

Description

The Desono EX-S10SUB, 10 inch subwoofer provides additional deep base to the EX-S6 or EX-S8 systems for full-range, foreground music playback. With its discreet matching enclosure, EX-S10SUB easily blends in the background of an application, making it easy to hear, but difficult to spot.

Designed for easy and fast installation, our innovative, patented ClickMount™ brackets provide installers with two distinct mounting options. The ClickMount pan-tilt bracket provides indexed aiming control and allows for mounting EX Series quickly in either vertical or horizontal orientation without moving the bracket position. The ClickMount U-Bracket is also available for low profile mounting or exterior use and includes the ClickPlug with an integrated gland nut for weather-resistant applications. Both brackets are theft and tamper resistant.

  • Exceptional audio clarity with discreet styling
  • Easy to install with two mounting options
  • Low frequency boost for distributed applications
  • ETL listed to comply with UL 1480A, CSA 62368-1, CE marked, and RoHS compliant

Product Specs

Operating Mode Passive, low impedance
Operating Environment Indoor/Outdoor
Operating Range (-10dB) 38 Hz to 140 Hz
Nominal Beamwidth (H x V) Omnidirectional
Transducers LF 1 x 10" (250 mm) treated paper cone
Sensitivity @ 1 m 89 dB (2.83 V)
89 dB (1 W, 8 Ω nominal impedance)
Nominal Continuous Power Handling 49 V (300 W, 8 Ω)
Nominal Maximum SPL (Processed) @ 1 m UXO 80 Hz: Continuous 112 dB Peak 118 dB
UXO 125 Hz: Continuous 113 dB Peak 119 dB
Rated Continuous Voltage 39.8 V (32 dBV)
Rated Maximum SPL (Processed) @ 1 m UXO 80 Hz: Continuous 110 dB Peak 122 dB
UXO 125 Hz: Continuous 111 dB Peak 123 dB
Required Processing 35 Hz, 18 dB high-pass filter; DSP preset
Recommended Amplifiers 300 W - 600 W, 8 Ω (49 V - 69 V)
Input Connection Lever-actuated wire clamping 4-position terminal block with pass-through
Controls None
Mounting Provisions ClickMount pan-tilt bracket or ClickMount U-Bracket
Compliance ETL listed to comply with UL 1480A, CSA STD C22.2# 62368-1
Environmental Rating IP54 per IEC 60529, IEC 60068-2-5 (Solar Radiation)
IEC 60068-2-11 (Salt Mist), IEC 60068-2-42 (SO2)
IEC 60068-2-60 (Chlorine)
Dimensions H x W x D 529  mm x 310 mm x 312  mm [20.8" x 12.2" x 12.3"]
Weight (loudspeaker only) 12.8 kg [28.26 lbs]
Finish High-impact UL94 5VB rated polycarbonate/ABS blend, painted UV resistant matte finish
Bracket: Heavily reinforced glass-filled nylon with UV-resistant painted matte finish cover
Color: Black (RAL 9017) or White (RAL 9016)
Grille Powder-coated perforated Marine Grade aluminum backed with hydrophobic cloth
Black or White
Models (Order by mounting option) EX-S10SUB-CM [-B,-W] - loudspeaker with large ClickMount pan-tilt bracket
EX-S10SUB-UB [-B,-W] - loudspeaker with ClickMount U-Bracket and ClickPlug
Options CMX-LG [-B,-W] - Large ClickMount Pan-tilt Bracket Kit
EXUB-S10 [-B,-W] - EX-S10 ClickMount U-Bracket kit
