Biamp Community IS6-215 Medium Power Dual 15-Inch Subwoofer (White) - 911.1137.900

Biamp SKU: 911.1137.900
No reviews

Price:
Sale price$3,412.00

Description

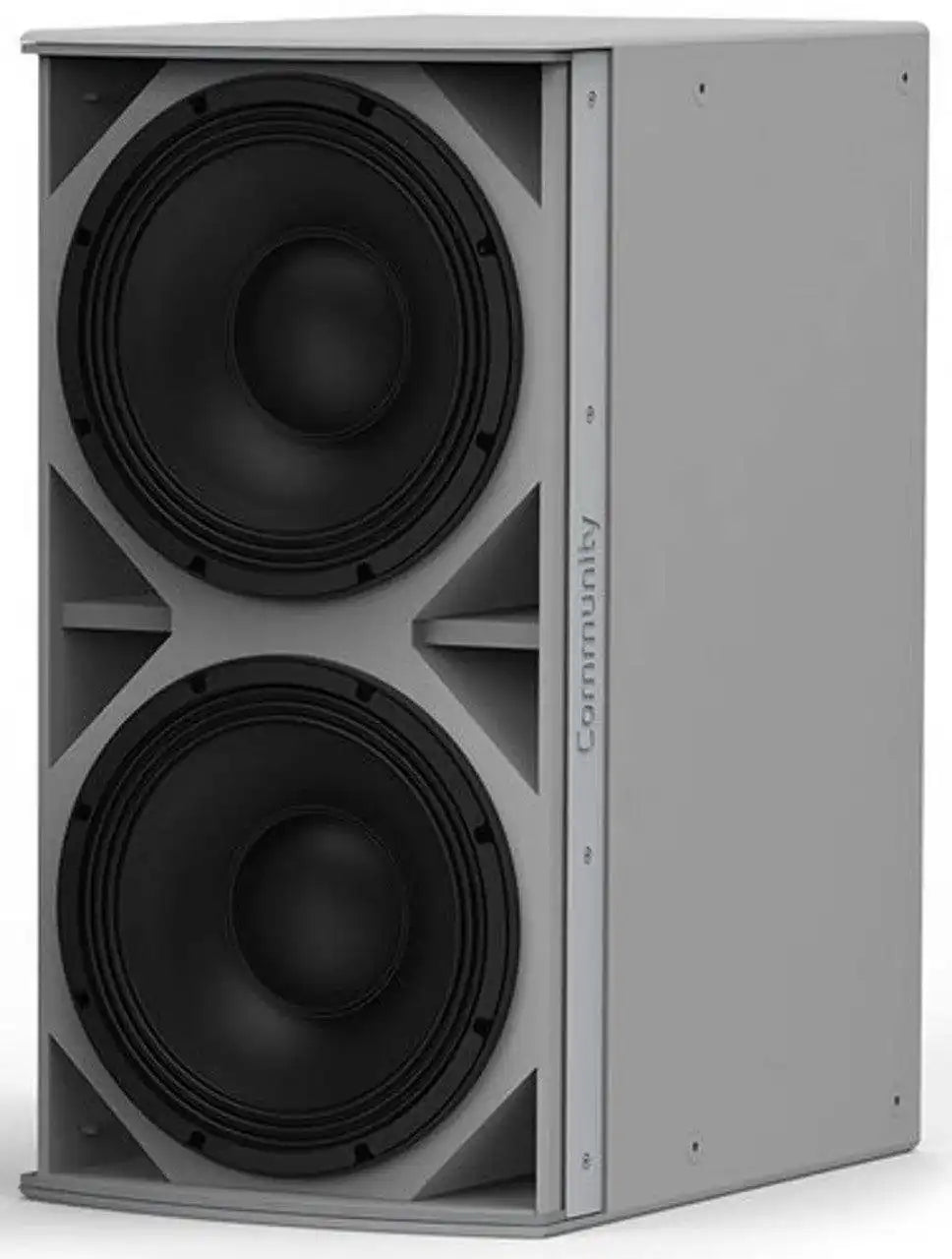

The Community IS6-215 is an I Series Subwoofer 600 dual 15" 1400W (4 Ohms) passive installation subwoofer. It's a subwoofer that is well-suited for a range of applications, such as houses of worship, auditoriums, restaurants, meeting rooms, corporate A/V systems, arenas, stadiums, or any other application where extended low-frequency reinforcement is required.

I Series Subwoofer 600 loudspeakers provide remarkable acoustic performance, modular flexibility, and elegant aesthetics for use in contemporary performance venues. Designed and built to support the goals of systems integrators and consultants both acoustically and mechanically, I Series Subwoofers provide a broad range of sizes and capabilities that can be specifically matched to the needs of any modern venue.

Each cabinet was carefully designed to provide matching heights, face widths and suspension point locations for seamless integration into flown arrays with I Series full-range models. The broad selection of optional low profile fly rails, fly frames and modular array brackets reduces design and installation time while also providing improved aesthetics and nearly limitless integration possibilities.

It's a compact, direct radiating subwoofer with large, balanced ports that provide optimal enclosure tuning and even air pressure distribution to the driver cones, so it reduces distortion and extends system longevity. Drivers are loaded into individual air volumes within the enclosure, isolating their performance from one another. This arrangement not only provides additional protection to drivers in case of failures, but also allows the designer to implement directional subwoofer techniques, like steered end-fire arrays and cardioid patterns, within a single enclosure when using any I Series dual driver subwoofer model.

Applications

  • Small to Medium Size Venues:
    • Houses of Worship
    • Auditoriums
    • Restaurants
    • Meeting Rooms
    • Theaters
    • Corporate A/V Systems
  • Larger Size Venues:
    • Arenas
    • Stadiums
    • Night Clubs
    • Theaters
    • Themed Entertainment
    • Larger Houses of Worship
  • Long excursion ferrite LF drivers with FEA-optimized motors and symmetric movement suspension
  • Matched-size enclosure and aligned suspension point for seamless flown array integration
  • 1400W continuous power handling (5600W peak)
  • High sensitivity design minimizes power compression losses and required amplifier size
  • Isolated driver air volumes allow use of directional steering techniques within a single enclosure
  • Operating Mode: Single or Dual Amp
  • Operating Environment: Indoor
  • Operating Range: 37 Hz - 145 Hz
  • Transducers: 2x 15" (381 mm) double-treated cones with 4" (102 mm) inner/outer wound voice coil, ferrite construction
  • Continuous Power Handling @ Nominal Impedance:
    • Single Amp, 75V: 1400W @ 4 Ohms (5600W peak)
    • Dual Amp, 75V: 700W @ 8 Ohms (2800W peak) each
  • Nominal Sensitivity:
    • Half Space: 105dB @ 1W; 108dB @ 2.83V
    • Whole Space: 99dB @ 1W; 102dB @ 2.83V
  • Nominal Maximum SPL:
    • Half Space: 136dB continuous; 142dB peak
    • Whole Space: 130dB continuous; 136dB peak
  • Equalized Sensitivity:
    • Half Space: 102dB @ 1W; 105dB @ 2.83V
    • Whole Space: 96dB @ 1W; 99dB @ 2.83V
  • Equalized Maximum SPL:
    • Half Space: 133dB continuous; 139dB peak
    • Whole Space: 127dB continuous; 133dB peak
  • Recommended Amplifiers:
    • Single Amp: 1400W - 2800W @ 4 Ohms (75V - 106V)
    • Dual Amp: 700W - 1400W @ 8 Ohms (75V - 106V) each driver
  • Physical:
    • Dimensions (HxWxD): 39.00" x 16.50" x 23.35" (991 x 419 x 593 mm)
    • Weight:
      • Product: 126 lbs (57.2 kg)
      • Shipping: 147 lbs (66.7 kg)
    • Finish: Black low gloss, uniformly textured painted 15mm Baltic Birch plywood with powder-coated steel grille
    • Input Connection: (2) 4-position screw terminal blocks
    • Mounting Points: (24) M10 threaded rigging points
    • Environmental: IPX4 per IEC 60529, designed in accordance wtih MIL-STD-810G
